Partiron

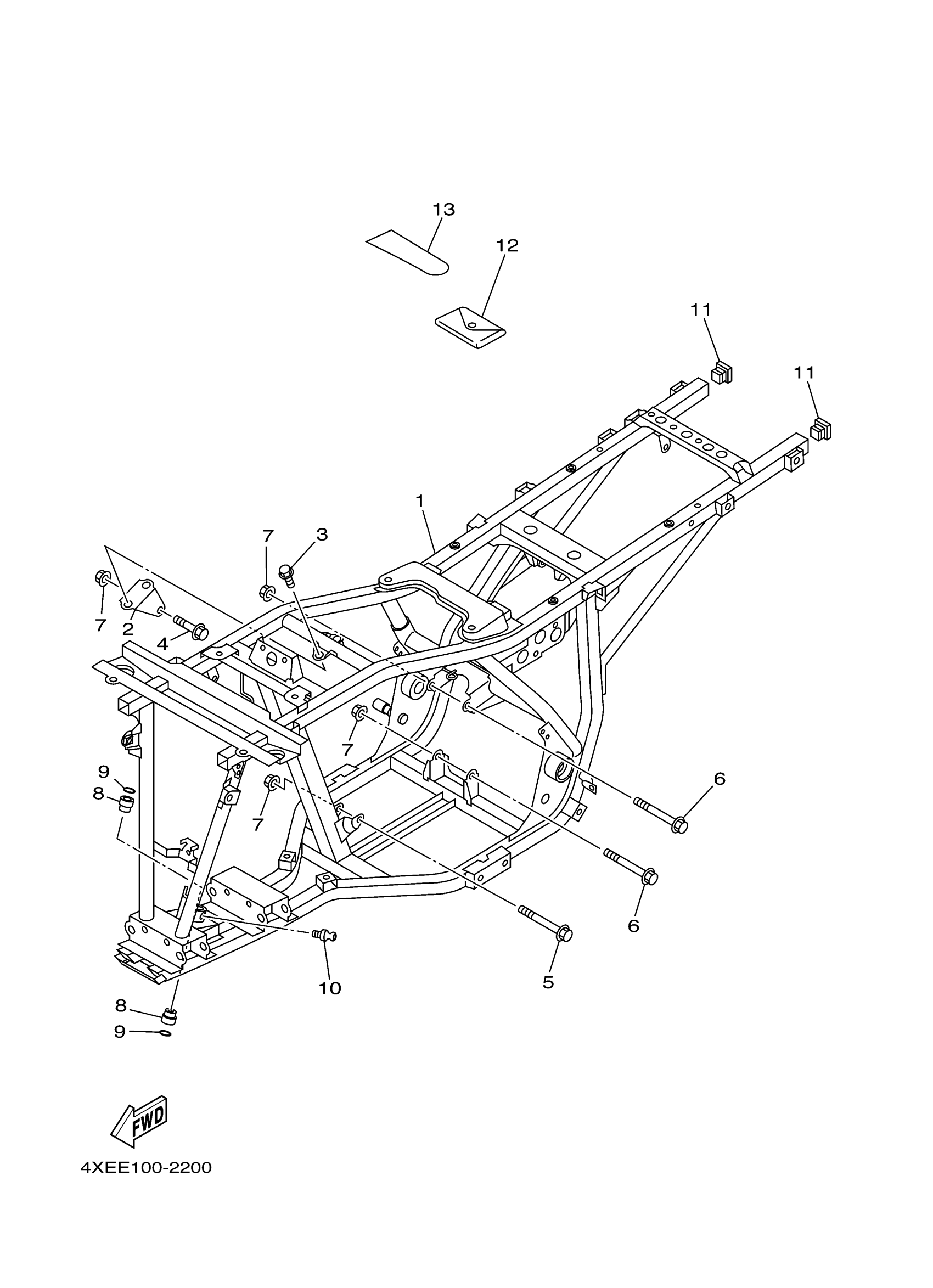

Yamaha YFM250XR (BEAR TRACKER) 4XEH 2003 FRAME Diagram

#

Description
Price

1

FRAME

4XE-F1110-17-00

Unavailable

2

STAY, ENGINE 2

4XE-F1315-01-00

Unavailable

3

BOLT, FLANGE

95817-08012-00

$3.71

4

BOLT, FLANGE

90105-088A7-00

$3.53

5

BOLT, FLANGE

90105-088A8-00

Unavailable

6

BOLT, FLANGE

90105-088A9-00

$16.34

7

NUT, SELF-LOCKING

90185-08017-00

$6.27

8

BUSH, SOLID (J22)

90381-15040-00

$21.97

9

O-RING (22U)

93210-15566-00

$5.39

10

NIPPLE, GREASE

93700-06M03-00

$7.40

11

. CAP, MAIN PIPE

5FU-F111A-00-00

$4.82

12

TOOL KIT

5ND-F8100-00-00

$19.27

13

GAUGE, AIR

1NV-2811A-01-00

$47.13
