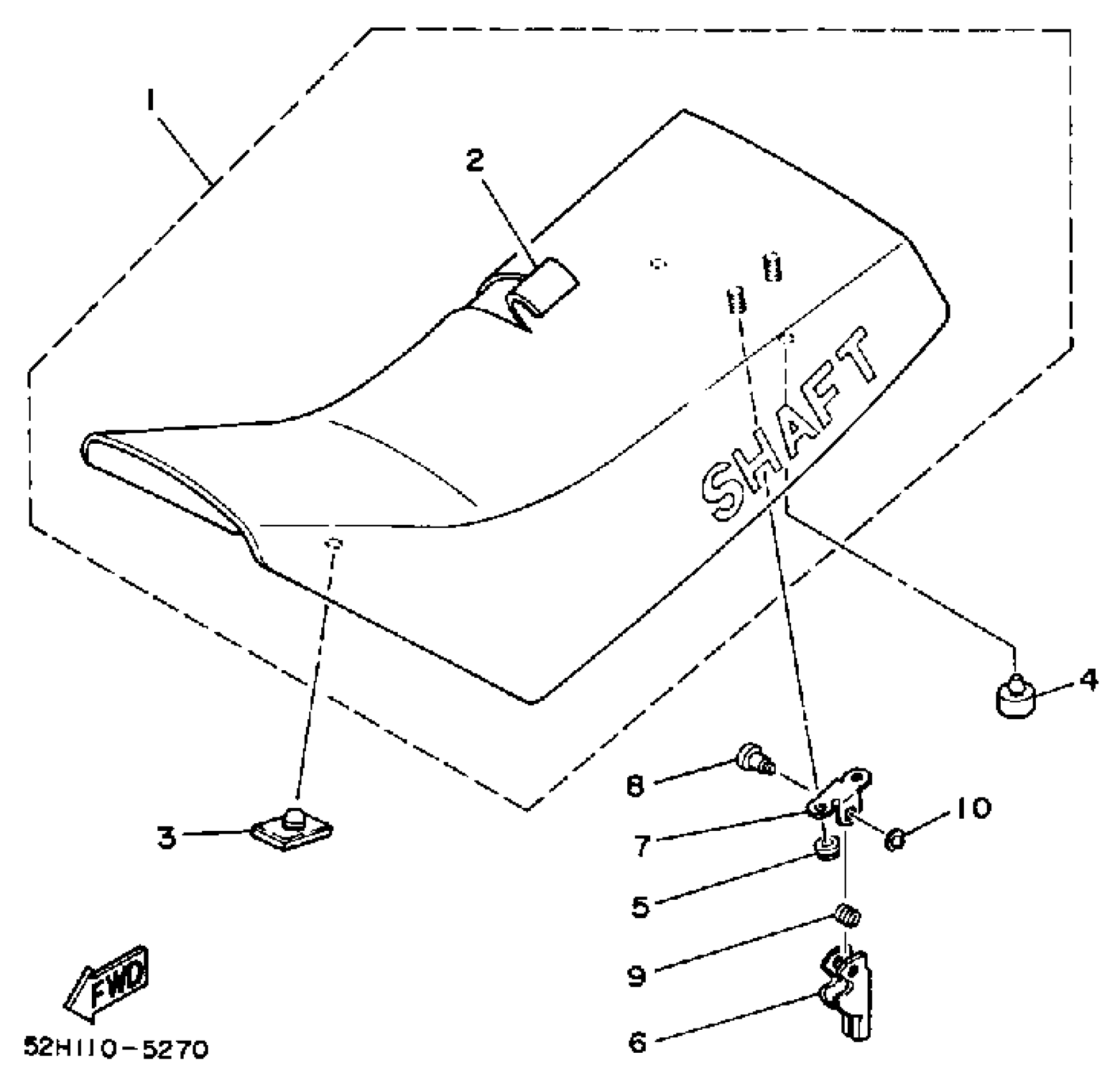

Yamaha YFM200N (MOTO-4) 1985 SEAT Diagram

#

Description

Price

1

SINGLE SEAT ASSY

3GC-24710-00-00

Unavailable

2

COVER,SINGLE SEAT

3GC-24711-00-00

Unavailable

3

DAMPER, SEAT

509-24724-00-00

$8.84

4

STOPPER, MAIN STAND

371-27114-00-00

$5.42

5

NUT, FLANGE(7NB)

95780-06500-00

$1.88

6

LEVER, SEAT

29U-24776-00-00

Unavailable

7

BRACKET, SEAT LEVER

4K0-24775-00-00

Unavailable

8

PIN

4K0-24774-01-00

Unavailable

9

SPRING, TORSION (24W)

90508-20454-00

Unavailable

10

CIRCLIP (EU0)

99080-04600-00

$1.70
