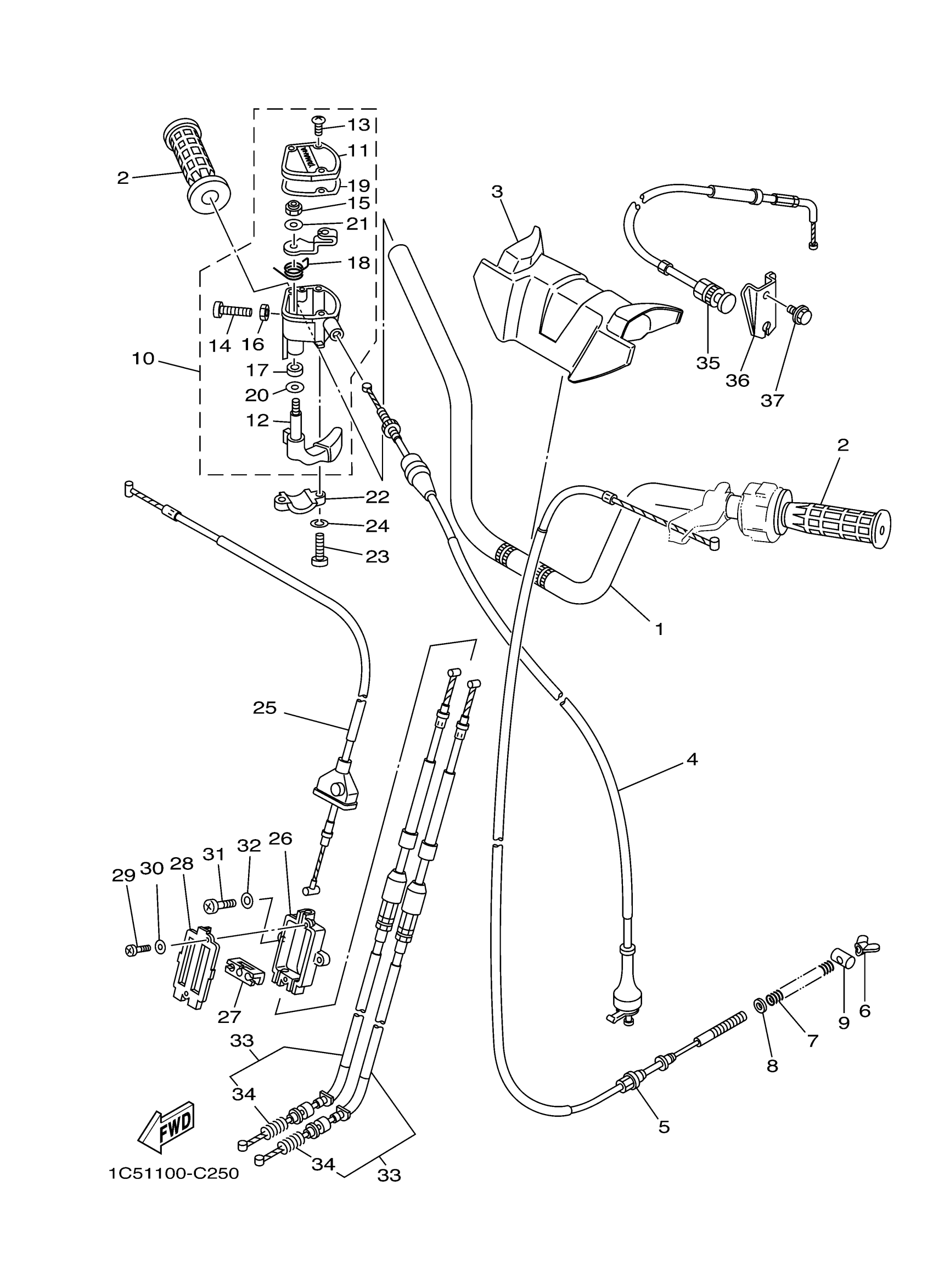

Yamaha YFM125GW (GRIZZLY 125) 1C5D 2007 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

3FA-26111-20-00

Unavailable

2

GRIP (L.H)

3GB-26241-00-00

$19.00

3

PROTECTOR, HANDLEBAR

1C5-26124-00-00

$28.02

4

WIRE, THROTTLE 1

3FA-26311-11-00

Unavailable

5

CABLE, BRAKE

3FA-26351-03-00

$36.18

6

NUT, WING (1K5)

90175-06013-00

$4.11

7

SPRING, COMPRESSION(1YU)

90501-122E1-00

$2.12

8

WASHER, PLATE(2EX)

90202-08175-00

$4.63

9

PIN 1562723700

90249-12008-00

$4.70

10

THROTTLE LEVER ASSY

4KB-26250-12-00

Unavailable

11

CAP, GEAR

4KB-2628F-10-00

$24.74

12

LEVER, THROTTLE

1NV-2625G-02-00

Unavailable

13

SCREW(3HE)

90149-04278-00

$0.74

14

SCREW, PAN HEAD

98517-05020-00

$1.35

15

NUT, U

95617-05100-00

$6.68

16

NUT, HEXAGON SMALL

95317-05700-00

$6.18

17

OIL SEAL (9X15X4-256)

93104-09025-00

$5.46

18

SPRING

1NV-26304-00-00

$11.17

19

GASKET

4KB-2628G-00-00

$10.63

20

WASHER

1NV-26129-00-00

$6.43

21

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

22

HOLDER, LEVER LOWER

4V4-82913-00-00

$23.09

23

SCREW, PAN HEAD

98517-05020-00

$1.35

24

WASHER(3SX)

92907-05100-00

$6.18

25

CABLE, BRAKE 4

3FA-26373-00-00

$24.60

26

HOUSING, BRAKE LINK

52H-26371-00-00

$34.63

27

JOINT, CABLE

52H-26347-01-00

$34.23

28

PLATE

52H-2631G-00-00

$21.35

29

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.74

30

WASHER(3SX)

92907-03600-00

$6.69

31

SCREW, PAN HEAD(JJ6)

98507-05016-00

$1.40

32

WASHER(1RW)

92907-05600-00

$0.78

33

CABLE, BRAKE

3FA-26361-01-00

Unavailable

34

SPRING (2N3)

90501-08511-00

$2.48

35

CABLE, STARTER 1

3FA-26331-02-00

Unavailable

36

HOLDER

1C5-26393-00-00

Unavailable

37

BOLT, FLANGE

95817-06010-00

$3.91
