Description

Price

1

JOINT, CARBURETOR 1

3FA-13586-00-00

$67.31

2

O-RING (30X)

93210-30611-00

$10.82

3

BOLT,SOCKET

91317-06020-00

$2.11

4

NUT, FLANGE(4MV)

95707-06500-00

$0.78

5

CAP, CLEANER CASE 1

3FA-14412-02-00

Unavailable

6

SEAL

1VJ-14462-00-00

$16.08

7

PLATE, ELEMENT

3FA-14472-00-00

$24.91

8

CLIP, CAP FITTING

3FA-14424-00-00

Unavailable

9

SEAL

59V-14457-00-00

$5.65

10

CLIP (21V)

90467-22080-00

$6.17

11

SCREW, WITH WASHER

90159-05019-00

$3.20

12

HOSE CLAMP ASSY(10F)

90450-45075-00

$4.15

13

ELEMENT, AIR CLEANER

2XJ-14451-01-00

Unavailable

14

GUIDE

2XJ-14458-00-00

$26.86

15

WASHER (4H7)

90209-06096-00

$6.57

16

SCREW, PAN

98507-06060-00

$5.60

17

DUCT

3FA-14437-00-00

$50.68

18

HOSE CLAMP ASSY

90450-58002-00

$15.11

19

JOINT, AIR CLEANER 1

3FA-14453-00-00

$32.74

20

HOSE CLAMP ASSY(10F)

90450-45075-00

$4.15

21

PIPE

2NL-14419-00-00

$16.86

22

PLATE, EPA OFFROAD ATV 1

1C5-2177C-00-00

Unavailable

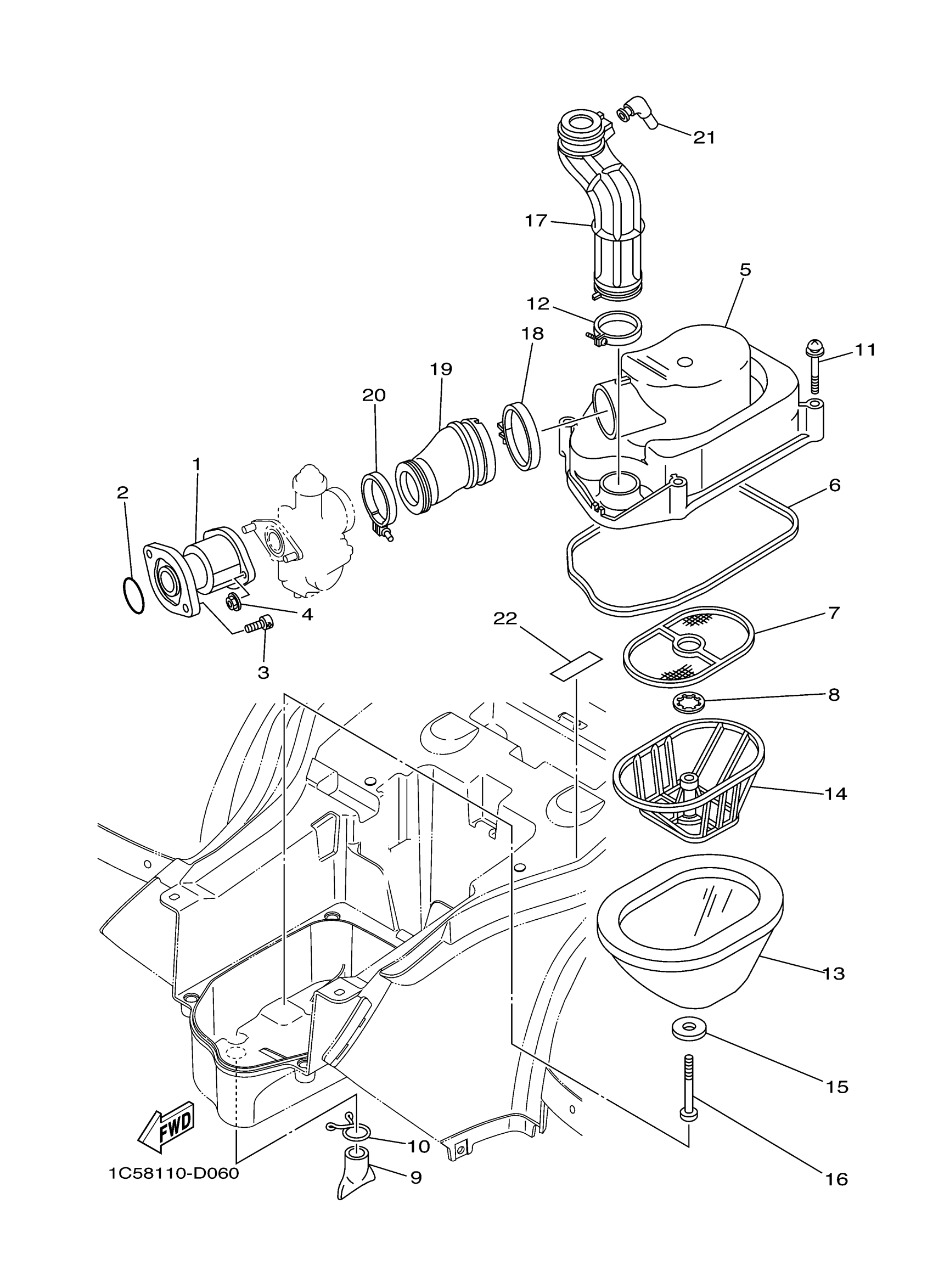

Yamaha YFM125GW (GRIZZLY 125) 1C5D 2007 INTAKE Diagram

CAP, CLEANER CASE 1

CLIP, CAP FITTING

ELEMENT, AIR CLEANER

PLATE, EPA OFFROAD ATV 1
