Description

Price

1

SEMI-DOUBLE SEAT ASS''Y (2HX-24770-00)

2HX-24710-00-00

Unavailable

2

COVER,DOUBLE SEAT

4EM-24731-30-00

Unavailable

3

DAMPER, SEAT

3L7-24724-00-00

$2.23

4

STOPPER, MAIN STAND

371-27114-00-00

$5.42

5

BRACKET, SEAT LEVER

4K0-24775-00-00

Unavailable

6

BOLT (661)

97013-06012-00

$4.40

7

WASHER, SPRING

92995-06100-00

$2.95

8

LEVER, SEAT

29U-24776-00-00

Unavailable

9

PIN

4K0-24774-01-00

Unavailable

10

SPRING, TORSION (24W)

90508-20454-00

Unavailable

11

CIRCLIP (EU0)

99080-04600-00

$1.70

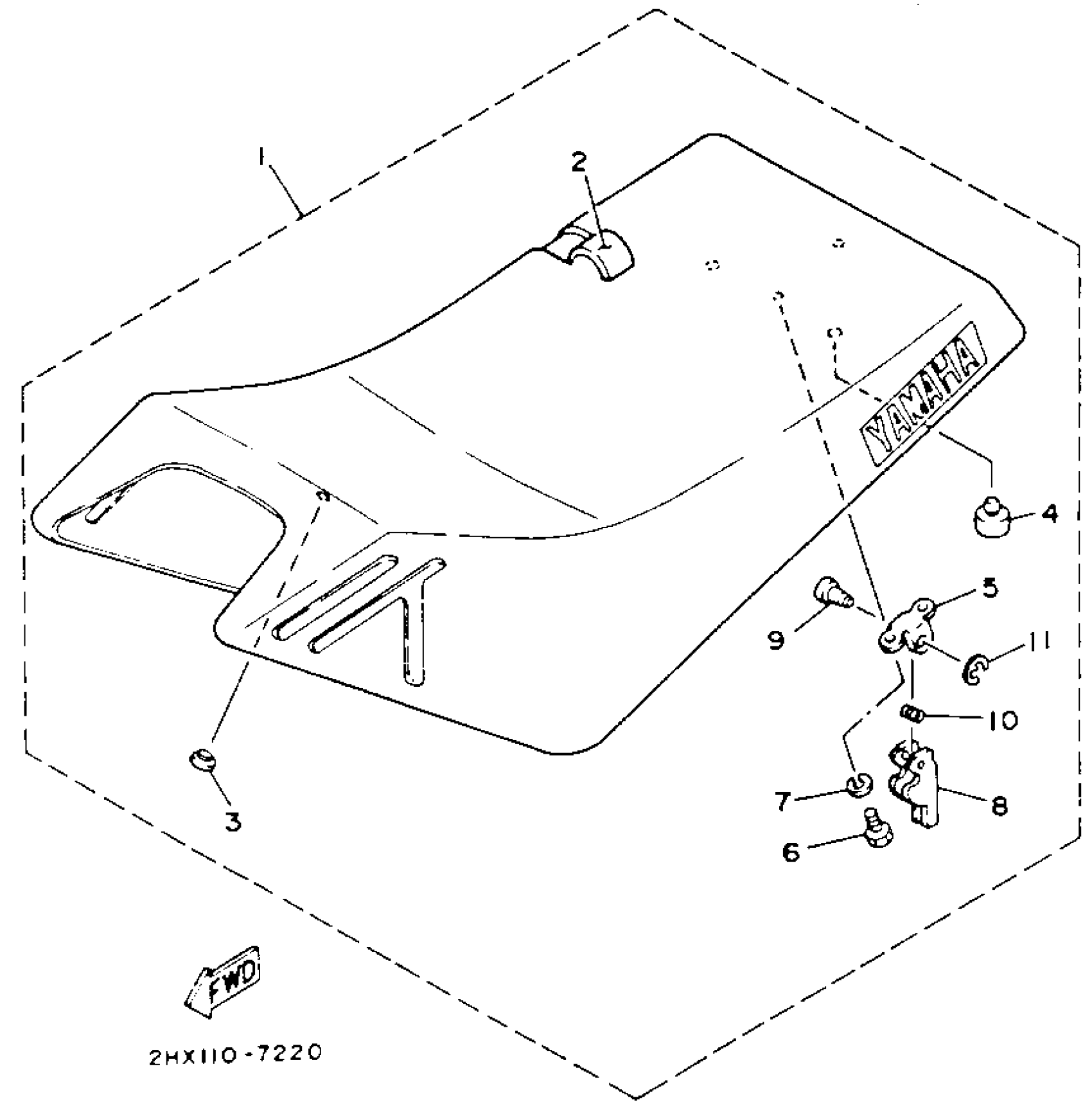

Yamaha YFM100T (CHAMP) 1987 SEAT Diagram

SEMI-DOUBLE SEAT ASS''Y (2HX-24770-00)

COVER,DOUBLE SEAT

DAMPER, SEAT

STOPPER, MAIN STAND

BRACKET, SEAT LEVER

BOLT (661)

WASHER, SPRING

LEVER, SEAT

PIN

SPRING, TORSION (24W)

CIRCLIP (EU0)
