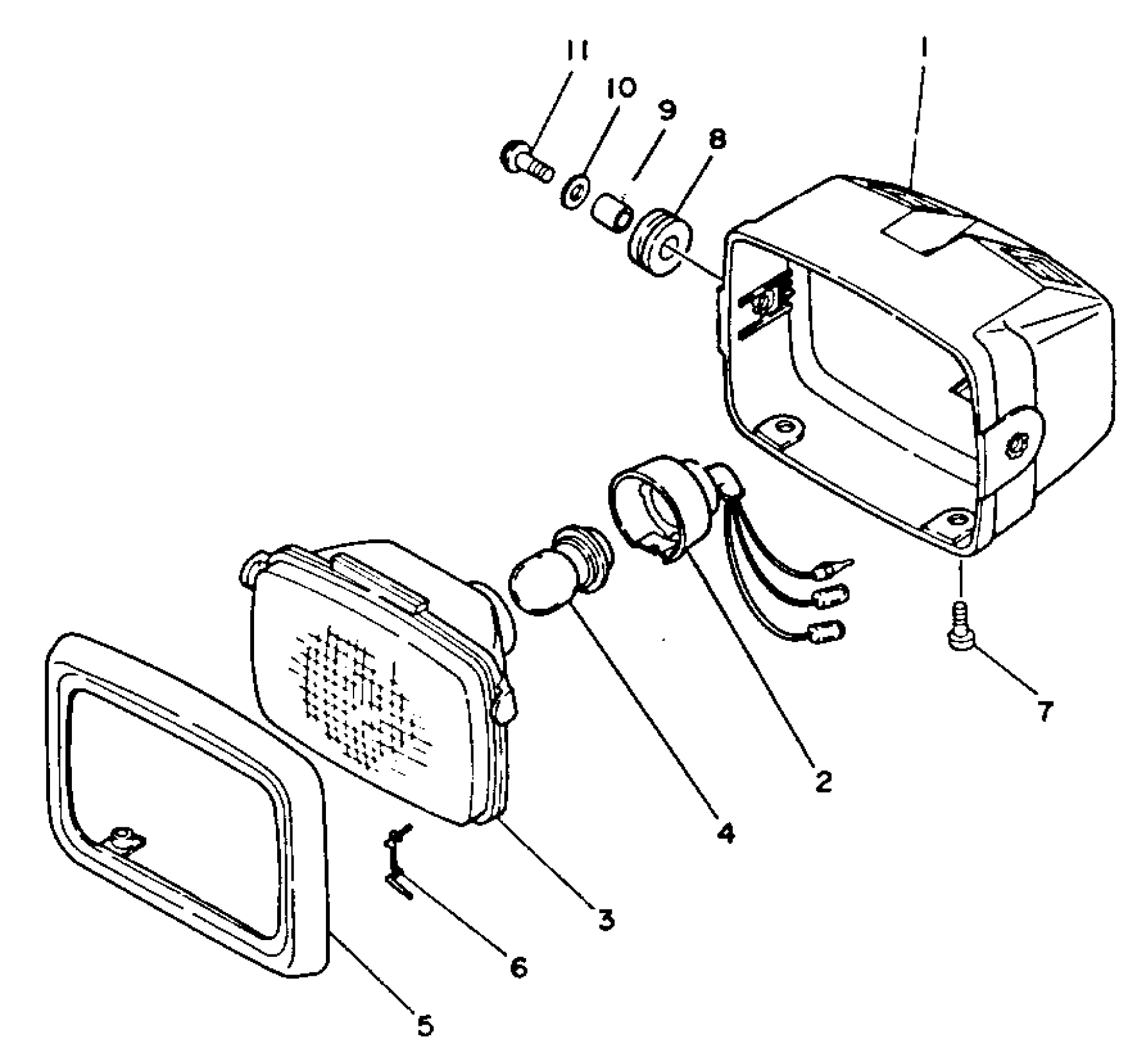

Yamaha YFM100B (CHAMP) 1991 HEADLIGHT Diagram

#

Description
Price

1

BODY ASSEMBLY

55X-84330-00-00

Unavailable

2

. SOCKET

55X-84312-00-00

Unavailable

3

LENS ASSY

59V-84320-01-00

Unavailable

4

BULB, HEADLIGHT (12V-25/25W)

1YT-84314-00-00

$10.61

5

. RIM, HEADLIGHT

55X-84315-00-00

Unavailable

6

SET SPRING

55X-84124-00-00

$10.82

7

SCREW, PAN

98517-05012-00

$3.91

8

GROMMET(3GB)

90480-18499-00

Unavailable

9

SPACER

90560-07007-00

$6.57

10

WASHER, PLATE

90201-06747-00

$6.17

11

BOLT, FLANGE

95822-06025-00

$1.46
