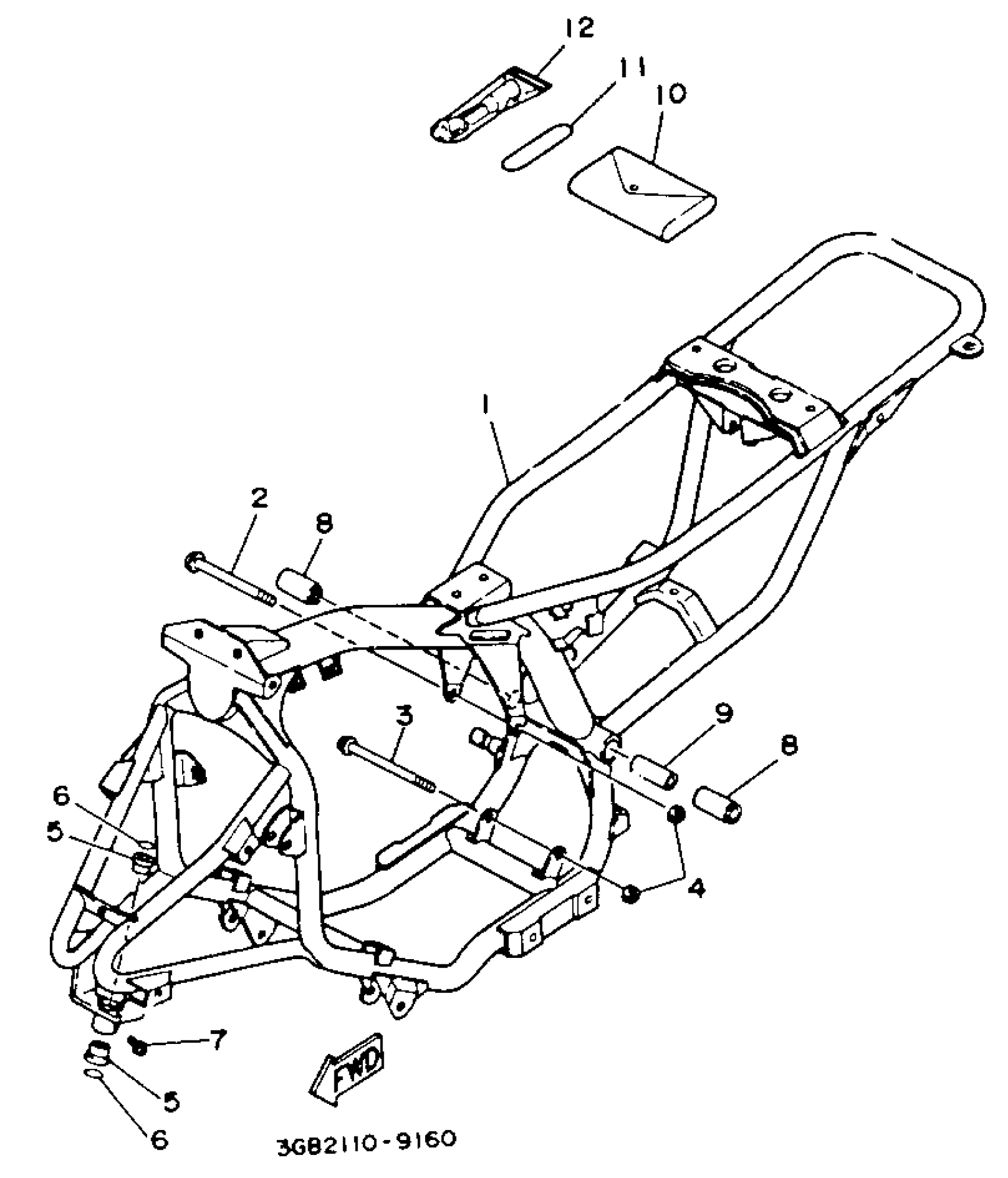

Yamaha YFM100B (CHAMP) 1991 FRAME Diagram

#

Description
Price

1

FRAME COMP.

3GB-21110-20-33

$381.38

2

BOLT, FLANGE

95817-08115-00

$6.12

3

BOLT, FLANGE(4EM)

95817-08120-00

$3.57

4

NUT, SELF-LOCKING

90185-08169-00

$6.62

5

BUSH, SOLID (J22)

90381-15040-00

$21.97

6

O-RING (22U)

93210-15566-00

$5.39

7

NIPPLE, GREASE

93700-06M03-00

$7.40

8

BUSH 1

3GB-22123-00-00

$21.86

9

PIPE

3GB-22155-00-00

Unavailable

10

TOOL KIT

3GB-28100-01-00

Unavailable

11

O-RING (17W)

93210-40407-00

$2.96

12

GAUGE, AIR

1NV-2811A-01-00

$47.13
