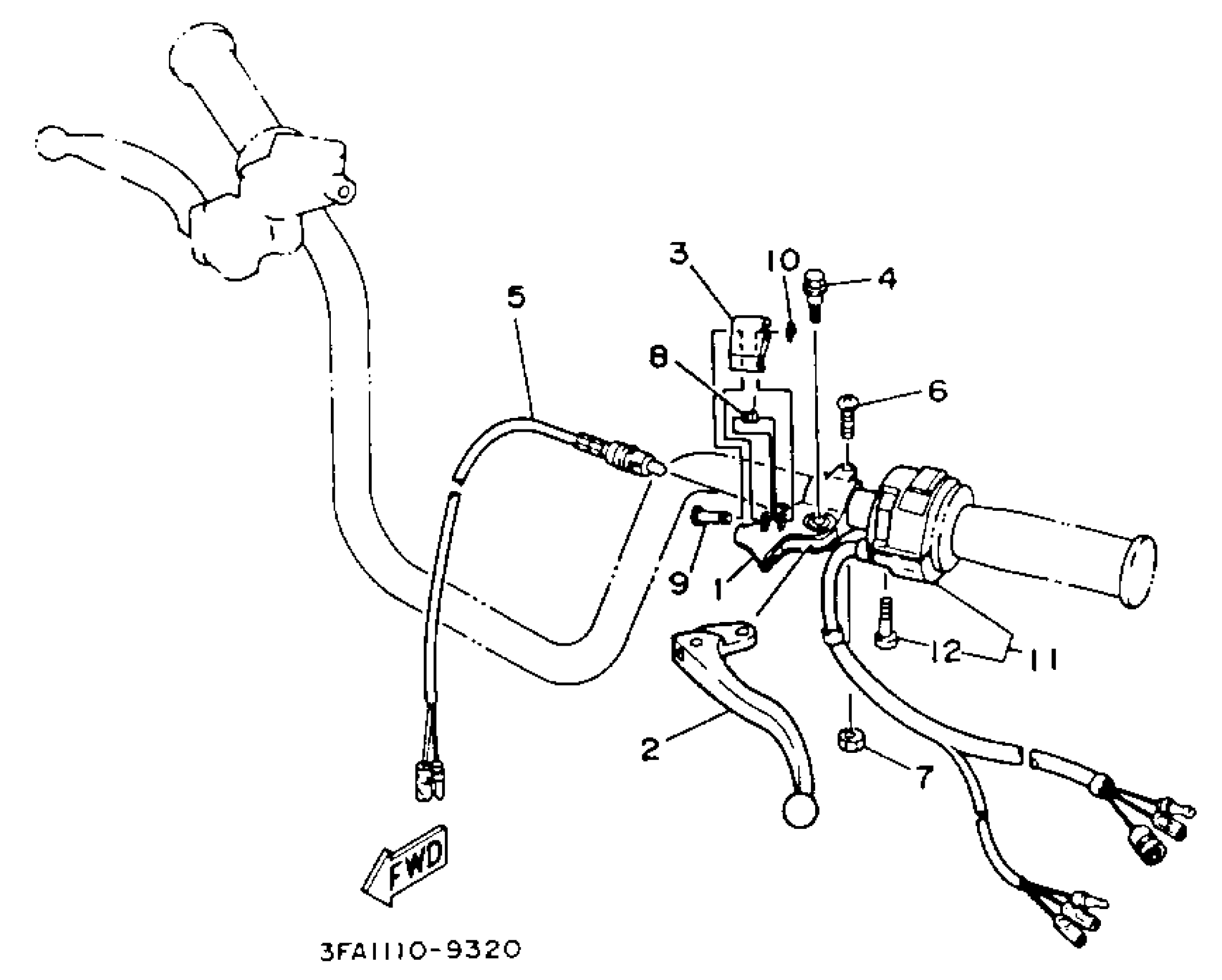

Yamaha YFM100A (CHAMP) 3GB3 1990 HANDLE SWITCH - LEVER Diagram

#

Description
Price

1

HOLDER, LEVER 1

3FA-82911-01-00

$31.29

2

LEVER 1

1NV-83912-02-00

$23.28

3

LEVER, LOCK

3FA-83965-00-00

$25.42

4

BOLT(1FG)

90109-06798-00

$5.84

5

FRONT STOP SWITCH ASSY

1YW-83980-00-00

$58.58

6

SCREW, PAN

98517-06020-00

$1.79

7

NUT, SELF-LOCKING

95617-06100-00

$2.17

8

SPRING, RETURN

3FA-83966-00-00

$3.77

9

PIN, LOCK 1

3FA-83967-00-00

$8.60

10

RING, SNAP

3FA-26466-00-00

$6.52

11

SWITCH, HANDLE 3

2HX-83973-09-00

Unavailable

12

SCREW, PAN HEAD

98517-05030-00

$7.40
