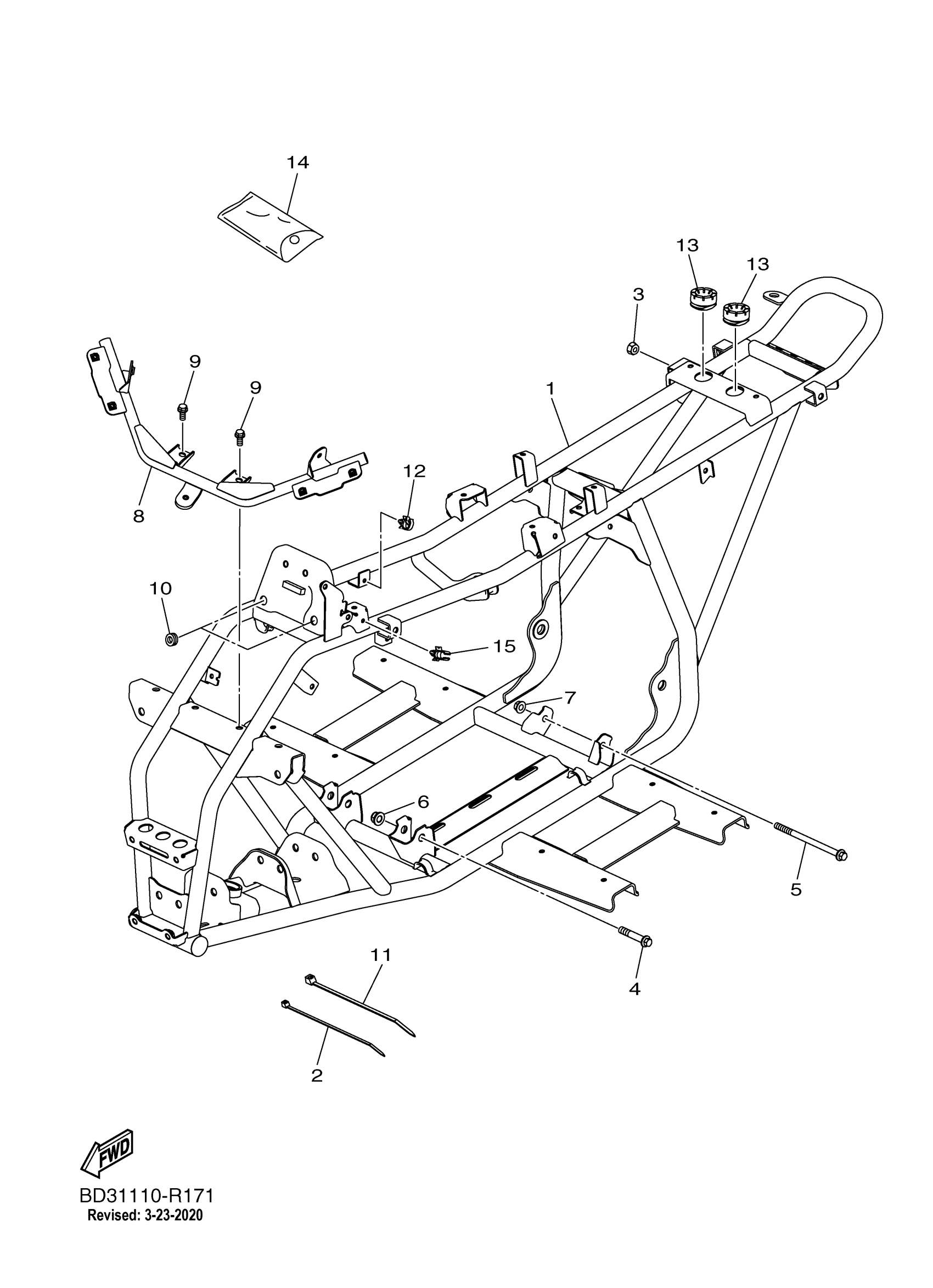

Yamaha YFM09RYXGL (RAPTOR 90) BD31 2016 FRAME Diagram

#

Description
Price

1

FRAME COMP.

BD3-F1110-10-00

$1,276.99

2

BAND

BD3-F1646-00-00

Unavailable

3

NUT 1

BD3-F2251-00-00

$2.12

4

BOLT

BD3-F6332-00-00

$4.85

5

BOLT 3

BD3-F4178-00-00

Unavailable

6

NUT

BD3-F1839-00-00

$4.20

7

NUT, REAR FENDER

BD3-F1635-00-00

$3.67

8

STAY, FENDER 1

BD3-F1513-00-00

Unavailable

9

BOLT 1

BD3-F4176-00-00

$7.56

10

GROMMET

BD3-F1719-00-00

Unavailable

11

BAND

BD3-F1647-00-00

$1.79

12

CLAMP

BD3-F1338-00-00

$3.80

13

DAMPER

BD3-F113B-00-00

$7.71

14

TOOL KIT

BD3-F8100-00-00

$80.82
