Description

Price

1

CRANKCASE COVER ASSY 2

BD3-E5420-10-00

$229.99

2

GASKET, CRANKCASE COVER 2

BD3-E5461-10-00

$19.09

3

BOLT

BD3-G1148-10-00

$3.03

4

BEARING 2

BD3-E1429-00-00

$26.92

5

BEARING

BD3-E4814-00-00

$29.43

6

BEARING

BD3-E5693-00-00

$54.53

7

BEARING

BD3-E7678-10-00

$79.51

8

RING, SEAL

BD3-E4005-00-00

$7.40

9

CIRCLIP

BD3-E2842-00-00

$4.00

10

CIRCLIP

BD3-E662A-00-00

$2.15

11

PLUG, OIL

BD3-E5363-00-00

$5.68

12

O-RING

BD3-E4561-00-00

$4.82

13

COUNTER AXLE ASSY

BD3-E7430-00-00

$357.97

14

COLLAR

BYS-E1478-00-00

$16.14

15

WASHER

BD3-E3578-00-00

$3.62

16

GEAR, PRIMARY DRIVEN

BD3-E6151-00-00

$137.01

17

AXLE, DRIVE

BD3-E7421-00-00

$136.21

18

CLUTCH, DOG

BD3-E7285-00-00

$115.99

19

CIRCLIP 1

BD3-E551A-00-00

$4.28

20

WASHER

BD3-E3995-00-00

$5.26

21

GEAR, REVERSE WHEEL 2

BD3-E7253-00-00

$144.93

22

DRIVE PINION ASSY

BD3-E7520-00-00

$392.03

23

SPROCKET, DRIVE

BYS-E7451-00-00

$33.22

24

PLATE

BD3-E7446-10-00

$7.14

25

BOLT, STOPPER

BD3-E2299-10-00

$2.20

26

PIN, DOWEL

BD3-E7498-00-00

$3.37

27

COVER, CHAIN CASE

BYS-E5418-00-00

Unavailable

28

SCREW

BD3-E4429-20-00

$2.62

29

RETAINER

BD3-E5689-00-00

$6.23

30

HOSE, BREATHER 1

BD3-E531A-00-00

$2.42

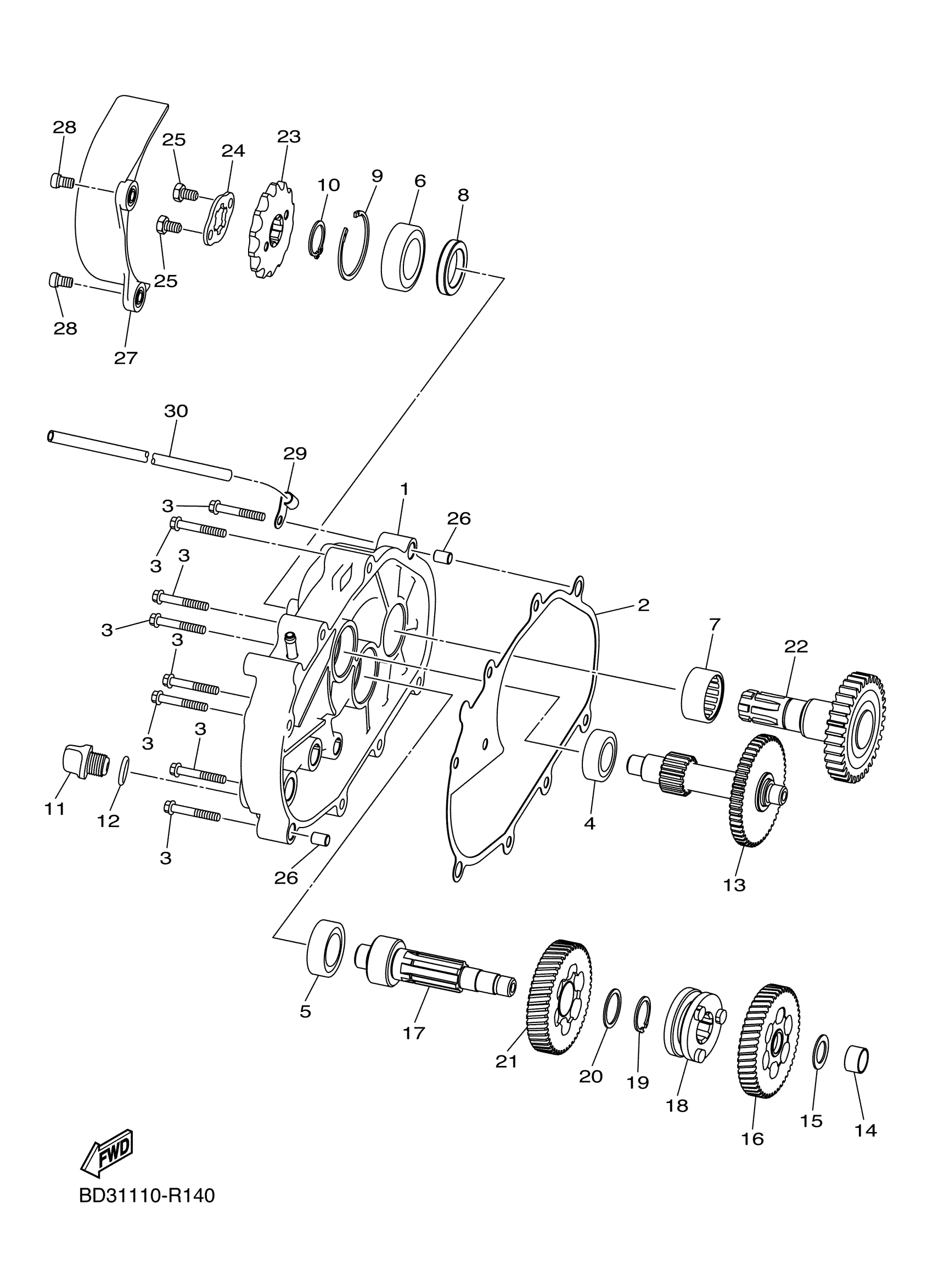

Yamaha YFM01GYXTS (GRIZZLY 110) D963 2026 TRANSMISSION Diagram

COVER, CHAIN CASE
