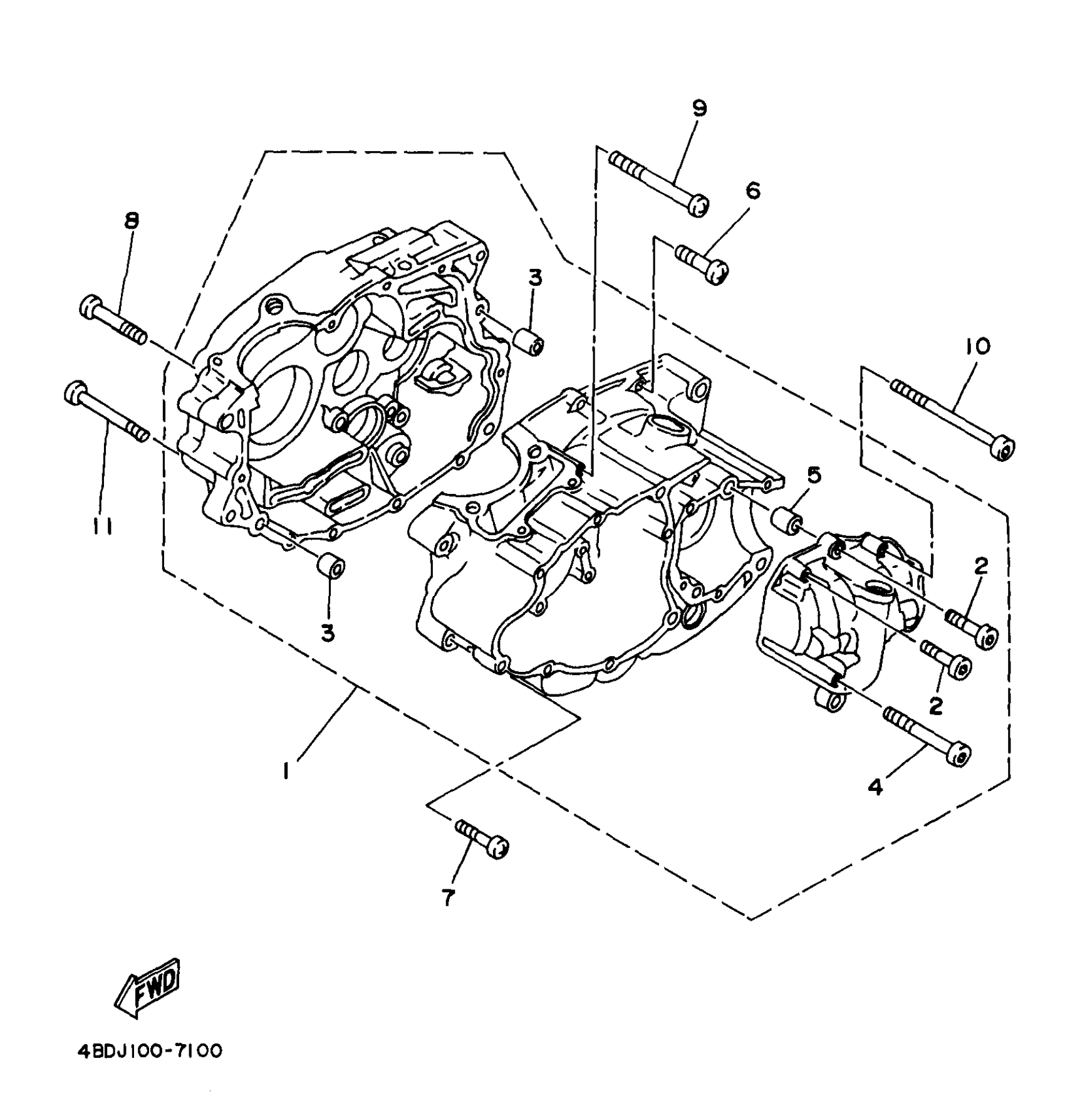

Yamaha YFB250UJ (TIMBERWOLF 2WD) 4BDJ 1997 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

4BD-15100-10-00

Unavailable

2

BOLT, HEXAGON SOCKET HEAD(3JP)

90110-06237-00

$1.64

3

PIN, DOWEL(3VD)

99530-10114-00

$2.13

4

BOLT, SOCKET

91317-06085-00

Unavailable

5

PIN, DOWEL

99530-12016-00

$3.85

6

SCREW, PAN

98517-06030-00

$2.88

7

SCREW, PAN

98507-06040-00

$2.08

8

SCREW, PAN

98507-06060-00

$5.23

9

SCREW, PAN

98507-06085-00

$4.82

10

BOLT

91317-06160-00

Unavailable

11

SCREW PAN HEAD

98580-06575-00

$10.79
