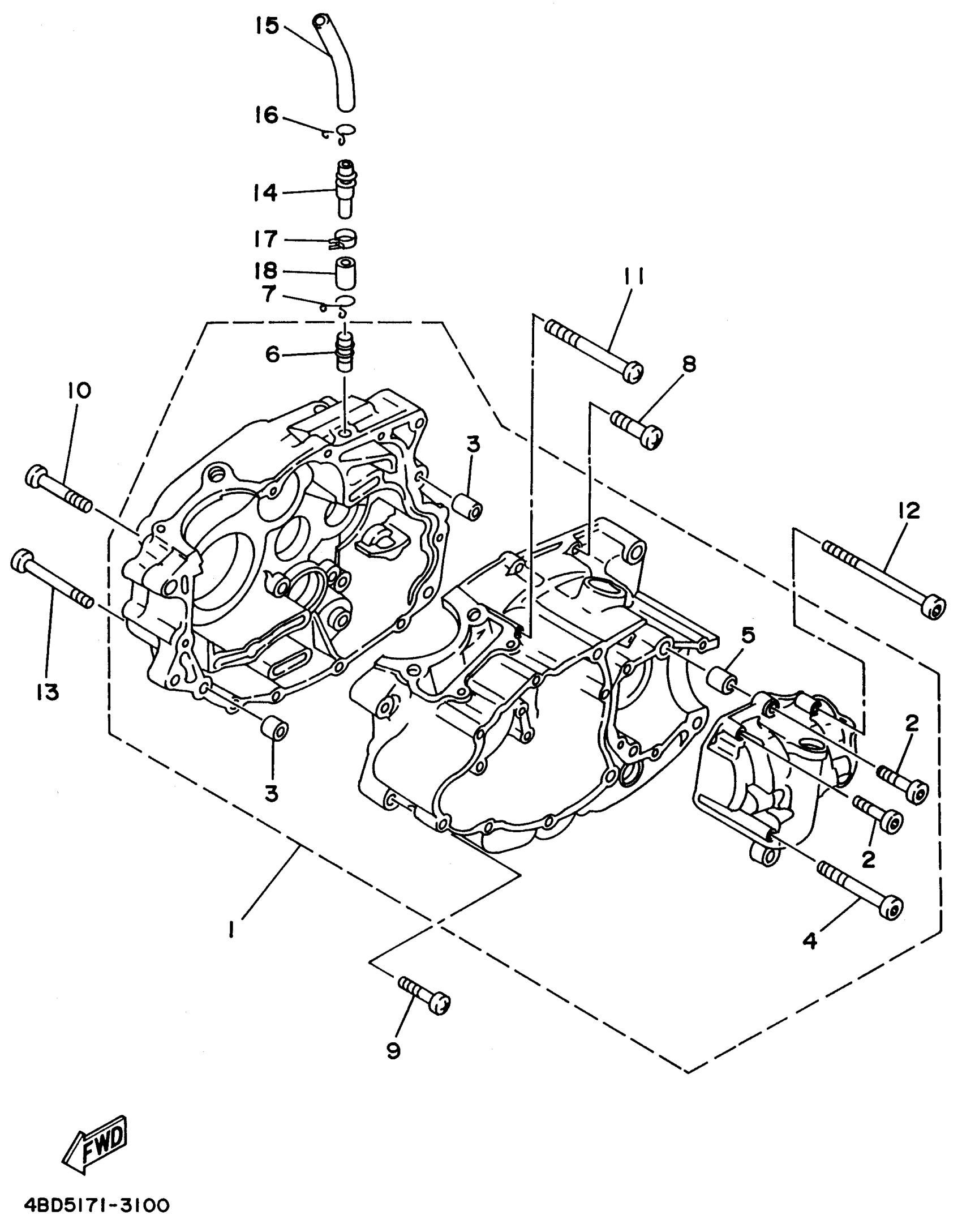

Yamaha YFB250UH 1996 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

4BD-15100-00-00

Unavailable

2

BOLT,SOCKET

91317-06035-00

$3.27

3

PIN, DOWEL(3VD)

99530-10114-00

$2.13

4

BOLT, SOCKET

91317-06085-00

Unavailable

5

PIN, DOWEL

99530-12016-00

$3.85

6

PIPE, BREATHER 2

371-11167-01-00

$9.67

7

CLIP (371)

90467-14015-00

$7.03

8

SCREW, PAN

98517-06030-00

$2.88

9

SCREW, PAN

98507-06040-00

$2.08

10

SCREW, PAN

98507-06060-00

$5.23

11

SCREW, PAN

98507-06085-00

$4.82

12

BOLT

91317-06160-00

Unavailable

13

SCREW PAN HEAD

98580-06575-00

$10.79

14

PIPE, BREATHER 2

59V-11167-00-00

Unavailable

15

HOSE

90445-131J9-00

Unavailable

16

CLIP (4X4)

90467-12052-00

Unavailable

17

CLIP (5K4)

90467-14057-00

Unavailable

18

HOSE (L60)

90445-16641-00

Unavailable
