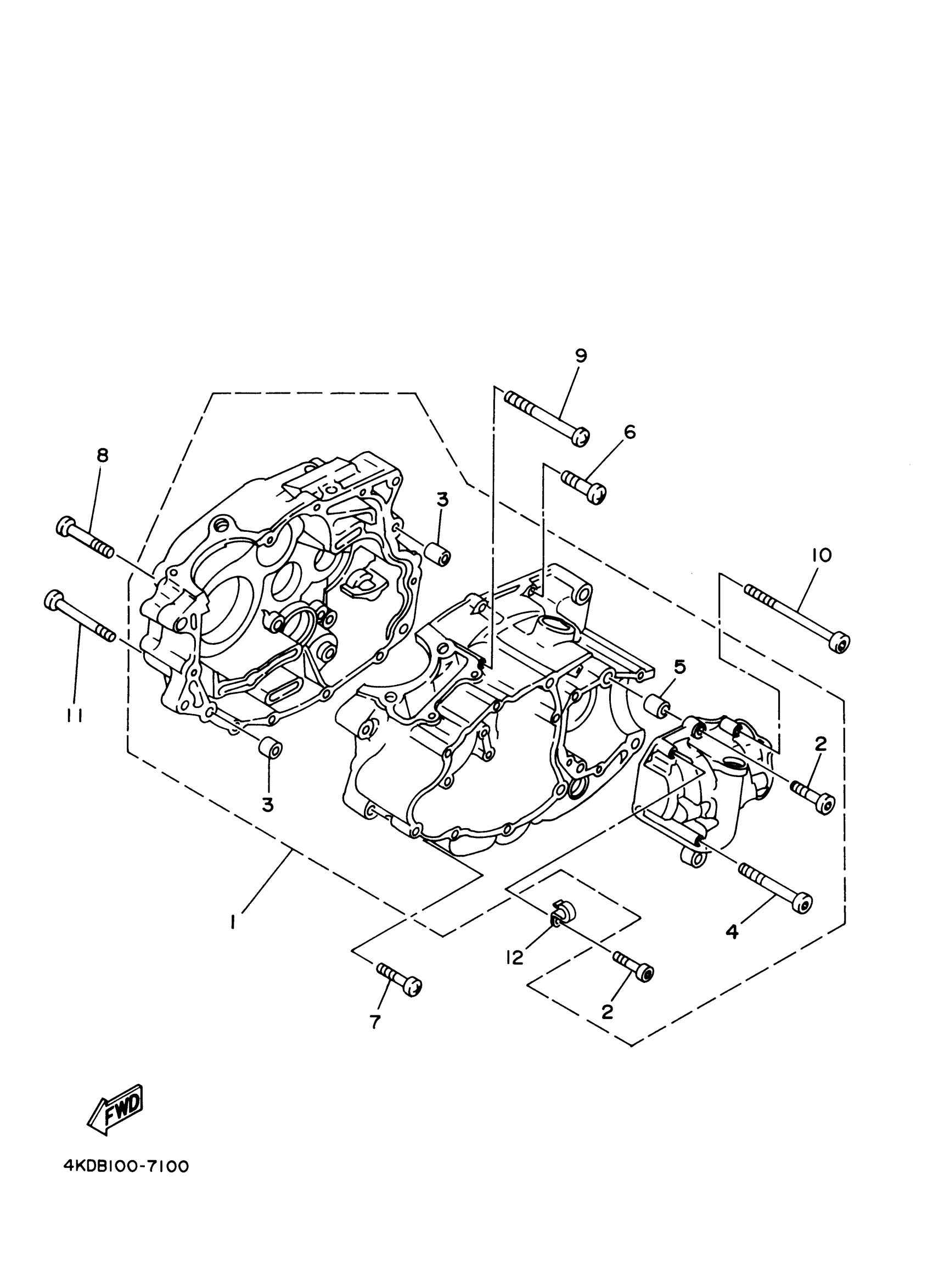

Yamaha YFB250FWM (TIMBERWOLF 4WD) 4KDL 2000 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

4BD-15100-12-00

Unavailable

2

BOLT,SOCKET

91317-06035-00

$3.27

3

PIN, DOWEL(3VD)

99530-10114-00

$2.13

4

BOLT, SOCKET

91317-06085-00

Unavailable

5

PIN, DOWEL

99530-12016-00

$3.85

6

SCREW, PAN

98517-06030-00

$2.88

7

SCREW, PAN

98507-06040-00

$2.08

8

SCREW, PAN

98507-06060-00

$5.23

9

SCREW, PAN

98507-06085-00

$4.82

10

BOLT

91317-06160-00

Unavailable

11

SCREW, PAN

98507-06075-00

$5.23

12

CLAMP(51Y)

90465-08277-00

Unavailable
