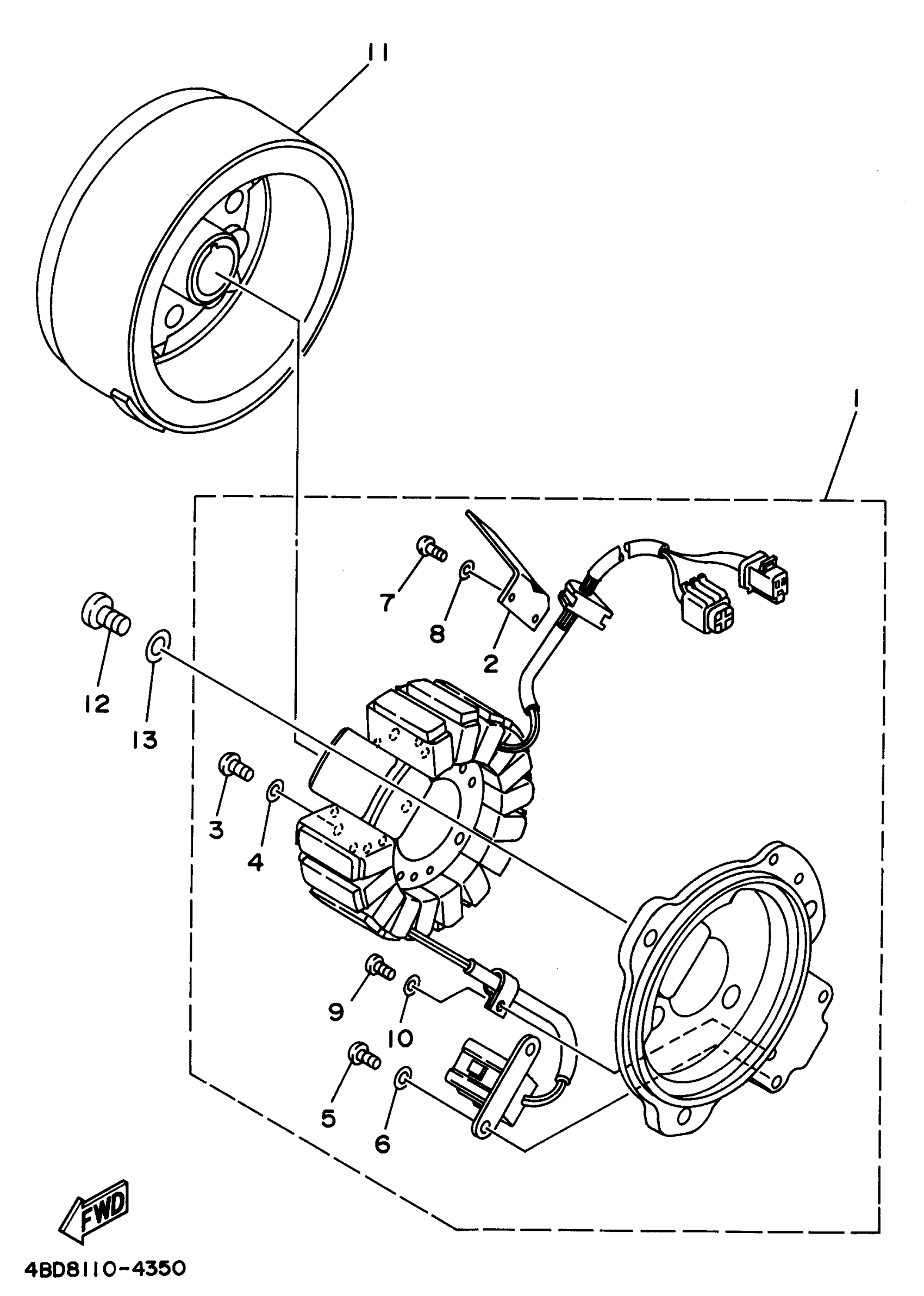

Yamaha YFB250FWG (TIMBERWOLF 4WD) 1995 GENERATOR Diagram

#

Description
Price

1

STATOR ASSY

4BD-85510-20-00

Unavailable

2

. COVER

21V-85525-00-00

Unavailable

3

SCREW, PANHEAD (A93)

98580-05525-00

$1.43

4

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

5

SCREW, PAN HEAD(3LA)

98517-05010-00

$3.29

6

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

7

SCREW, PAN HEAD (713)

98580-04008-00

$4.24

8

YBS67-4 WASHER, SPRING

92990-04100-00

$0.58

9

SCREW, PAN HEAD(3XP)

98517-04006-00

$3.86

10

YBS67-4 WASHER, SPRING

92990-04100-00

$0.58

11

ROTOR ASSY

4BD-85550-20-00

Unavailable

12

SCREW, PAN HEAD(3TJ)

98507-06016-00

$2.27

13

WASHER(6TA)

92907-06600-00

$0.73
