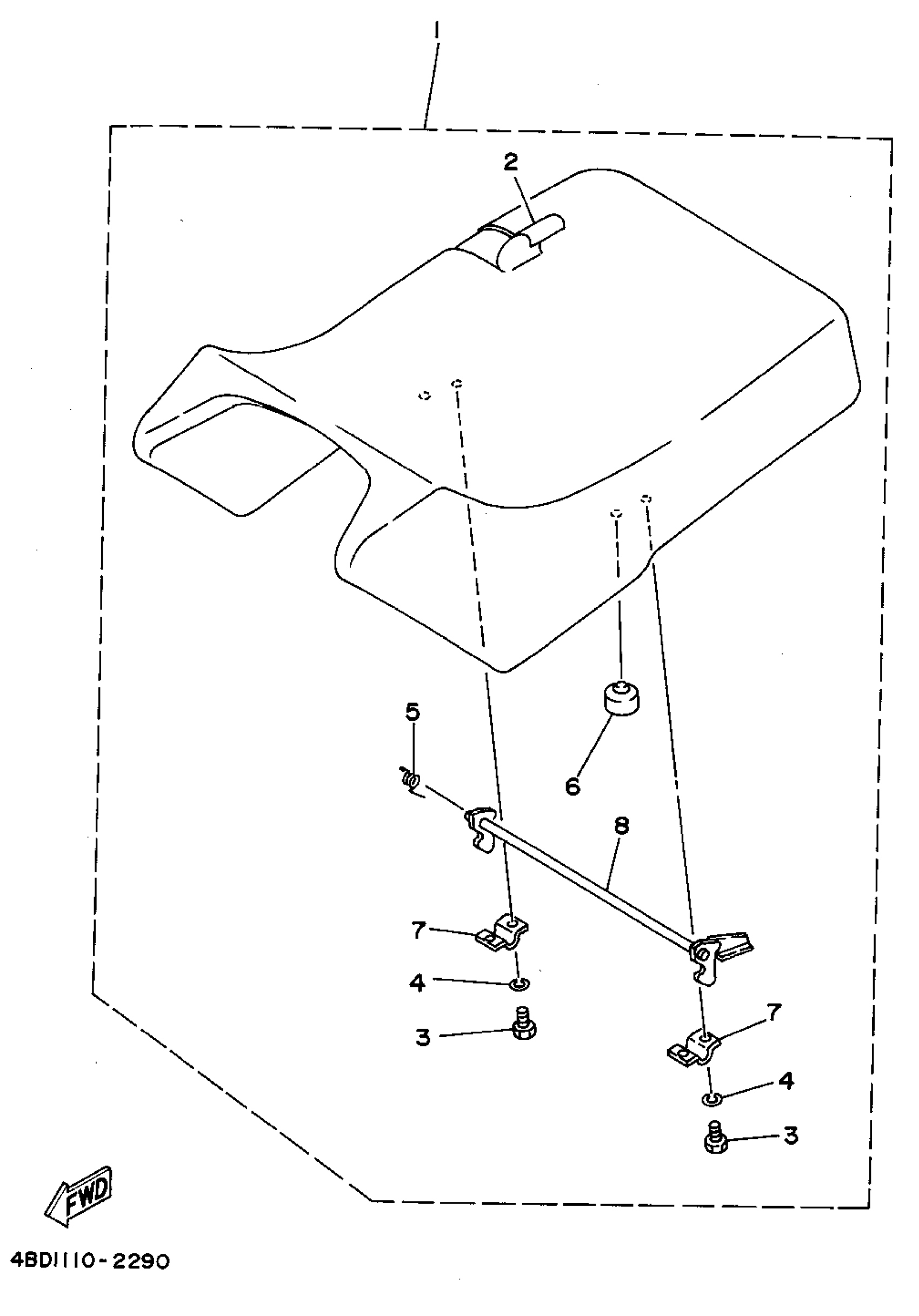

Yamaha YFB250F (TIMBERWOLF 2WD) 4BD8 1994 SEAT Diagram

#

Description

Price

1

SINGLE SEAT ASSEMBLY

4BD-24710-30-00

Unavailable

1

SINGLE SEAT ASSEMBLY

4BD-24710-40-00

Unavailable

2

. COVER, SEAT

4BD-24731-30-00

Unavailable

2

. COVER, SEAT

4BD-24731-40-00

Unavailable

3

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$1.78

4

WASHER, SPRING

92995-06100-00

$2.95

5

SPRING, TORSION (21V)

90508-23567-00

$6.88

6

STOPPER, MAIN STAND

371-27114-00-00

$5.42

7

. BRACKET, SEAT LEVER

59V-24775-00-00

Unavailable

8

LEVER,SEAT

4BD-24776-01-00

Unavailable
