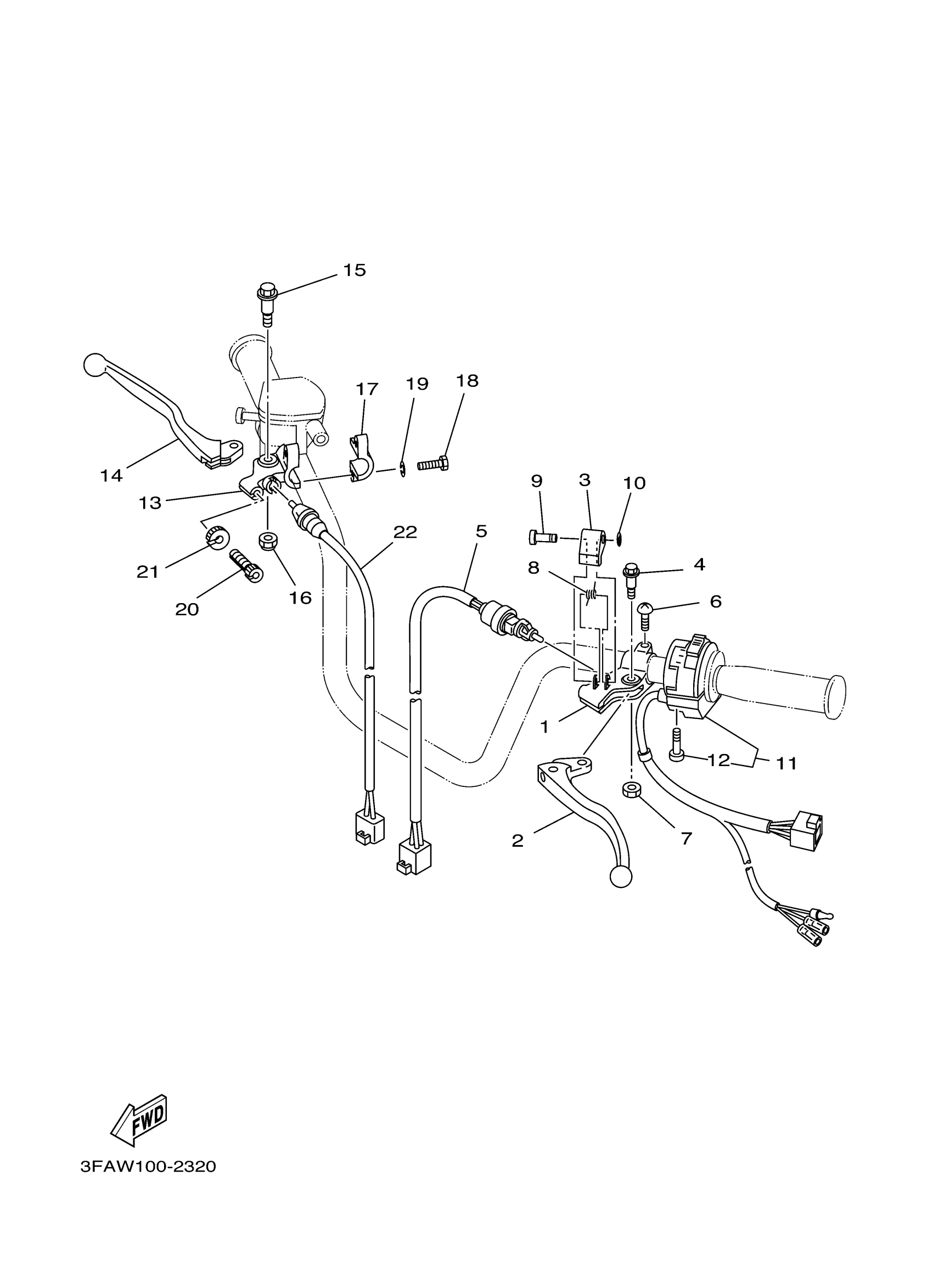

Yamaha YFA1RC (BREEZE) 5VJ2 2003 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

HOLDER, LEVER 1

3FA-82911-01-00

$30.82

2

LEVER 1

2HT-83912-01-00

$32.59

3

LEVER, LOCK

3FA-83965-00-00

$25.03

4

BOLT (2YK1)

90109-06799-00

$4.23

5

FRONT STOP SWITCH ASSY

3FA-83980-03-00

$60.01

6

SCREW, PAN

98517-06020-00

$1.79

7

NUT, SELF-LOCKING

95617-06100-00

$2.17

8

SPRING, RETURN

3FA-83966-00-00

$3.71

9

PIN, LOCK 1

3FA-83967-00-00

$8.47

10

RING, SNAP

3FA-26466-00-00

$6.42

11

SWITCH, HANDLE 3

3FA-83973-29-00

Unavailable

12

SCREW, PAN HEAD

98517-05030-00

$7.40

13

HOLDER, LEVER 2

3JN-82921-00-00

Unavailable

14

LEVER 2

59V-83922-00-00

$34.56

15

BOLT (2YK1)

90109-06799-00

$4.23

16

NUT, SELF-LOCKING

95617-06100-00

$2.17

17

HOLDER, LEVER LOWER 1

2XJ-82913-00-00

Unavailable

18

BOLT, HEXAGON

97017-06025-00

Unavailable

19

WASHER, SPRING

92907-06100-00

Unavailable

20

BOLT

90123-08002-00

Unavailable

21

NUT

90179-08030-00

Unavailable

22

FRONT STOP SWITCH ASSY

3FA-83980-10-00

Unavailable
