Description

Price

1

PROTECTOR, EXHAUST PIPE

3FA-14628-00-00

$57.78

2

MUFFLER 1

3FA-14711-00-00

Unavailable

3

PIPE, OUTLET

55X-14752-00-00

$47.20

4

SCREW, PAN

98507-06010-00

$2.69

5

WASHER(6TA)

92907-06600-00

$0.78

6

SCREW, BINDING

98907-06012-00

$7.14

7

WASHER, PROTECTOR

30X-14766-00-00

Unavailable

8

WASHER, WAVE(3RW)

90206-06090-00

$4.51

9

GASKET, EXHAUST PIPE

3DM-14613-00-00

$6.62

10

NUT, FLANGE(4MV)

95707-06500-00

$0.78

11

BOLT, FLANGE(JN5)

95817-08016-00

$4.12

12

WASHER (853)

90201-08326-00

$6.17

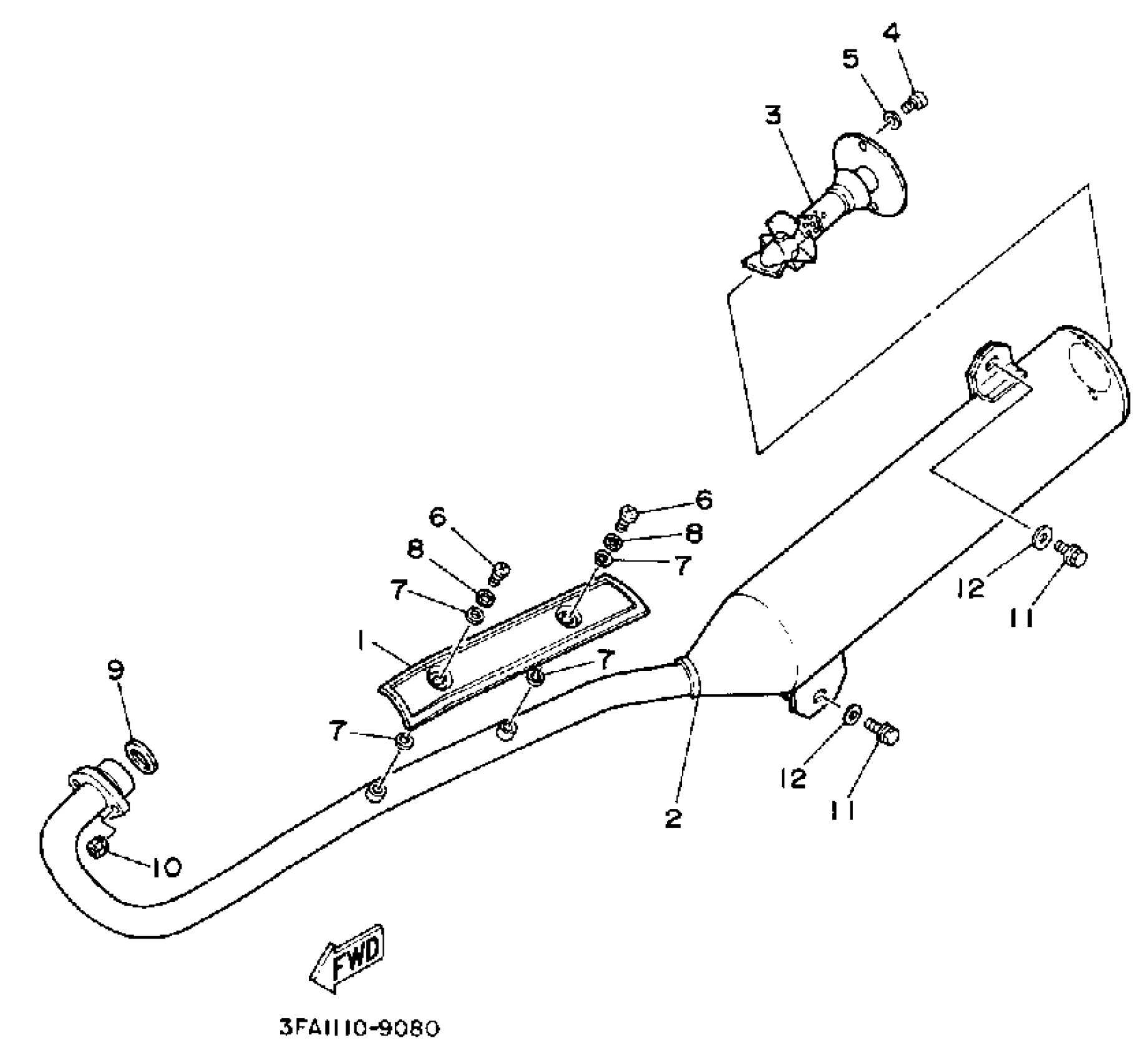

Yamaha YFA1D 1992 EXHAUST Diagram
