1986 Yamaha 4-Zinger (YF60S) Crankcase Diagram

← All diagrams

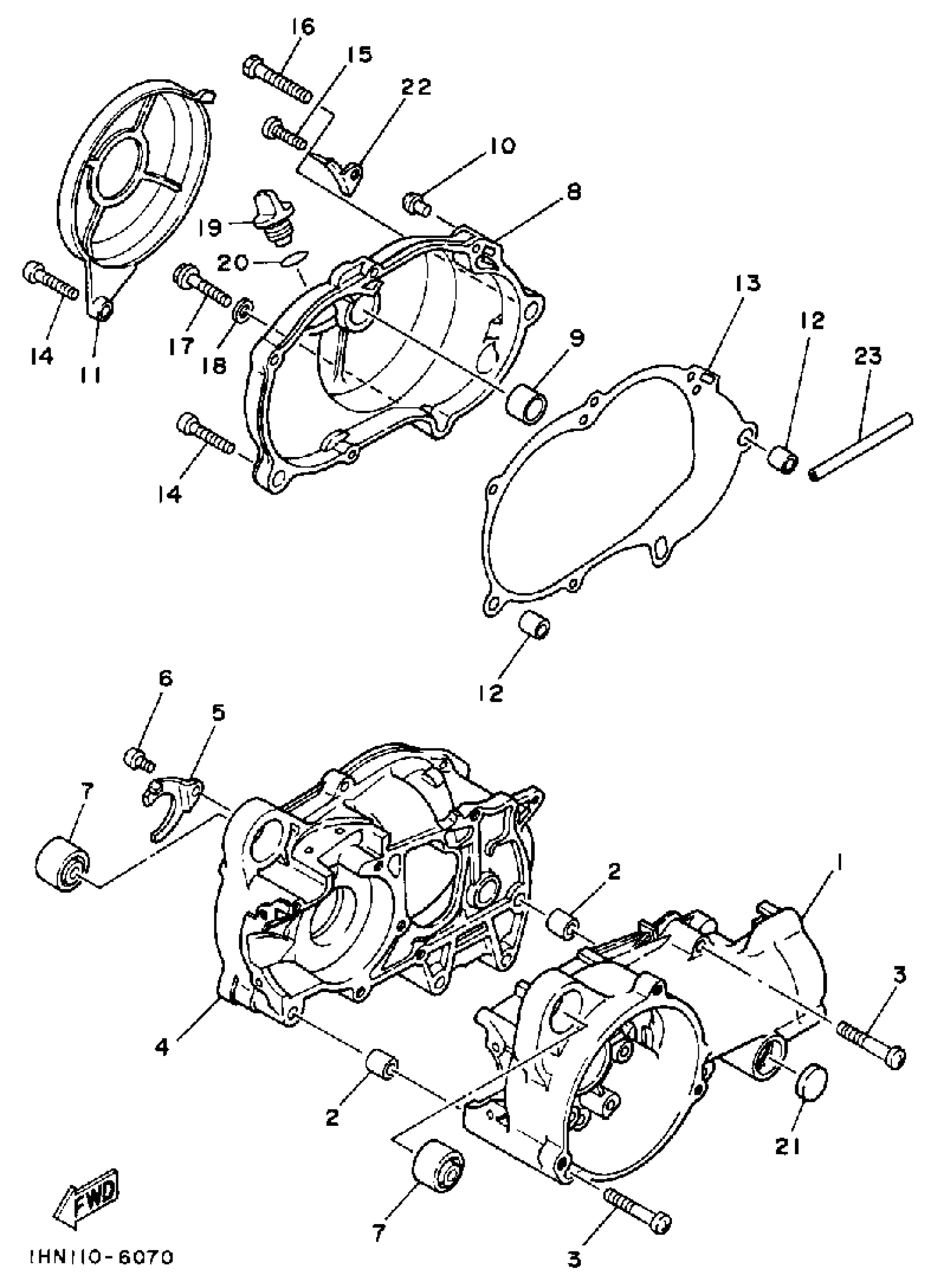

Find the part on the Crankcase diagram for your 1986 Yamaha 4-Zinger (YF60S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha 4-Zinger (YF60S) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1

4X4-15111-00-00

—
Out of stock

2

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

3

SCREW PAN HEAD

98580-06545-00

1

$5.78

In stock

4

CRANKCASE 2

3L5-15121-00-00

1
Out of stock

5

HOLDER

3L5-15128-00-00

—

$3.20

In stock

6

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

7

DAMPER, ENGINE MOUNT

2E9-15316-00-00

1

$24.14

In stock

8

COVER, CRANKCASE 2

4X4-15421-02-00

—

$123.58

In stock

9

BUSH 1

3L5-17112-02-00

1

$14.26

In stock

10

PLUG (17J)

90338-07124-00

1

$8.55

In stock

11

PROTECTOR

4X4-15491-00-00

1

$24.09

In stock

12

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

13

GASKET, CRANKCASE COVER 1

3L5-15451-12-00

1

$17.02

In stock

14

SCREW, PAN

98507-06035-00

1

$6.18

In stock

15

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

16

SCREW, HEXAGON(36R)

90153-06053-00

—

$1.25

In stock

17

BOLT, FLANGE

95817-08035-00

—

$6.68

In stock

18

WASHER, PLATE 3411117500

90201-08087-00

—

$3.13

In stock

19

PLUG, OIL

4J2-15363-10-00

—

$3.78

In stock

20

O-RING (26H)

93210-14579-00

—

$5.69

In stock

21

PLUG (21V)

90338-26136-00

—

$12.23

In stock

22

CLAMP 2

4X4-15484-00-00

—

$9.91

In stock

23

HOSE (L450)

90445-05773-00

—

$5.14

In stock
