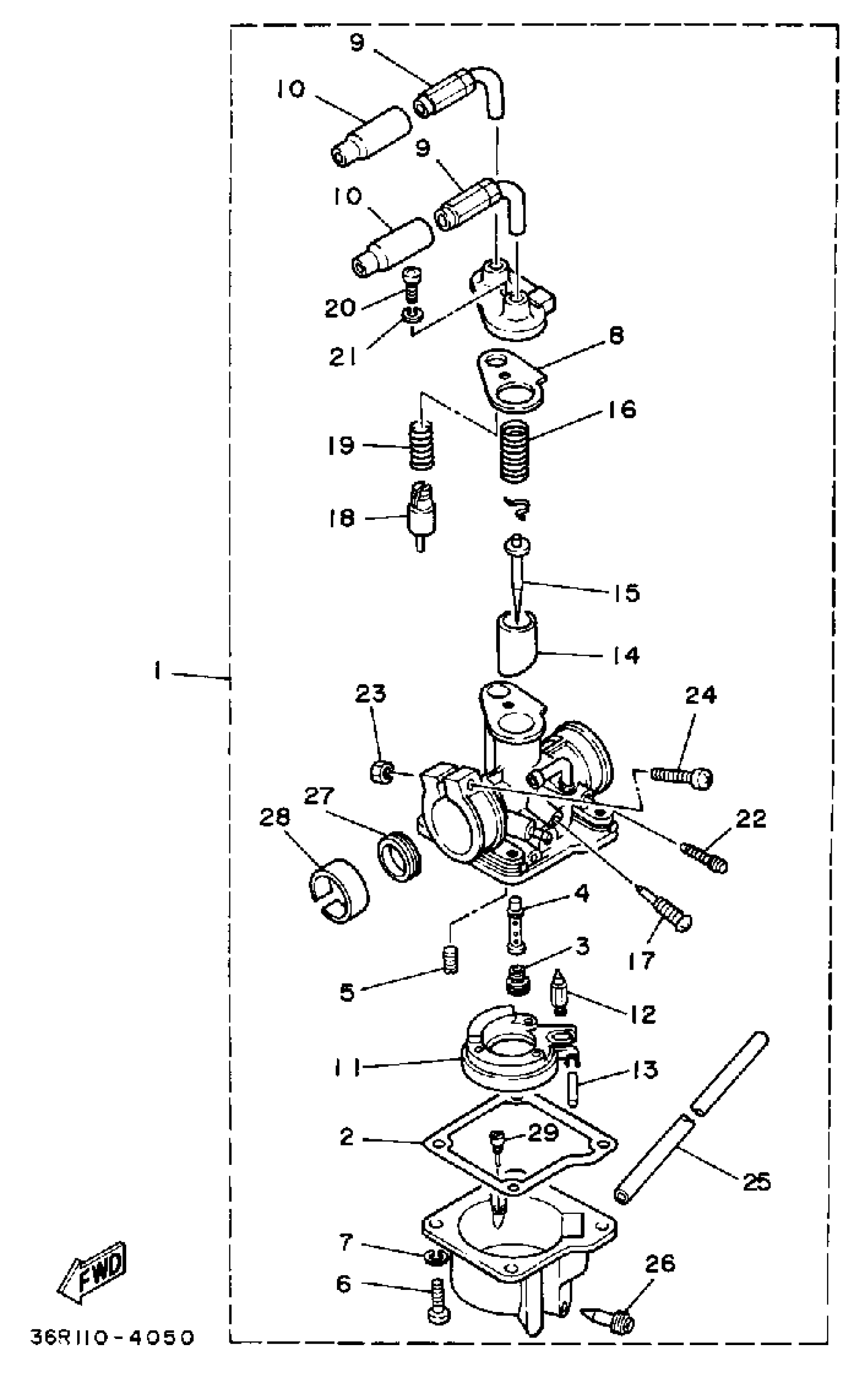

Yamaha YF60S (4-ZINGER) 1986 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

1HN-14101-00-00

Unavailable

2

GASKET, FLOAT CHAMBER

3L5-14184-00-00

$24.49

3

JET, MAIN (# 90)

3G2-14231-18-00

Unavailable

4

. NOZZLE, MAIN

3L7-14141-18-00

Unavailable

5

JET, PILOT (# 40)

3L5-14142-40-00

$7.77

6

SCREW, PAN HEAD(GA5)

98580-04014-00

$2.60

7

YBS67-4 WASHER, SPRING

92990-04100-00

$0.58

8

GASKET, MIXING CHAMBER

3L5-14198-00-00

$7.03

9

CABLE ADJUST SCREW SET

17L-14106-00-00

$6.39

10

CAP

1R0-14169-00-00

$7.07

11

FLOAT

3L6-14185-01-00

$54.82

12

NEEDLE VALVE ASSY

3L5-14190-01-00

$29.63

13

PIN, FLOAT

603-14186-00-00

$6.98

14

VALVE, THROTTLE (CA4.0)

3L5-14112-40-00

$75.45

15

NEEDLE SET

36R-1490J-00-00

$22.28

16

SPRING, THROTTLE VALVE

174-14131-01-00

Unavailable

17

THROTTLE SCREW SET

36R-14103-00-00

Unavailable

18

. PLUNGER, STARTER

36R-14171-00-00

Unavailable

19

SPRING, PLUNGER

127-14135-00-00

Unavailable

20

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

21

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

22

AIR SCREW SET

36R-14104-00-00

Unavailable

23

NUT, HEXAGON (663)

95380-05600-00

Unavailable

24

SCREW, PAN HEAD

98517-05030-00

Unavailable

25

HOSE (L200)

90445-05N13-00

Unavailable

26

AIR SCREW SET

36R-14104-00-00

Unavailable

27

PACKING, INSULATING

1V3-14271-00-00

Unavailable

28

SEAL

1M3-14997-00-00

Unavailable

29

. JET, STARTER (#55)

18M-14144-11-00

Unavailable
