1963 Yamaha YDT1 (YDT1) Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1963 Yamaha YDT1 (YDT1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

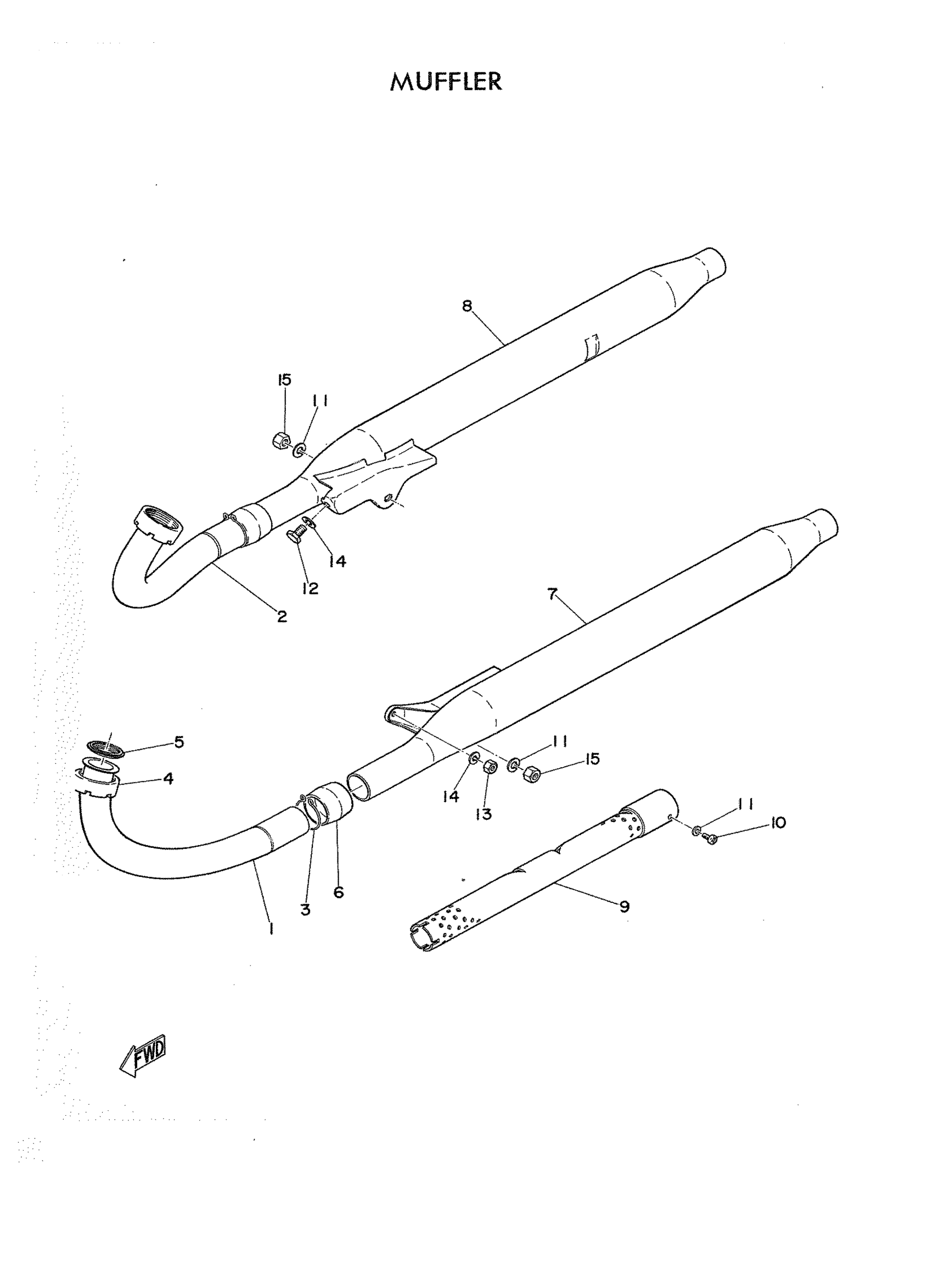

1963 Yamaha YDT1 (YDT1) Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE, EXHAUST (LH)

OLD-00941-03-01

1
Out of stock

2

PIPE, EXHAUST (RH)

OLD-00941-03-02

1
Out of stock

3

RING, JOINT STOPPER

136-14778-00-00

1
Out of stock

4

NUT, RING

146-14612-00-00

1
Out of stock

5

GASKET, EXHAUST PIPE

3PA-14613-10-00

1
Out of stock

6

GASKET, MUFFLER JOINT

148-14714-00-00

1
Out of stock

7

MUFFLER (LH)

155-14710-00-00

1
Out of stock

8

MUFFLER (RH)

155-14720-00-00

1
Out of stock

9

SILENCER,EXHAUST

156-14753-00-00

1
Out of stock

10

GASKET, EXHAUST

98507-05008-00

1

$2.69

In stock

11

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

12

BOLT, HEXAGON

97013-08016-00

1

$1.32

In stock

13

NUT(6L2)

95333-08600-00

1

$3.20

In stock

14

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

15

NUT (682)

95380-10700-00

1

$5.78

In stock

16

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock
