1963 Yamaha YDT1 (YDT1) Frame Diagram

← All diagrams

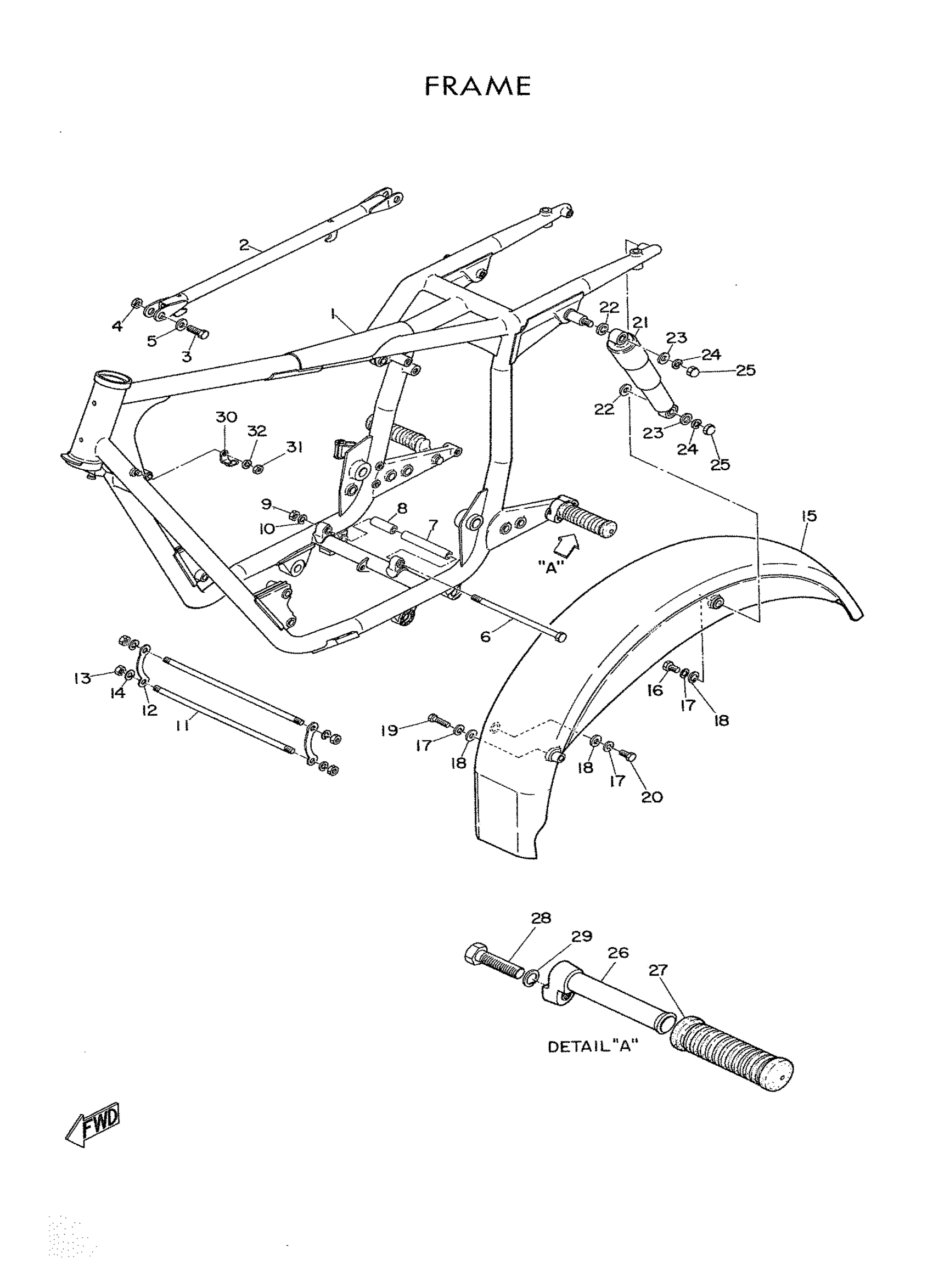

Find the part on the Frame diagram for your 1963 Yamaha YDT1 (YDT1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1963 Yamaha YDT1 (YDT1) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME ASSY

152-21110-00-00

1
Out of stock

2

PIPE, TENSION

152-21114-00-00

1
Out of stock

3

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1

$1.91

In stock

4

NUT(6L2)

95333-08600-00

1

$3.20

In stock

5

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

6

BOLT

90101-10082-00

1
Out of stock

7

SPACER, ENGINE MOUNT (LH)

152-15531-00-00

1
Out of stock

8

SPACER, ENGINE MOUNT (RH)

152-15327-00-00

1
Out of stock

9

NUT(6L2)

95333-08600-00

1

$3.20

In stock

10

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

11

BOLT,STUD

90116-08151-00

1
Out of stock

12

WASHER, SPRING

150-21491-00-00

1
Out of stock

13

NUT(6L2)

95333-08600-00

1

$3.20

In stock

14

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

15

REAR FENDER

152-21610-00-00

1
Out of stock

16

BOLT, HEXAGON

97013-08016-00

—

$1.32

In stock

17

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

18

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

19

BOLT

92901-08030-00

1
Out of stock

20

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

21

REAR CUSHION ASSY

152-22210-00-00

1
Out of stock

22

WASHER,PLATE

90201-14219-00

1
Out of stock

23

WASHER 2

150-22159-00-00

1
Out of stock

24

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

25

NUT, CROWN (650)

95380-10800-00

1

$14.70

In stock

26

FOOTREST, REAR

150-27431-00-00

1
Out of stock

27

COVER, FOOTREST

150-27433-00-00

1
Out of stock

28

BOLT

97013-10040-00

1
Out of stock

29

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

30

HOLDER, CLUTCH WIRE

152-21163-00-00

1
Out of stock

31

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

32

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
