1968 Yamaha YCS1C (YCS1C) Tank Diagram

← All diagrams

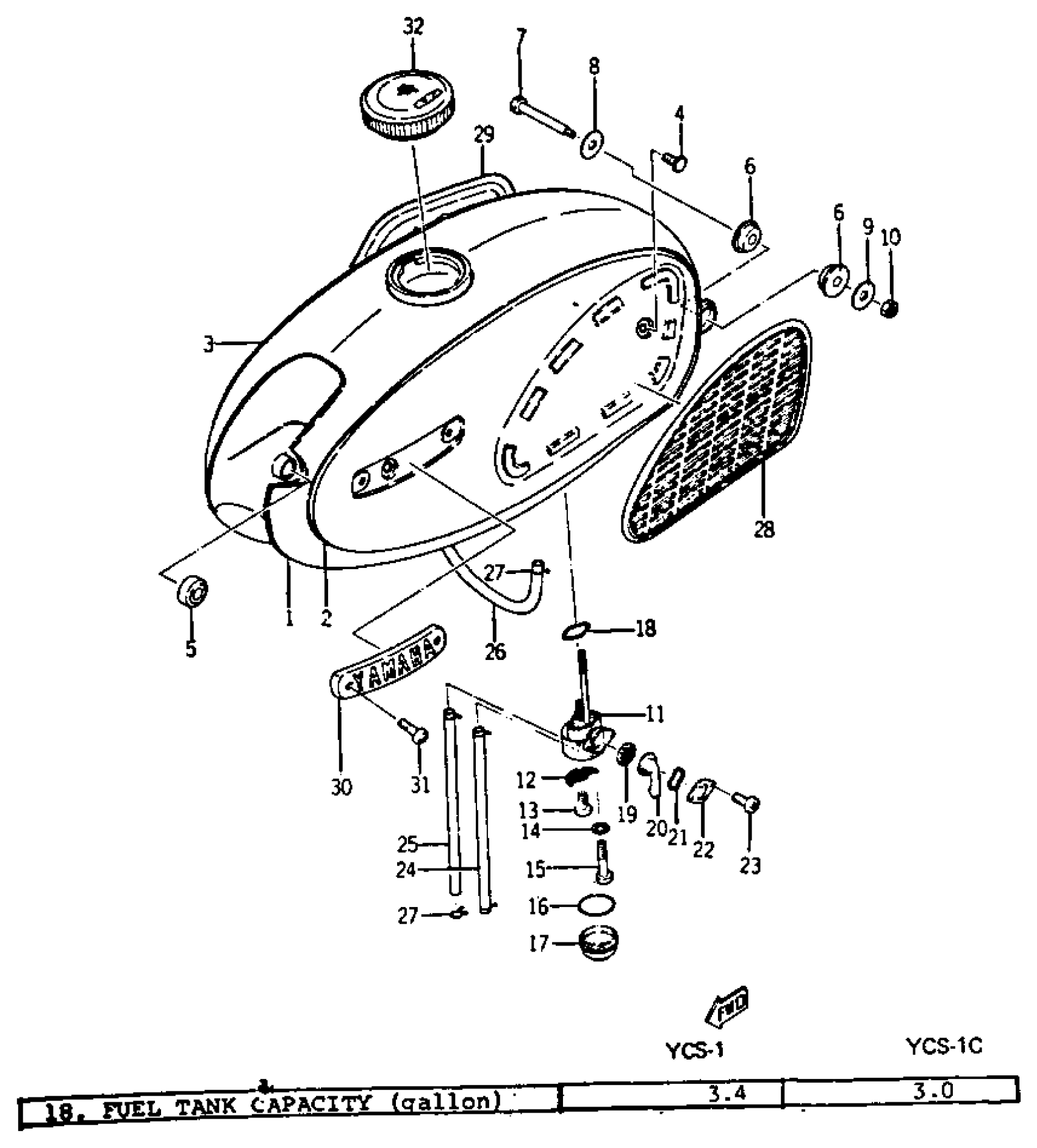

Find the part on the Tank diagram for your 1968 Yamaha YCS1C (YCS1C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1968 Yamaha YCS1C (YCS1C) Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

(174-24110-00-02)

1
Out of stock

1

FUEL TANK

(174-24110-00-03)

1
Out of stock

1

FUEL COCK ASSEMBLY 1

360-24500-00-00

1
Out of stock

1

FUEL COCK ASSEMBLY 1

360-24500-00-00

1
Out of stock

2

COVER, SIDE 1

(174-24129-01-93)

1
Out of stock

3

COVER, SIDE 2

(174-24139-01-46)

1
Out of stock

3

COVER, SIDE 2

(174-24139-01-93)

1
Out of stock

4

BOLT,HEXAGON

97017-06008-00

1
Out of stock

5

DAMPER, LOCATING 1

3TB-24181-00-00

1

$12.29

In stock

6

DAMPER, LOCATING 2

(156-24182-01-00)

1
Out of stock

7

BOLT

(90109-06026-00)

1
Out of stock

8

WASHER, PLATE (5J0)

90201-085E6-00

1
Out of stock

9

WASHER, PLATE

90201-06086-00

1
Out of stock

10

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

12

. NET, FILTER 2

168-24515-00-00

1
Out of stock

13

. SCREW

92503-03006-00

1
Out of stock

13

SCREW, PAN HEAD (J10)

98580-03008-00

—

$2.23

In stock

14

GASKET(J17)

90430-06218-00

—

$2.68

In stock

15

SCREW, PAN HEAD(6H4)

97885-06035-00

1

$6.38

In stock

16

. GASKET

168-24522-00-00

1
Out of stock

17

. CUP, FILTER

360-24521-00-00

1
Out of stock

18

GASKET, BODY

168-24512-00-00

—

$12.27

In stock

19

VALVE

137-24523-00-00

—

$6.57

In stock

20

. LEVER, COCK

168-24524-00-00

1
Out of stock

21

WASHER, WAVE

132-24518-00-00

—
Out of stock

22

PLATE, LEVER FITTING

(132-24525-01-00)

1
Out of stock

23

. SCREW

92503-03006-00

1
Out of stock

23

SCREW, PAN HEAD (J10)

98580-03008-00

—

$2.23

In stock

24

HOSE

(90445-09091-00)

1
Out of stock

25

HOSE (L420)

90445-092K1-00

—

$10.63

In stock

26

HOSE (L420)

90445-092K1-00

—

$10.63

In stock

27

CLIP 101235600

90467-08003-00

—

$6.13

In stock

28

GRIP, KNEE 1

(174-24171-00-00)

1
Out of stock

29

GRIP, KNEE 2

(174-24172-00-00)

1
Out of stock

30

EMBLEM 1

(164-24161-00-00)

1
Out of stock

31

SCREW, PAN HEAD

(92503-04008-00)

1
Out of stock

31

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

32

CAP ASSY

7V5-24610-01-00

—

$42.77

In stock
