1968 Yamaha YAS1C (YAS1C) Kick Diagram

← All diagrams

Find the part on the Kick diagram for your 1968 Yamaha YAS1C (YAS1C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

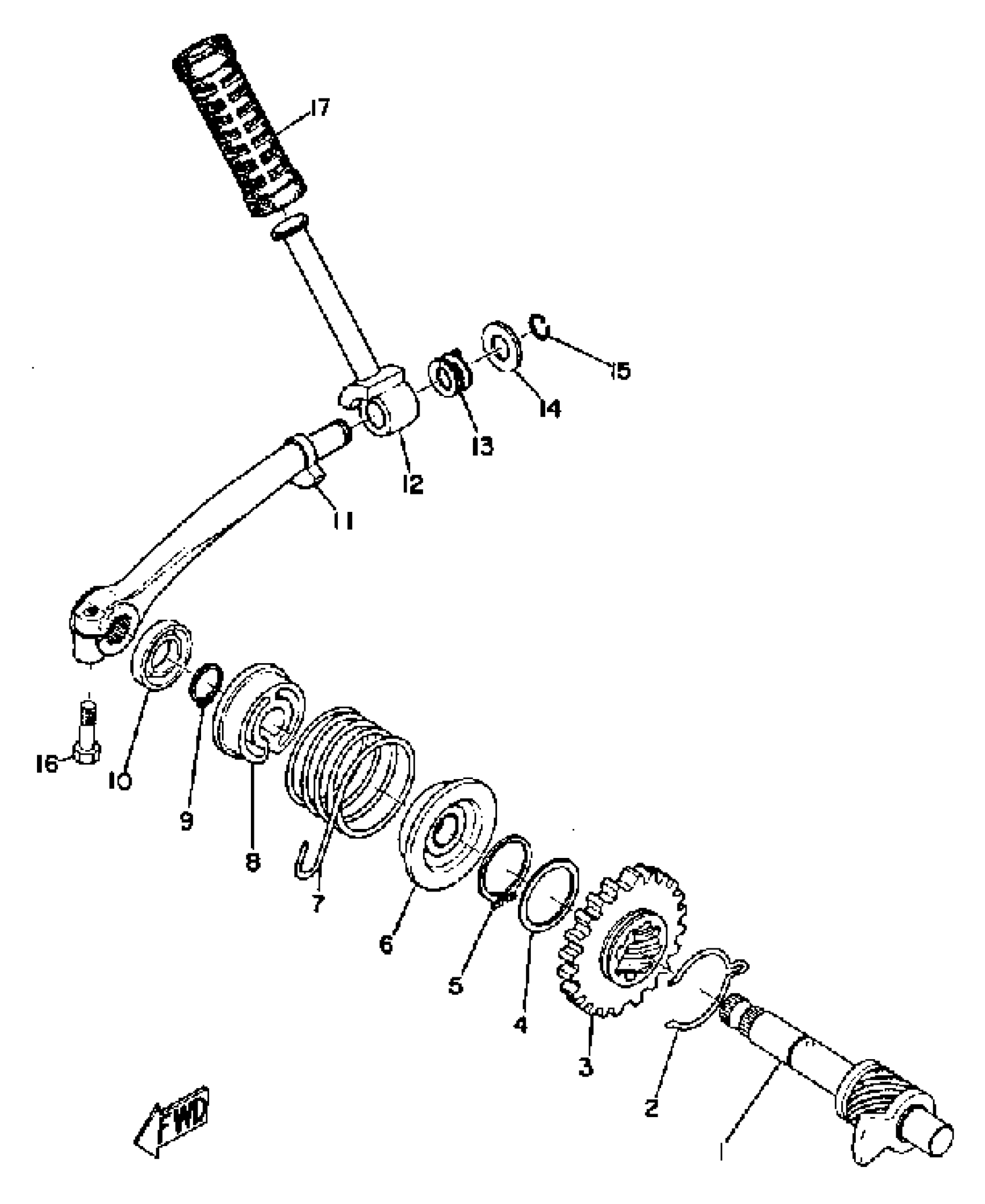

1968 Yamaha YAS1C (YAS1C) Kick Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK CRANK ASSEMBLY

(178-15610-01-93)

1
Out of stock

1

KICK AXLE ASSEMBLY

180-15660-01-00

1
Out of stock

2

CLIP 315156870000

90468-26048-00

1
Out of stock

3

UNAVAILABLE IN PRICE BOOK

180-25641-00-00

1
Out of stock

4

WASHER, PLATE(59W)

90201-253K0-00

1
Out of stock

5

CIRCLIP (256)

93410-25017-00

1
Out of stock

6

GUIDE, KICK SPRING

132-15664-01-00

1
Out of stock

7

SPRING TORSION 304156650000

90508-26136-00

—
Out of stock

8

COVER, KICK SPRING

132-15676-01-00

—
Out of stock

9

CIRCLIP(1AR)

99009-15400-00

1
Out of stock

10

OIL SEAL (15X26X6-102)

93109-15001-00

1
Out of stock

12

LEVER, KICK

(214-15612-09-00)

1
Out of stock

13

SPRING, COMPRESSION (5L1)

90504-18031-00

1
Out of stock

14

WASHER,SPEC'L SHAPE

90209-10210-00

1
Out of stock

15

. CIRCLIP, OUTER

93440-10028-00

1
Out of stock

16

BOLT(3DM)

97024-06020-00

—
Out of stock

17

COVER, KICK LEVER

156-15618-01-00

—
Out of stock
