1968 Yamaha YAS1C (YAS1C) Handle Diagram

← All diagrams

Find the part on the Handle diagram for your 1968 Yamaha YAS1C (YAS1C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

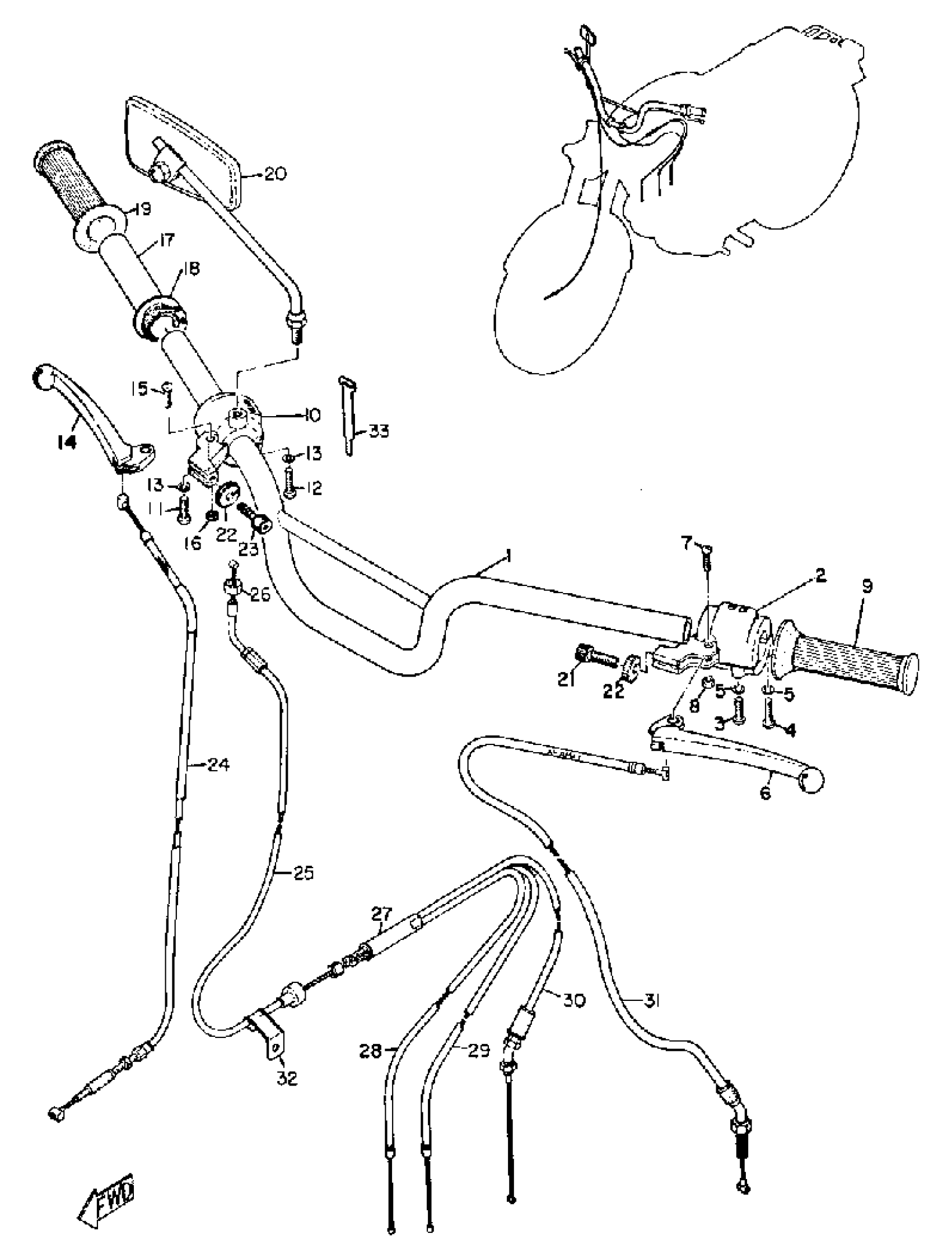

1968 Yamaha YAS1C (YAS1C) Handle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

(157-26111-00-00)

1
Out of stock

2

LEVER HOLDER ASSEMBLY 1

(218-82910-00-94)

1
Out of stock

3

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

4

SCREW, PANHEAD (A93)

98580-05525-00

1

$1.54

In stock

5

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

6

LEVER L

150-83912-00-38

1
Out of stock

7

BOLT

(90109-06333-00)

1
Out of stock

8

NUT(650)

95380-06700-00

1

$6.17

In stock

9

GRIP (LH)

156-26241-00-00

1
Out of stock

10

LEVER HOLDER ASSEMBLY 2

(218-82920-30-94)

1
Out of stock

11

SCREW, PAN HEAD

98517-05020-00

1

$1.35

In stock

11

SCREW, PAN HEAD

98580-05020-00

1

$1.39

In stock

12

SCREW, PANHEAD (A93)

98580-05525-00

1

$1.54

In stock

13

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

15

BOLT

(90109-06333-00)

1
Out of stock

16

NUT(650)

95380-06700-00

1

$6.17

In stock

17

TUBE, GUIDE

1V1-26243-00-00

—

$14.08

In stock

18

RING, LEAF

150-26249-00-00

1
Out of stock

19

GRIP RH

(156-26242-00-00)

1
Out of stock

20

MIRROR ASY

253-26290-00-00

1
Out of stock

21

BOLT

90123-08002-00

—

$8.93

In stock

22

NUT

90179-08030-00

—

$3.78

In stock

23

BOLT

90123-08002-00

—

$8.93

In stock

24

CABLE, BRAKE

(218-26341-00-00)

1
Out of stock

25

CABLE, THROTTLE 1

(183-26311-10-00)

1
Out of stock

26

NUT, HEXAGON

90170-10038-00

—
Out of stock

27

CYLINDER, WIRE

156-26261-01-00

1
Out of stock

28

CABLE, THROTTLE 3

(183-26313-00-00)

1
Out of stock

29

CABLE, THROTTLE 3

(183-26313-00-00)

1
Out of stock

30

CABLE, PUMP

(218-26321-00-00)

1
Out of stock

31

CABLE, CLUTCH

218-26335-01-00

1
Out of stock

32

CLAMP

90465-06013-00

1
Out of stock

33

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

143

LEVER R

(218-83922-30-38)

1
Out of stock
