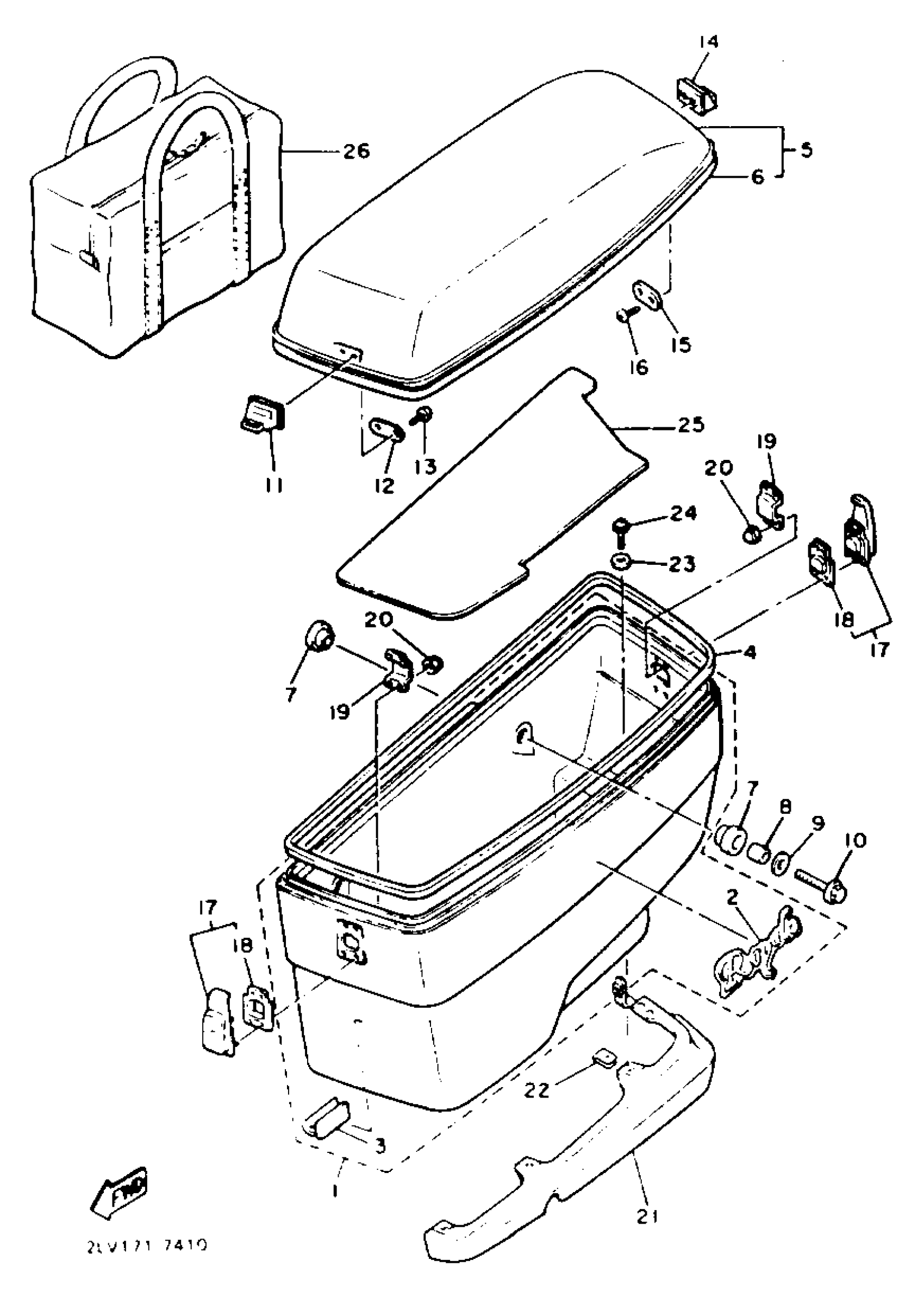

Yamaha XVZ13TC (VENTURE CA) 1987 SADDLEBAG 1 Diagram

#

Description
Price

1

SADDLEBAG 1

1VE-Y2841-00-GA

Unavailable

2

. EMBLEM

1VA-28445-00-00

Unavailable

3

CLAMP(1NL)

90464-62085-00

$7.49

4

. SEAL 1

1NL-28428-00-00

Unavailable

5

SADDLEBAG 2

1VE-Y2842-00-FY

Unavailable

6

. GRAPHIC 1

1VE-2841G-00-00

Unavailable

7

GROMMET(1NL)

90480-20447-00

$8.49

8

COLLAR(82M)

90387-084R5-00

Unavailable

9

WASHER (23T)

90201-065G8-00

$8.49

10

BOLT, FLANGE

95817-06035-00

$7.49

11

PLATE, rubber 1

1NL-Y284J-00-00

Unavailable

12

PLATE 2

1NL-28487-00-00

Unavailable

13

GASKET, EXHAUST

98507-05008-00

$3.55

14

PLATE, rubber 2

1NL-Y284K-00-00

Unavailable

15

PLATE 2

1NL-28487-00-00

Unavailable

16

GASKET, EXHAUST

98507-05008-00

$3.55

17

GRIP,SD-DLBG

1NL-28408-02-00

Unavailable

18

. SEAL 7

1NL-2849F-00-00

Unavailable

19

. COVER LOCK ASSEMBLY 2

1NL-28493-00-00

Unavailable

20

NUT, CAP

95307-05800-00

Unavailable

21

GUARD COMP

1NL-2840K-00-00

Unavailable

22

NUT, SPRING

90183-051A0-00

Unavailable

23

WASHER, PLATE (26H)

90202-05147-00

Unavailable

24

SCREW, WITH WASHER(1NL)

90159-05134-00

Unavailable

25

SEAT

1NL-2848H-00-00

Unavailable

26

BAG INNER 1

1NL-28479-01-00

Unavailable
