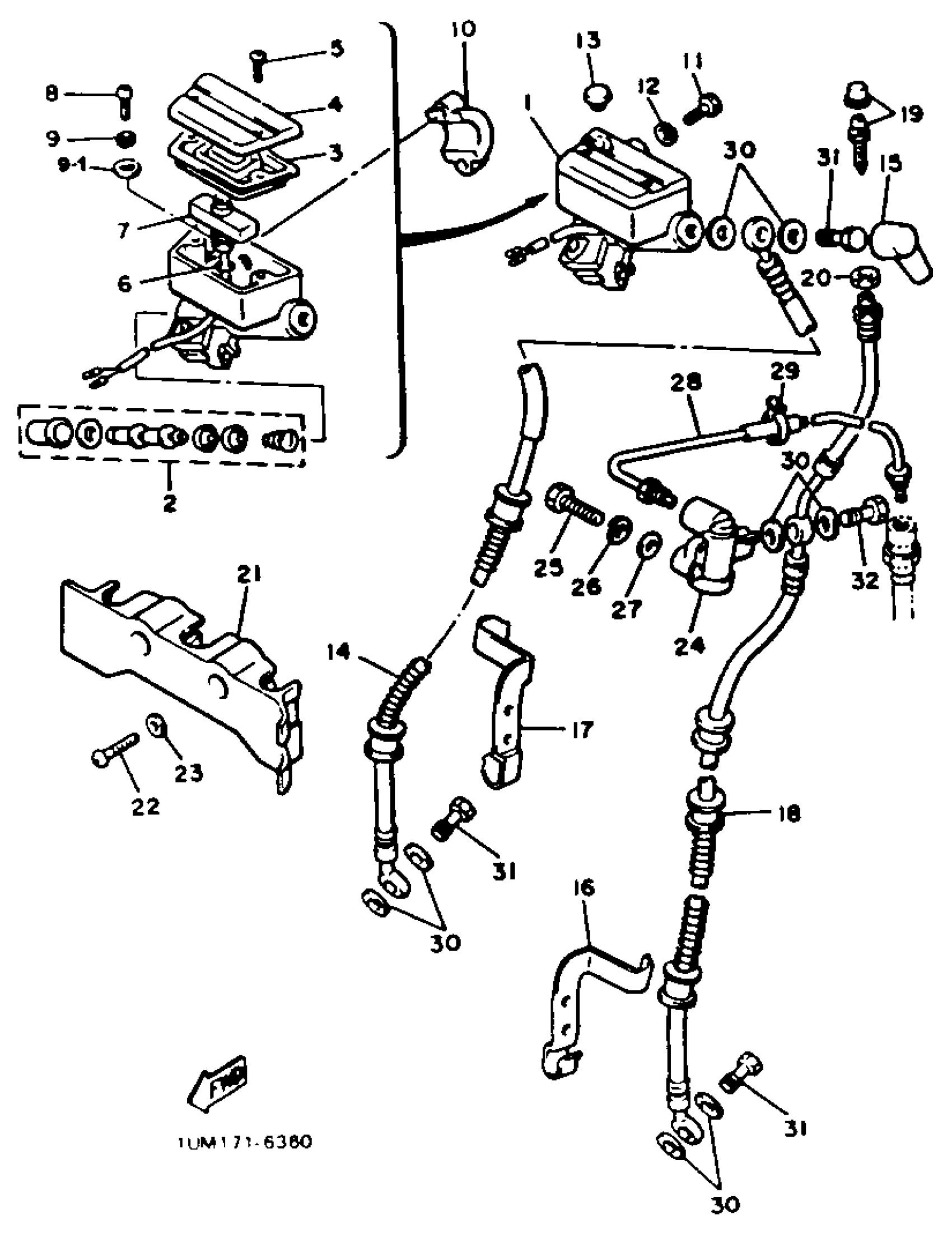

Yamaha XVZ13TC (VENTURE CA) 1987 FRONT MASTER CYLINDER 1 Diagram

#

Description
Price

1

MASTER CYLINDER ASS''Y

1NL-25850-01-00

Unavailable

1

WASHER, PLAIN (646)

92990-04600-00

$5.99

2

CYLINDER KIT, MASTER

4H7-W0041-50-00

Unavailable

3

DIAPHRAGM, RESERVOIR

26H-25854-00-00

Unavailable

4

CAP,RESERVOIR

26H-25852-01-00

Unavailable

5

SCREW, FLAT

98707-04012-00

$2.18

6

. O-RING

93210-08493-00

Unavailable

7

. LEAD SWITCH ASS''Y

26H-85702-00-00

Unavailable

8

SCREW, PAN HEAD

98511-04012-00

Unavailable

9

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

10

BRACKET, MASTER

1J3-25867-00-00

Unavailable

11

BOLT, HEXAGON

97017-06025-00

$4.24

12

WASHER, SPRING

92907-06100-00

$4.25

13

PLUG (341-26329-00)

90338-09012-00

$9.49

14

HOSE, BRAKE 1

1NL-25872-00-00

Unavailable

15

BOOT, MASTER CYLINDER

306-25862-00-00

Unavailable

16

HOLDER, brake hose 1

[26-H2587-50-10

Unavailable

17

HOLDER, brake hose 2

[26-H2587-60-10

Unavailable

18

HOSE, BRAKE 2

99999-02730-00

Unavailable

19

BLEED SCREW KIT

1NL-W0048-00-00

Unavailable

20

NUT, HEXAGON

95337-12600-00

Unavailable

21

HOLDER, brake hose

26H-25886-01-00

Unavailable

22

SCREW, PAN HEAD (76T)

98517-06025-00

Unavailable

23

WASHER(6TA)

92907-06600-00

Unavailable

24

METERING VALVE ASS''Y

1NL-25940-00-00

Unavailable

25

BOLT, HEXAGON

97017-06030-00

Unavailable

26

WASHER, SPRING

92907-06100-00

$4.25

27

WASHER(6TA)

92907-06600-00

Unavailable

28

PIPE, brake

26H-25871-00-00

Unavailable

29

BAND, SWITCH CORD

437-83936-11-00

Unavailable

30

WASHER, PLATE(481)

90201-10118-00

Unavailable

31

BOLT, UNION(3GM)

90401-10159-00

Unavailable

32

BOLT, union

90401-10114-00

Unavailable
