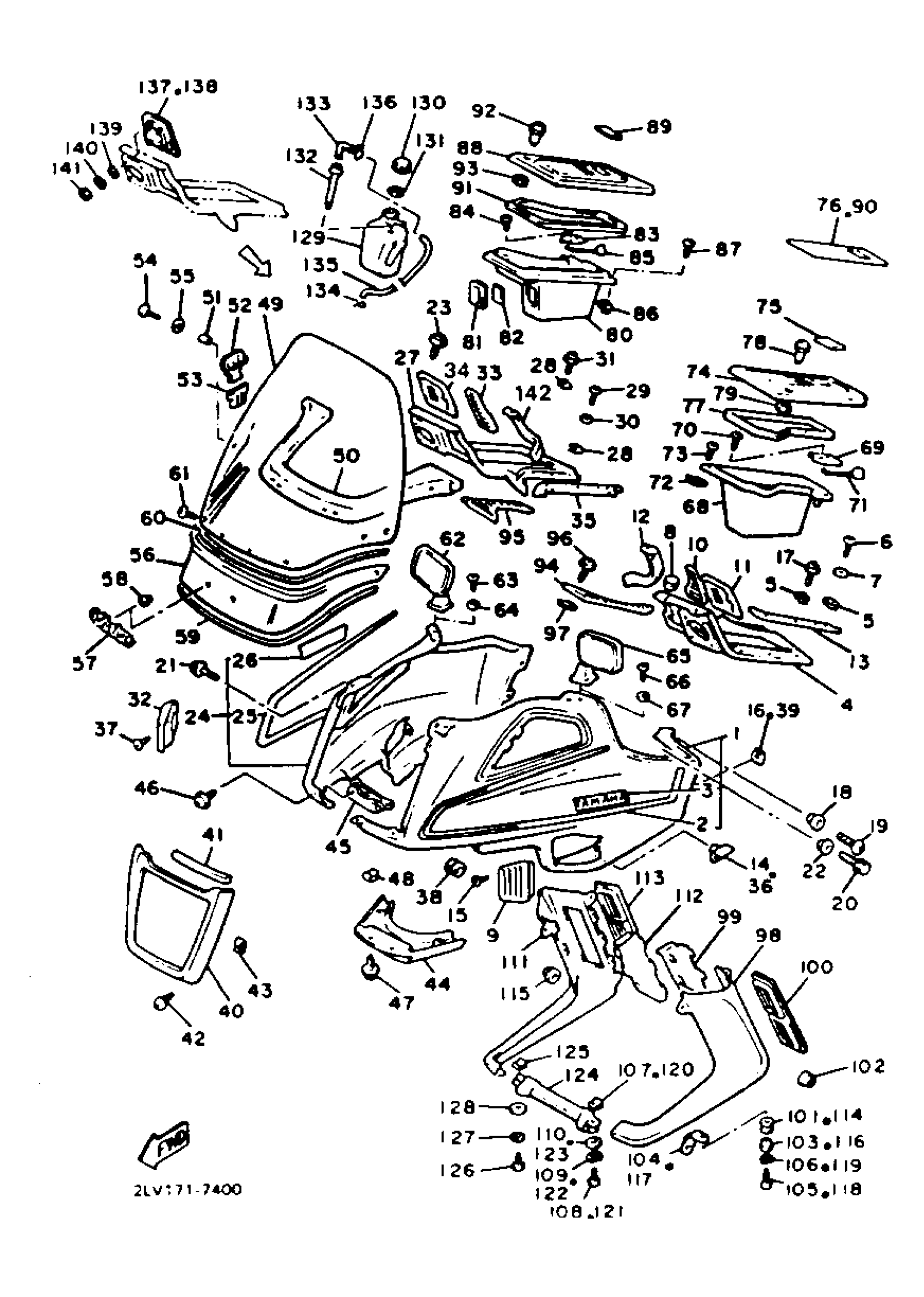

Yamaha XVZ13TC (VENTURE CA) 1987 FAIRING Diagram
#
1
BODY, front upper 1
1VE-Y283G-00-5Y
Unavailable
2
. GRAPHIC 1
[1V-E2839-10-00
Unavailable
3
EMBLEM
26H-28328-00-00
Unavailable
4
PANEL, console 1
26H-2837L-02-00
Unavailable
8
CAP
26H-28349-00-00
Unavailable
9
GRILL, air intake 1
26H-2837N-01-33
Unavailable
10
GRILL, air outlet 1
26H-2837V-00-00
Unavailable
11
PANEL, 1
26H-2835U-01-00
Unavailable
12
MOLE 5
26H-2834G-00-00
Unavailable
13
DAMPER, locating 1
26H-2836T-00-00
Unavailable
14
DAMPER
26H-28372-00-00
Unavailable
15
SCREW, TAPPING (5G2)
90164-04006-00
Unavailable
16
NUT, SPRING (26H)
90183-04027-00
Unavailable
17
SCREW, WITH WASHER(1NL)
90159-05134-00
Unavailable
18
COLLAR
90387-06107-00
Unavailable
19
SCREW, PAN
98507-06014-00
Unavailable
20
BOLT, FLANGE
95817-06020-00
Unavailable
21
SCREW, W/WASHER (4L0)
90159-06060-00
Unavailable
22
COLLAR (8G8)
90387-06681-00
Unavailable
23
SCREW, WITH WASHER(1NL)
90159-05134-00
Unavailable
24
BODY, front upper 2
1VE-Y283H-00-5Y
Unavailable
25
. GRAPHIC 2
[1V-E2839-20-00
Unavailable
26
EMBLEM
26H-28338-00-00
Unavailable
27
PANEL, console 2
26H-2837M-01-00
Unavailable
31
SCREW, WITH WASHER(1NL)
90159-05134-00
Unavailable
32
GRILL, air intake 2
26H-2837R-01-33
Unavailable
33
GRILL, air outlet 2
26H-2837W-00-00
Unavailable
34
PANEL, 1
26H-2835U-01-00
Unavailable
35
DAMPER, locating 2
26H-2836U-00-00
Unavailable
36
DAMPER
26H-28372-00-00
Unavailable
37
SCREW, TAPPING (5G2)
90164-04006-00
Unavailable
38
GROMMET
90480-40367-00
Unavailable
39
NUT, SPRING (26H)
90183-04027-00
Unavailable
40
RIM, headlight
1NL-2835A-00-GA
Unavailable
41
PAD
1NL-28378-00-00
Unavailable
42
SCREW, TAPPING (5G2)
90164-04006-00
Unavailable
43
NUT, SPRING (26H)
90183-04027-00
Unavailable
44
GRILL, air intake 3
26H-2837T-00-GA
Unavailable
45
PLATE
1NL-28336-00-00
Unavailable
46
SCREW, WITH WASHER(1NL)
90159-05134-00
Unavailable
47
SCREW, WITH WASHER(1NL)
90159-05134-00
Unavailable
49
SCREEN (41R-2837U-00)
ABA-26H01-11-00
Unavailable
50
MOLE 1
26H-28345-00-00
Unavailable
51
COLLAR
90387-056J6-00
Unavailable
52
PLATE, front
1NL-28361-00-00
Unavailable
53
DAMPER, SIDE COVER
2N4-21717-00-00
Unavailable
55
WASHER(3SX)
92907-05100-00
Unavailable
56
MOLE 2
1NL-28346-00-00
Unavailable
57
EMBLEM 4 (26H-21784-00)
26H-21783-00-00
Unavailable
58
GROMMET(1KT)
90480-01445-00
Unavailable
59
MOLD 3
1NL-28347-01-00
Unavailable
60
NOLE 4
1NL-28348-01-00
Unavailable
61
SCREW (26H)
90149-05185-00
Unavailable
62
REAR VIEW MIRROR ASSY (RIGHT)
26H-26290-20-00
Unavailable
63
SCREW, PAN HEAD
98580-05020-00
Unavailable
64
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
65
REAR VIEW MIRROR ASSY (LEFT)
26H-26290-30-00
Unavailable
66
SCREW, PAN HEAD
98580-05020-00
Unavailable
67
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
68
BOX 1
26H-2838K-01-00
Unavailable
69
PLATE, lock 1
26H-28216-00-00
Unavailable
70
SCREW, PAN TAP.2 SLIT
97707-40610-00
Unavailable
71
PIN, lock
26H-28235-00-00
Unavailable
72
NUT, SPRING (26H)
90183-04027-00
Unavailable
73
SCREW, TAPPING (5G2)
90164-04006-00
Unavailable
74
LID 1
26H-2839K-01-00
Unavailable
75
EMBLEM 7
(33N-21787-00-00)
Unavailable
76
SEAT 1
26H-2838G-00-00
Unavailable
77
SEAL, box 1
26H-2838M-01-00
Unavailable
78
SIDE COVER LOCK ASSY
26H-21708-00-00
Unavailable
79
NUT, HEXAGON (1E6)
90170-22187-00
Unavailable
80
BOX 2
26H-2838L-01-00
Unavailable
81
HOLDER
26H-2839N-00-00
Unavailable
82
PANEL, access
26H-2839R-00-00
Unavailable
83
PLATE, lock 2
26H-28226-00-00
Unavailable
84
SCREW, PAN TAP.2 SLIT
97707-40610-00
Unavailable
85
PIN, lock
26H-28235-00-00
Unavailable
86
NUT, SPRING (26H)
90183-04027-00
Unavailable
87
SCREW, TAPPING (5G2)
90164-04006-00
Unavailable
88
LID 2
26H-2839L-01-00
Unavailable
89
EMBLEM 7
(33N-21787-00-00)
Unavailable
90
SEAT 1
26H-2838G-00-00
Unavailable
91
SEAL, box 2
26H-2839M-00-00
Unavailable
92
SIDE COVER LOCK ASSY
26H-21708-00-00
Unavailable
93
NUT, HEXAGON (1E6)
90170-22187-00
Unavailable
94
HOOD 1
26H-2835E-00-00
Unavailable
95
HOOD 2
26H-2835F-00-00
Unavailable
96
SCREW, WITH WASHER(1NL)
90159-05134-00
Unavailable
98
BODY, front lower 1
26H-2835J-01-GA
Unavailable
99
PANEL, inner 4
26H-2836N-02-00
Unavailable
100
GRILL, air outlet 3
26H-2837X-00-00
Unavailable
101
GROMMET (1E6)
90480-15058-00
Unavailable
102
GROMMET
90480-08374-00
Unavailable
103
COLLAR (4N0)
90387-071E0-00
Unavailable
104
BRACKET 22
26H-2833X-02-00
Unavailable
105
SCREW PAN HEAD
98580-06020-00
Unavailable
106
WASHER, SPRING
92995-06100-00
Unavailable
107
NUT, SPRING (26H)
90183-06023-00
Unavailable
108
SCREW, PAN
98507-06014-00
Unavailable
109
WASHER, SPRING
92995-06100-00
Unavailable
110
WASHER, PLAIN (646)
92990-06600-00
Unavailable
111
BODY, front lower 2
26H-2835K-01-GA
Unavailable
112
PANEL, inner 5
26H-2836R-01-00
Unavailable
113
GRILL, air outlet 4
26H-2837Y-00-00
Unavailable
114
GROMMET (1E6)
90480-15058-00
Unavailable
115
GROMMET
90480-08371-00
Unavailable
116
COLLAR (4N0)
90387-071E0-00
Unavailable
117
BRACKET 23
26H-2833Y-02-00
Unavailable
118
SCREW PAN HEAD
98580-06020-00
Unavailable
119
WASHER, SPRING
92995-06100-00
Unavailable
120
NUT, SPRING (26H)
90183-06023-00
Unavailable
121
SCREW, PAN
98507-06014-00
Unavailable
122
WASHER, SPRING
92995-06100-00
Unavailable
123
WASHER, PLAIN (646)
92990-06600-00
Unavailable
124
FIN
26H-2835M-00-GA
Unavailable
125
NUT, SPRING (26H)
90183-06023-00
Unavailable
126
SCREW, PAN HEAD(3TJ)
98507-06016-00
Unavailable
127
WASHER, SPRING
92907-06100-00
Unavailable
128
WASHER(6TA)
92907-06600-00
Unavailable
129
TANK, recovery
26H-21871-01-00
Unavailable
130
CAP
26H-21875-00-00
Unavailable
131
GASKET
26H-21874-00-00
Unavailable
132
PIPE 1
26H-21816-01-00
Unavailable
133
ELBOW
26H-21828-00-00
Unavailable
134
CLIP (7K7)
90467-11044-00
Unavailable
135
HOSE (M201)
91A10-07150-00
Unavailable
136
CLIP
90467-100A1-00
Unavailable
137
GRILLE, speaker 1
26H-88163-00-00
Unavailable
138
GRILLE, speaker 2
26H-88173-00-00
Unavailable
139
WASHER, PLATE (8J0)
90201-05725-00
Unavailable
140
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
141
NUT, HEXAGON (663)
95380-05600-00
Unavailable
142
MOLE 6
26H-2834H-00-00
Unavailable
