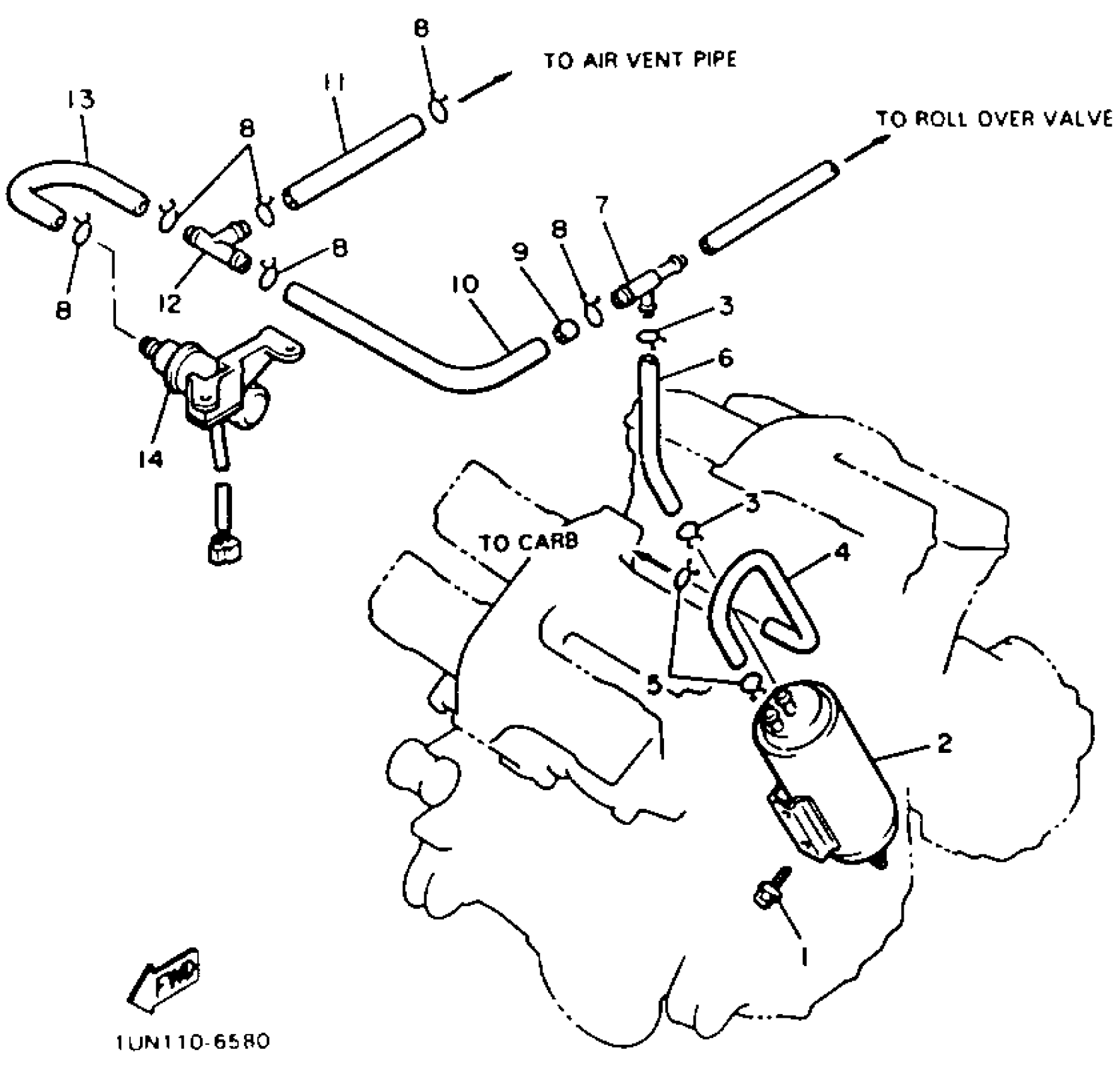

Yamaha XVZ13TC (VENTURE CA) 1987 EMISSION CONTROL DEVICE Diagram

#

Description

Price

1

BOLT, FLANGE

95817-06010-00

$3.85

2

CANISTER ASSY

4BE-24170-00-00

Unavailable

3

CLIP

90-46709-10-30

Unavailable

4

PIPE 3

59-K2431-30-00

Unavailable

5

CLIP

90467-100A1-00

$6.08

6

HOSE (L420)

90445-092K1-00

$10.47

7

WAY 3

90413-11026-00

Unavailable

8

CLIP(6M6)

90467-13M13-00

$7.39

9

NOZZLE 1

1U-N1513-80-00

Unavailable

10

PIPE 3

1U-N1487-30-00

Unavailable

11

HOSE

90445-135E2-00

Unavailable

12

WAY 3

90413-11025-00

Unavailable

13

PIPE 2

1U-N1487-20-00

Unavailable

14

VALVE, OUTER VENT CONTROL

1UN-14895-00-00

Unavailable
