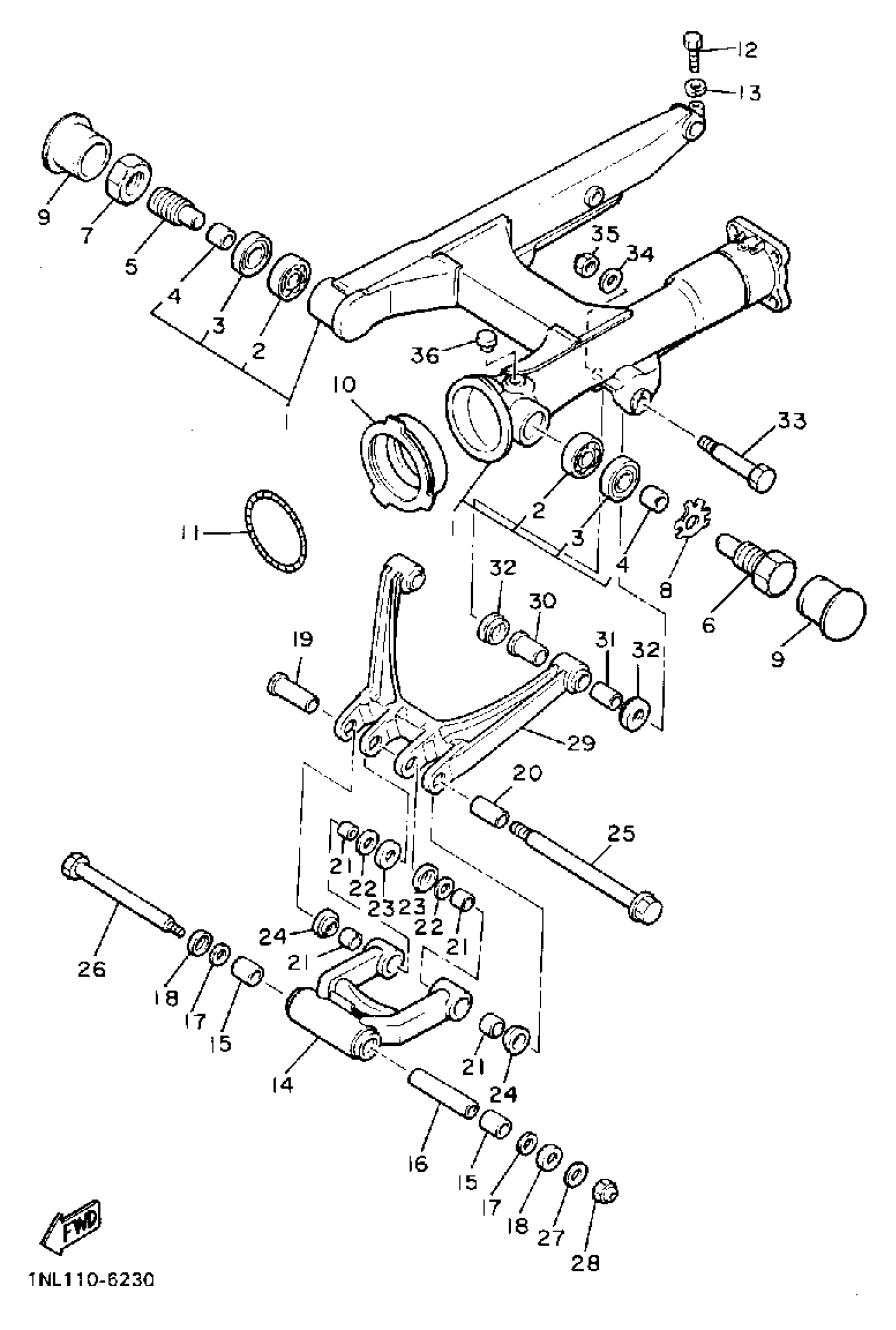

Yamaha XVZ13DSC (VENTURE ROYALE CA) 1986 SWING ARM Diagram
#
1
REAR ARM
1NL-W2211-00-35
Unavailable
2
BEARING (26H)
93332-00051-00
Unavailable
2
BEARING (26H)
93332-00051-00
Unavailable
5
SHAFT, PIVOT 2
4NK-2214H-00-00
Unavailable
6
SHAFT, PIVOT
4NK-22141-09-00
Unavailable
7
NUT
26H-22143-00-00
Unavailable
8
WASHER, lock
90215-25216-00
Unavailable
9
PLUG, blind
26H-21279-00-00
Unavailable
10
BOOT, RUBBER
26H-22189-00-00
Unavailable
14
ARM, RELAY
41R-2217A-00-35
Unavailable
15
BUSH
90386-20116-00
Unavailable
16
COLLAR
90387-144H4-00
Unavailable
17
WASHER, plate
90202-20144-00
Unavailable
18
COVER, thrust 1
26H-22128-00-00
Unavailable
19
COLLAR
90387-124H2-00
Unavailable
20
COLLAR (26H)
90387-124H3-00
Unavailable
21
BUSH, SOLID
90381-18053-00
Unavailable
22
WASHER, PLATE
90202-18143-00
Unavailable
23
COVER, THRUST 2
26H-22129-00-00
Unavailable
24
COVER, dust
26H-2217H-00-00
Unavailable
25
BOLT, WASHER BASED
90105-10251-00
Unavailable
26
BOLT
90101-12578-00
Unavailable
27
WASHER, PLATE
90201-12027-00
Unavailable
28
NUT, SELF LOCKING (23X)
90185-12119-00
Unavailable
29
ARM 1
26H-2217M-00-00
Unavailable
30
BUSH, SOLID
90381-18049-00
Unavailable
31
COLLAR
90387-124H1-00
Unavailable
32
COVER, THRUST 2
26H-22129-00-00
Unavailable
33
BOLT
90109-10720-00
Unavailable
34
WASHER, PLATE (17K)
90201-106F2-00
Unavailable
35
NUT, U
90185-10037-00
Unavailable
36
PLUG (4X7)
90338-20113-00
Unavailable
