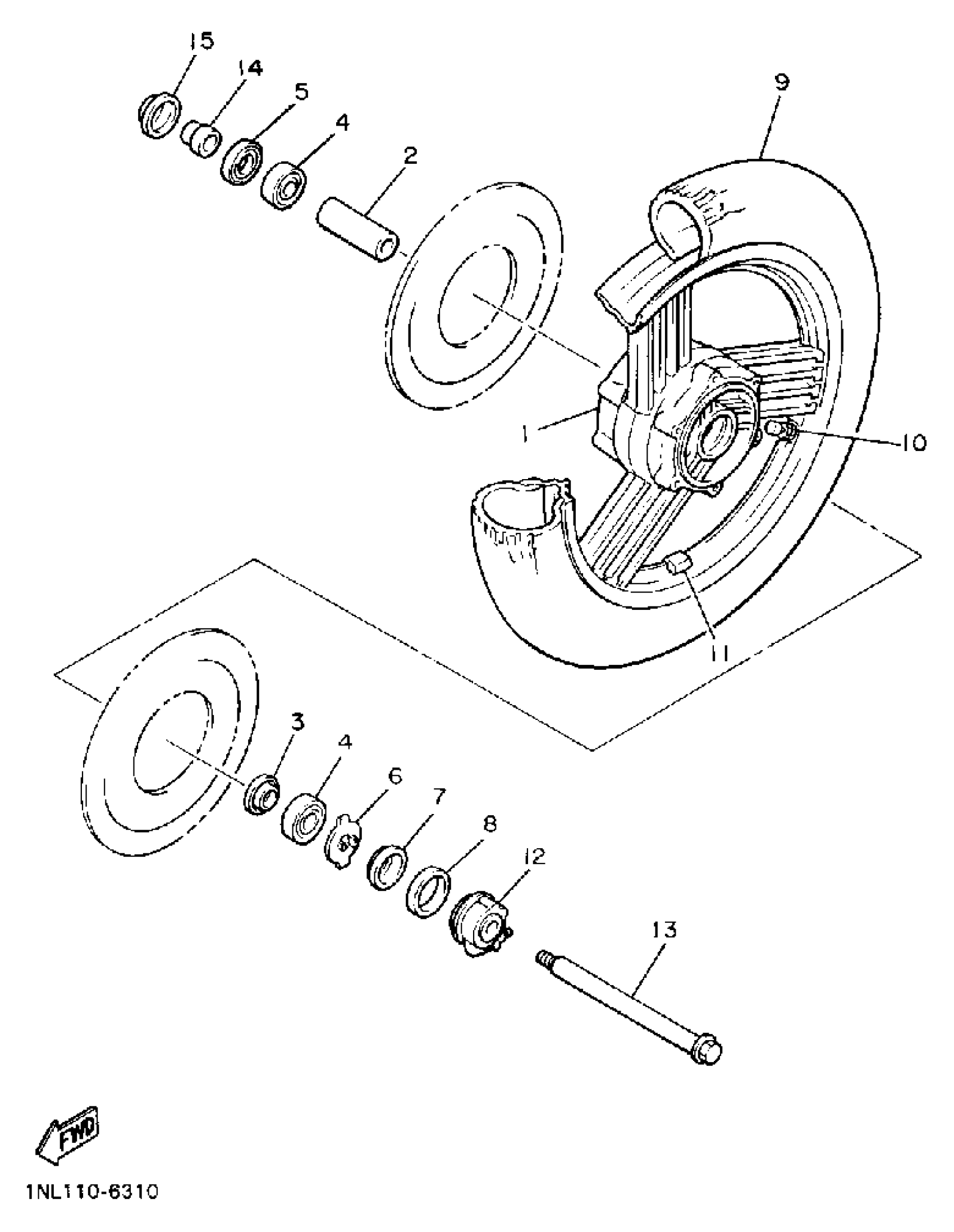

Yamaha XVZ13DSC (VENTURE ROYALE CA) 1986 FRONT WHEEL Diagram

#

Description
Price

1

WHEEL, CAST FRONT

41R-25168-00-98

Unavailable

2

SPACER

90560-17233-00

Unavailable

3

FLANGE, SPACER

146-25315-00-00

$6.38

4

BEARING(4HM)

93306-30317-00

$32.19

5

OIL SEAL (28X47X7-102)

93102-28022-00

$12.53

6

CLUTCH, METER (371,447)

341-25149-00-00

$6.45

7

RETAINER, CLUTCH (371,447)

341-25846-00-00

$6.44

8

OIL SEAL (45X56X6)

93105-45017-00

$11.51

9

TIRE (MCS 120/90-18 65H)

94112-187G9-00

Unavailable

10

VALVE, RIM (31A)

93900-00031-00

$15.11

11

BALANCER, WHEEL

5MT-25398-00-00

$15.51

11

BALANCER, WHEEL

5MT-25398-00-00

$15.51

11

BALANCER, WHEEL

5MT-25398-00-00

$15.51

12

GEAR UNIT ASSY

4TR-25190-20-00

$110.32

13

AXLE, wheel

1NL-25181-00-00

Unavailable

14

COLLAR

90387-173H2-00

Unavailable

15

COVER, HUB DUST

341-25118-00-00

Unavailable
