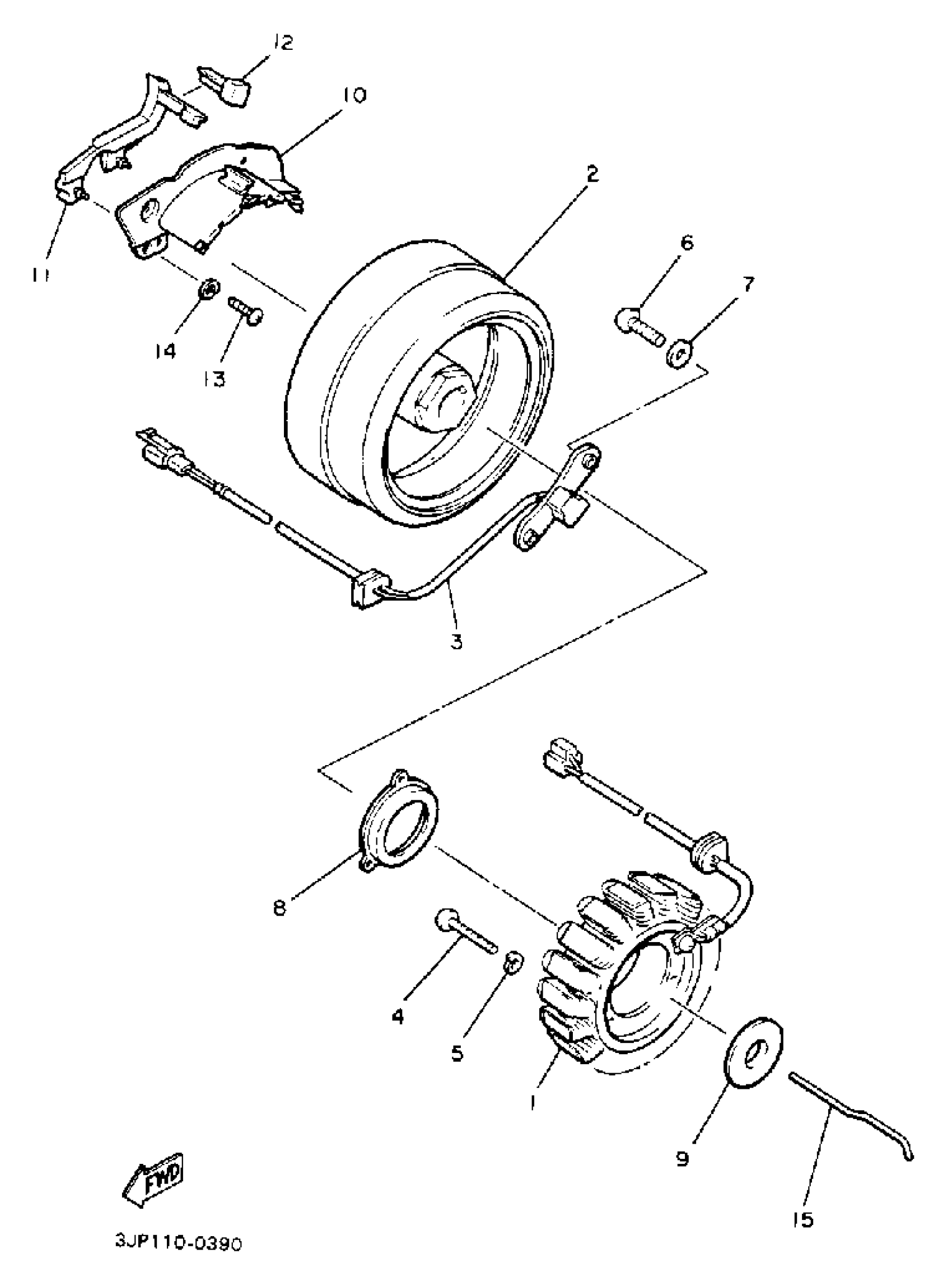

Yamaha XVZ13DDC (VENTURE ROYALE CA) 1992 GENERATOR Diagram

#

Description
Price

1

STATOR ASS''Y

3JJ-81410-00-00

Unavailable

2

ROTOR ASS''Y

3JJ-81450-00-00

Unavailable

3

PICK-UP ASSY

3UF-81670-00-00

Unavailable

4

SCREW PAN HEAD

98580-06040-00

$5.87

5

WASHER, SPRING

92995-06100-00

$2.83

6

SCREW, PAN

98507-06014-00

$5.88

7

WASHER, PLATE

90201-06045-00

$5.88

8

PLATE, STAT0R

59J-15113-00-00

$5.12

9

PLATE, C0VER

59J-15191-00-00

$4.08

10

SEPARATOR, oil

1F-K1535-80-00

Unavailable

11

SEAL, CRANKCASE

1FK-15379-00-00

$14.33

12

SEAL, PROTECTOR

1FK-15494-00-00

Unavailable

13

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

14

WASHER, SPRING

92995-06100-00

$2.83

15

SHAFT 1

59J-11455-00-00

$10.56
