1990 Yamaha Venture Royale CA (XVZ13DAC) Leveling Unit Diagram

← All diagrams

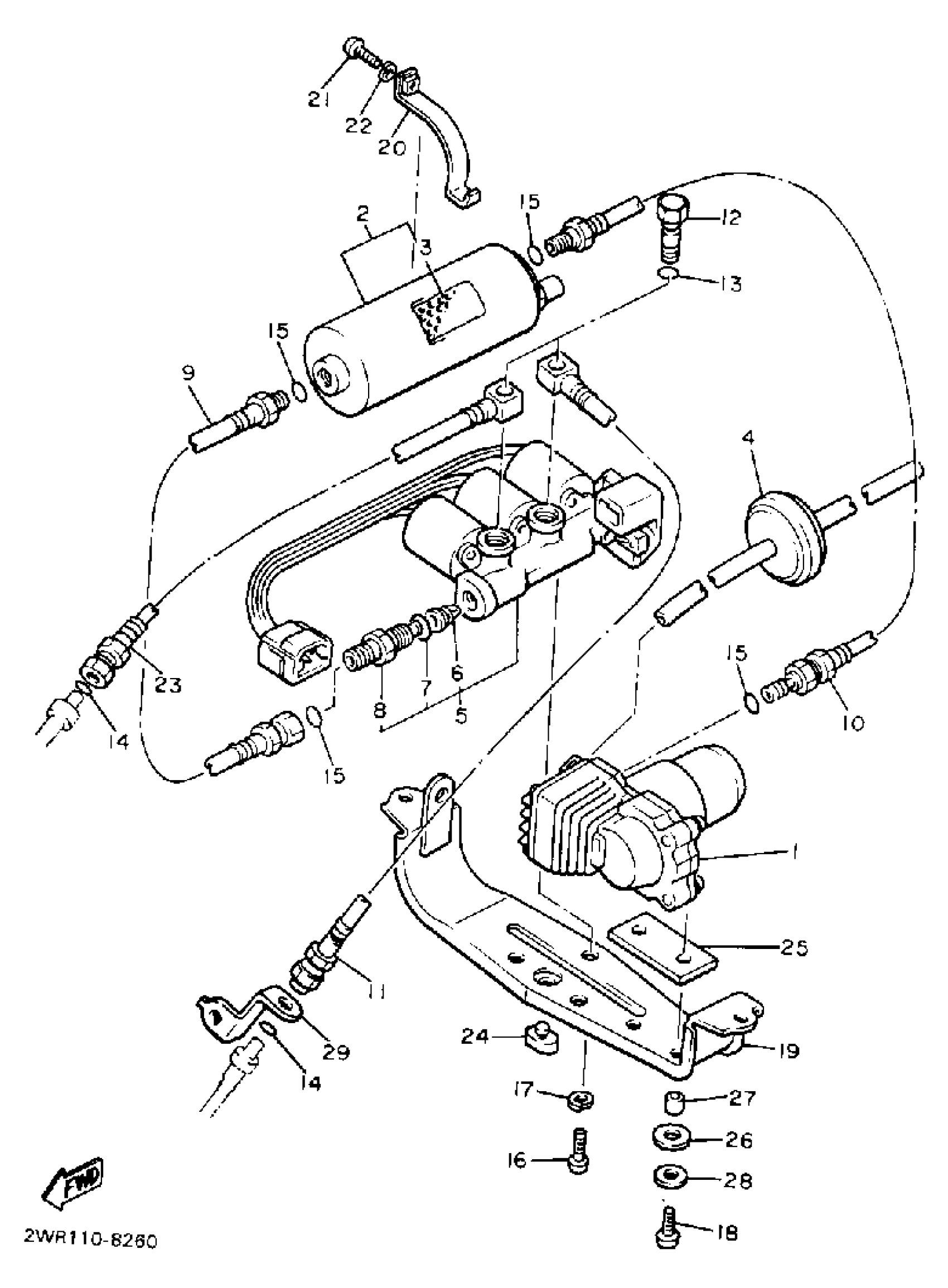

Find the part on the Leveling Unit diagram for your 1990 Yamaha Venture Royale CA (XVZ13DAC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Venture Royale CA (XVZ13DAC) Leveling Unit Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AIR COMPRESSOR ASS''Y

31M-22910-00-00

1
Out of stock

2

DRYER AAS''Y

31M-22940-00-00

1
Out of stock

3

. DESICCANT

31M-22945-00-00

1
Out of stock

4

SUCTION FILTER ASS''Y

31M-22950-00-00

1
Out of stock

5

VALVE ASS''Y

31M-22960-00-00

1
Out of stock

6

. VALVE, reed

31M-13512-00-00

1
Out of stock

7

O-RING (26H)

93210-06632-00

1

$6.68

In stock

8

. ADAPTER

31M-22962-00-00

1
Out of stock

9

HOSE ASS''Y 1

31M-22906-00-00

1
Out of stock

10

HOSE ASS''Y 2

31M-22907-00-00

1
Out of stock

11

HOSE ASS''Y 3

31M-22908-00-00

1
Out of stock

12

BOLT, union

31M-22955-00-00

1
Out of stock

13

O-RING (4G0)

93210-11453-00

1

$5.86

In stock

14

O-RING

93210-05098-00

1

$2.78

In stock

15

O-RING (26H)

93210-06632-00

1

$6.68

In stock

16

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

19

BRACKET, read stay

31M-21688-00-00

1
Out of stock

20

BAND

31M-21647-00-00

1
Out of stock

21

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

22

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

23

HOSE ASS''Y 4

31M-22909-00-00

1
Out of stock

24

HOSE ASSEMBLY 4

(31M-22958-00-00)

1
Out of stock

25

DAMPER

(31M-22928-00-00)

1
Out of stock

26

WASHER, PLATE

(90201-083H9-00)

1
Out of stock

27

COLLAR (3J0)

90387-05682-00

—

$0.78

In stock

28

WASHER PLATE 803835240000

90201-05032-00

—

$6.71

In stock

29

BRACKET, HOSE

(31M-22957-00-00)

1
Out of stock
