1990 Yamaha Venture Royale CA (XVZ13DAC) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1990 Yamaha Venture Royale CA (XVZ13DAC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

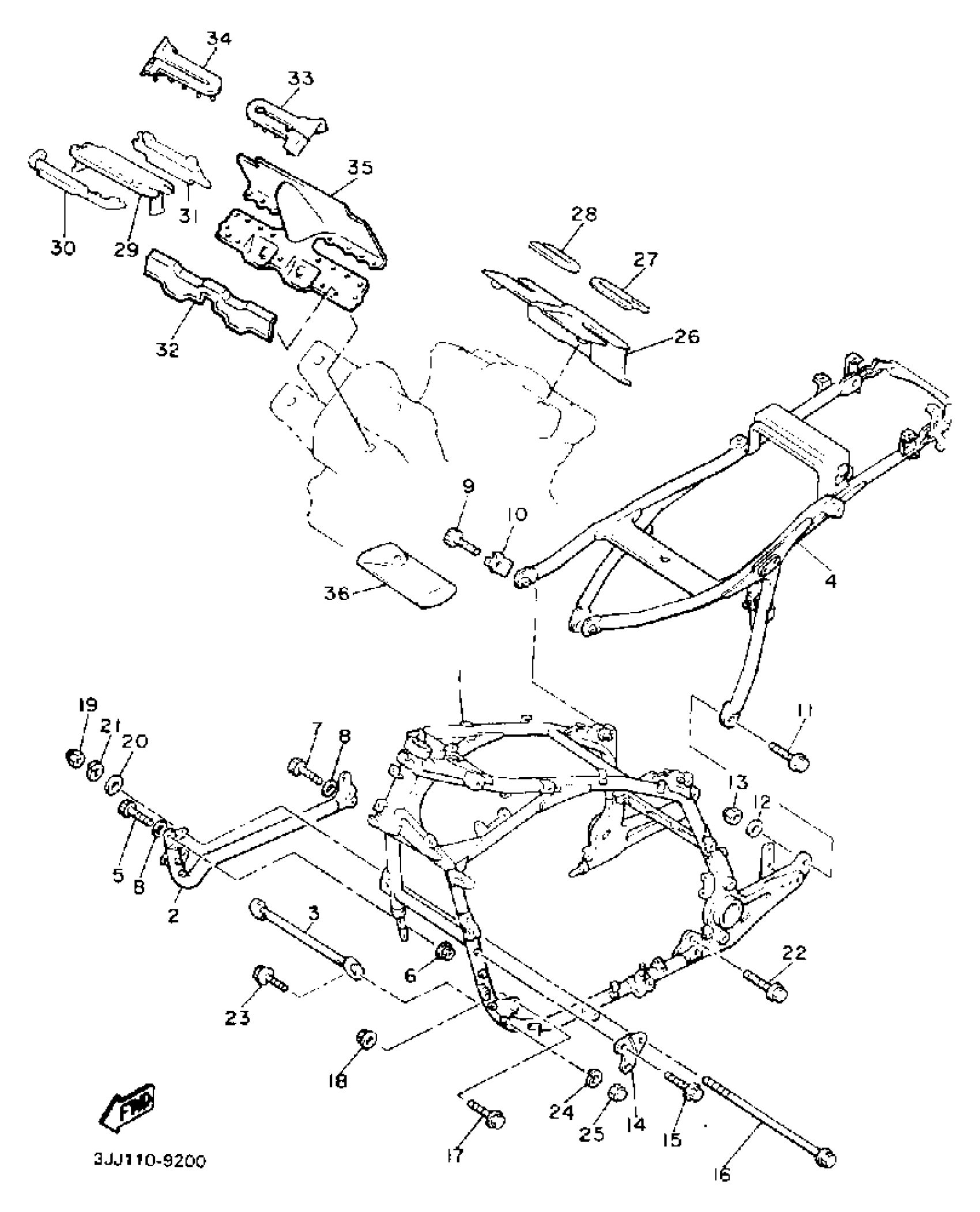

1990 Yamaha Venture Royale CA (XVZ13DAC) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP

2WR-21110-00-33

1
Out of stock

2

DOWN TUBE COMP

2WR-21140-00-33

1
Out of stock

3

CROSS BAR COMPLETE

26H-2141V-00-00

1
Out of stock

4

REAR FRAME COMP

1NL-21190-00-33

1
Out of stock

5

BOLT,SOCKET

91317-10040-00

1
Out of stock

6

NUT

90179-10321-00

1
Out of stock

7

BOLT, SOCKET

91317-10030-00

1
Out of stock

8

WASHER (7A9)

90201-100F7-00

1
Out of stock

9

BOLT (583)

90101-10303-00

1
Out of stock

10

WASHER, LOCK

90215-10192-00

1
Out of stock

11

BOLT, FLANGE(4GB)

95817-10045-00

1
Out of stock

12

WASHER, PLATE (2J2)

90201-10696-00

1
Out of stock

13

NUT, CROWN(3BM)

90176-10073-00

1
Out of stock

14

STAY, ENGINE 2

(26H-21315-00-00)

1
Out of stock

15

BOLT, FLANGE(JN5)

95817-08016-00

1
Out of stock

16

BOLT, washer based

90105-10254-00

1
Out of stock

17

BOLT, WASHER BASED(4EB)

90105-10788-00

—
Out of stock

18

NUT, FLANGE(3BM)

95704-10500-00

—
Out of stock

19

NUT, CROWN (650)

95380-10800-00

1
Out of stock

20

958-69527-00 WASHER, PLAIN

92990-10200-00

—
Out of stock

21

YBS67-10 WASHER, SPRING

92990-10100-00

—
Out of stock

22

BOLT, WASHER BASED (26H)

90105-12252-00

—
Out of stock

23

BOLT, FLANGE

95817-08060-00

—
Out of stock

24

WASHER(JN5)

92907-08100-00

—
Out of stock

25

NUT, crown

90176-08034-00

1
Out of stock

26

COVER 2

26H-2117M-00-00

1
Out of stock

27

COVER 3

26H-2117N-00-00

1
Out of stock

28

COVER 4

26H-2117R-00-00

1
Out of stock

29

COVER 7

26H-2117V-00-00

1
Out of stock

30

COVER 5

26H-2117T-00-00

1
Out of stock

31

COVER 6

26H-2117U-00-00

1
Out of stock

32

COVER 8

26H-2117W-00-00

1
Out of stock

33

COVER 9

26H-2117X-00-00

1
Out of stock

34

COVER 10

26H-2117Y-00-00

1
Out of stock

35

COVER

26H-2117F-00-00

1
Out of stock

36

TOOL KIT

3JJ-28100-00-00

1
Out of stock
