1990 Yamaha Venture Royale CA (XVZ13DAC) Control Unit Diagram

← All diagrams

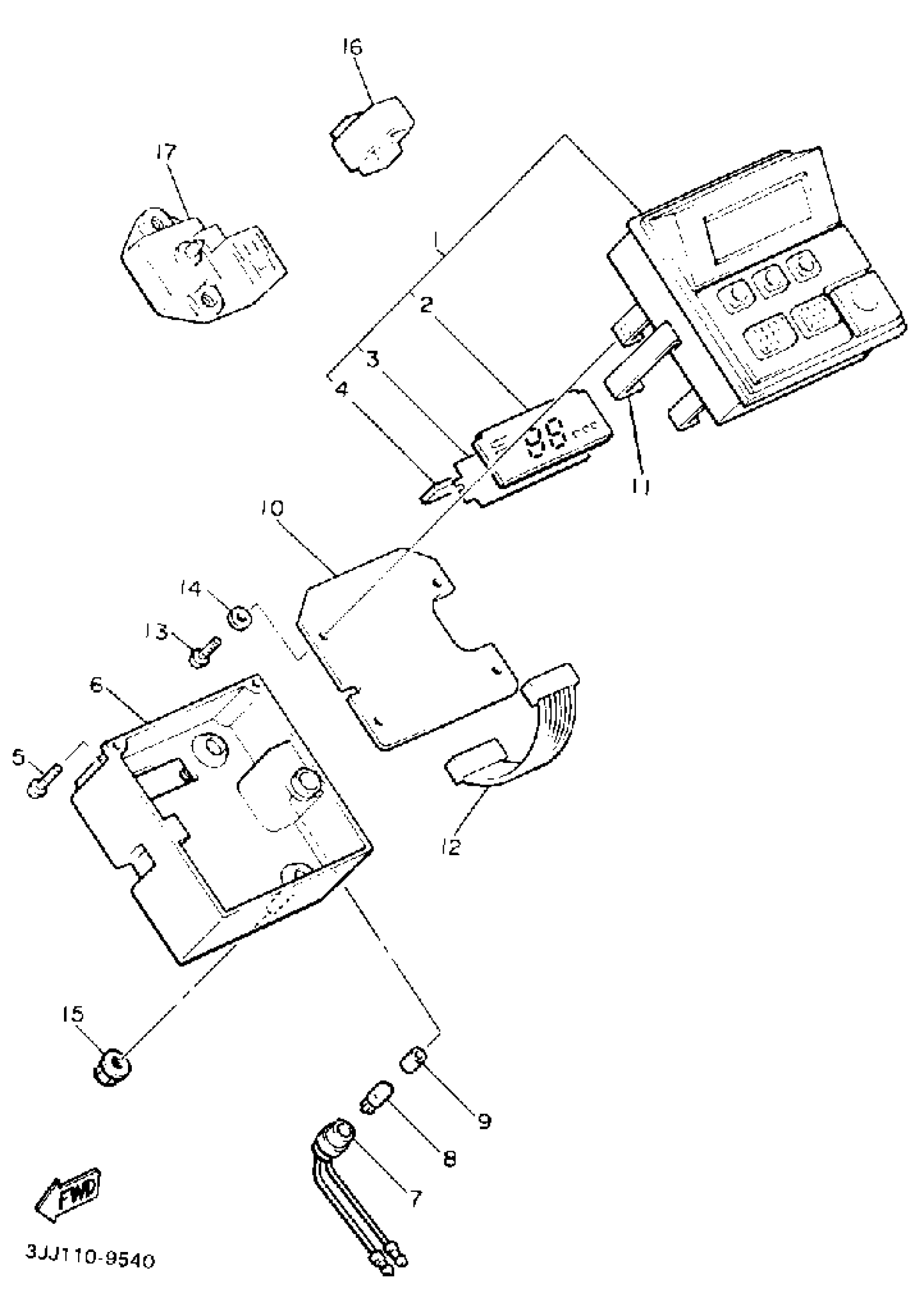

Find the part on the Control Unit diagram for your 1990 Yamaha Venture Royale CA (XVZ13DAC), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Venture Royale CA (XVZ13DAC) Control Unit Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRINT BOARD/CASE SET

31M-W8591-M0-00

1
Out of stock

2

. LCD UNIT

31M-85931-00-00

1
Out of stock

3

. REFLECTOR, lcd

31M-85933-00-00

1
Out of stock

4

CONNECTOR, LCD

(31M-85932-00-00)

1
Out of stock

5

SCREW, TAPPING

90164-03016-00

1
Out of stock

6

CASE, under

31M-85913-00-00

1
Out of stock

7

SOCKET CORD ASS''Y

31M-83520-00-00

1
Out of stock

8

BULB

4YR-83517-10-00

1
Out of stock

9

TUBE

31M-83535-00-00

1
Out of stock

10

PRINT BOARD ASS''Y 2

31M-85921-M0-00

1
Out of stock

11

CLAMP

31M-83595-00-00

1
Out of stock

12

WIRE, LEAD

26H-8356N-00-00

1
Out of stock

13

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

14

WASHER(3SX)

92907-03600-00

1

$6.69

In stock

15

NUT, FLANGE

95707-04500-00

1

$6.68

In stock

16

RELAY ASSY

25G-81950-02-00

—
Out of stock

17

PRESSURE, sensor

31M-85981-00-00

1
Out of stock
