1985 Yamaha XVZ12DN (XVZ12DN) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1985 Yamaha XVZ12DN (XVZ12DN), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

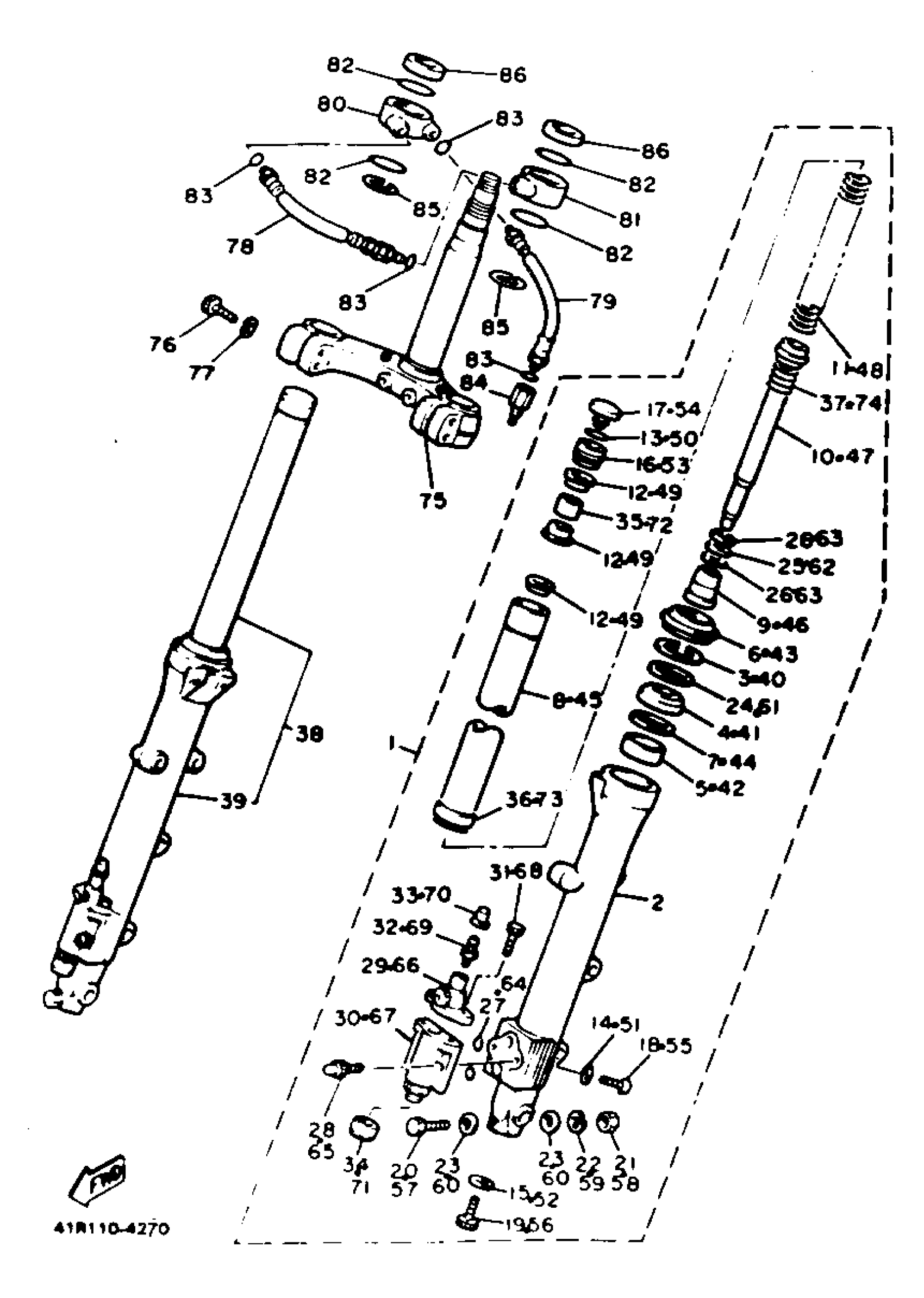

1985 Yamaha XVZ12DN (XVZ12DN) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY (L.H) (26H-23102-01-00)

41R-23102-00-00

1
Out of stock

2

. TUBE, OUTER 1

26H-23126-00-00

1
Out of stock

3

CLIP, OIL SEAL

26H-23156-00-00

1
Out of stock

4

OIL SEAL

1NL-23145-00-00

1
Out of stock

5

METAL, SLIDE 1

3JJ-23125-00-00

1
Out of stock

6

SEAL, DUST

26H-23144-00-00

1
Out of stock

7

WASHER, SPRING UPPER

26H-23149-00-00

—
Out of stock

8

. INNER TUBE COMP 1

41R-23110-00-00

1
Out of stock

9

. SPINDLE, taper

26H-23173-00-00

1
Out of stock

10

CYLINDER, FRTFRK FRONT FORK (1NL-23170-00)

2WR-23170-00-00

1
Out of stock

11

. SPRING, front fork

41R-23141-00-00

1
Out of stock

12

. SEAT, SPRING UPPER

1W4-23142-L0-00

1
Out of stock

13

O-RING

26H-23147-00-00

—
Out of stock

14

GASKET, DRAIN PLUG

122-23129-00-00

1
Out of stock

15

GASKET

2K8-23158-L0-00

1
Out of stock

16

. BOLT, CAP

26H-23111-00-00

1
Out of stock

17

CAP, FRONT FORK

26H-23168-00-00

—
Out of stock

18

SCREW, PAN HEAD(3XP)

98517-04006-00

1
Out of stock

19

BOLT

3R4-23181-L0-00

—
Out of stock

20

BOLT, HEXAGON

97017-08060-00

—
Out of stock

21

NUT(6L2)

95333-08600-00

—
Out of stock

22

YBS67-8 WASHER, SPRING

92990-08100-00

—
Out of stock

23

.. WASHER, PLATE

92990-08600-00

1
Out of stock

24

. WASHER, oil seal

26H-23146-00-00

1
Out of stock

25

. WASHER

26H-2319L-00-00

1
Out of stock

26

SPRING, VALVE

26H-2319M-00-00

—
Out of stock

27

O-RING

22N-23147-00-00

—
Out of stock

28

BOLT, SOCKET

91314-06016-00

—
Out of stock

29

. BRAKE PLUNGER ASS''Y 1

41R-2319F-00-00

1
Out of stock

30

. DAMPER PISTON ASS''Y

41R-2319E-00-00

1
Out of stock

31

BOLT, SOCKET

91314-05012-00

—
Out of stock

32

. BREATHER, AIR (26H-2319V-00-00)

1TX-2319V-00-00

1
Out of stock

33

. CAP

26H-2319W-00-00

1
Out of stock

34

. CAP

22N-2319U-00-00

1
Out of stock

35

SPACER

(26H-2316E-01-00)

1
Out of stock

36

PISTON, FRONT FORK

3JJ-23171-00-00

—
Out of stock

37

. SPRING, sub

41R-23152-00-00

1
Out of stock

38

FRONT FORK ASSEMBLY (R.H) (26H-23103-01-00)

41R-23103-00-00

1
Out of stock

39

. TUBE, OUTER 2

26H-23136-00-00

1
Out of stock

40

CLIP, OIL SEAL

26H-23156-00-00

1
Out of stock

41

OIL SEAL

1NL-23145-00-00

1
Out of stock

42

METAL, SLIDE 1

3JJ-23125-00-00

1
Out of stock

43

SEAL, DUST

26H-23144-00-00

1
Out of stock

44

WASHER, SPRING UPPER

26H-23149-00-00

—
Out of stock

45

. INNER TUBE COMP 1

41R-23110-00-00

1
Out of stock

46

. SPINDLE, taper

26H-23173-00-00

1
Out of stock

47

CYLINDER, FRTFRK FRONT FORK (1NL-23170-00)

2WR-23170-00-00

1
Out of stock

48

. SPRING, front fork

41R-23141-00-00

1
Out of stock

49

. SEAT, SPRING UPPER

1W4-23142-L0-00

1
Out of stock

50

O-RING

26H-23147-00-00

—
Out of stock

51

GASKET, DRAIN PLUG

122-23129-00-00

1
Out of stock

52

GASKET

2K8-23158-L0-00

1
Out of stock

53

. BOLT, CAP

26H-23111-00-00

1
Out of stock

54

CAP, FRONT FORK

26H-23168-00-00

—
Out of stock

55

SCREW, PAN HEAD(3XP)

98517-04006-00

1
Out of stock

56

BOLT

3R4-23181-L0-00

—
Out of stock

57

BOLT, HEXAGON

97017-08060-00

—
Out of stock

58

NUT(6L2)

95333-08600-00

—
Out of stock

59

YBS67-8 WASHER, SPRING

92990-08100-00

—
Out of stock

60

.. WASHER, PLATE

92990-08600-00

1
Out of stock

61

. WASHER, oil seal

26H-23146-00-00

1
Out of stock

62

. WASHER

26H-2319L-00-00

1
Out of stock

63

SPRING, VALVE

26H-2319M-00-00

—
Out of stock

64

O-RING

22N-23147-00-00

—
Out of stock

65

BOLT, SOCKET

91314-06016-00

—
Out of stock

66

. BRAKE PLUNGER ASS''Y 1

41R-2319F-00-00

1
Out of stock

67

. DAMPER PISTON ASS''Y

41R-2319E-00-00

1
Out of stock

68

BOLT, SOCKET

91314-05012-00

—
Out of stock

69

. BREATHER, AIR (26H-2319V-00-00)

1TX-2319V-00-00

1
Out of stock

70

. CAP

26H-2319W-00-00

1
Out of stock

71

. CAP

22N-2319U-00-00

1
Out of stock

72

SPACER

(26H-2316E-01-00)

1
Out of stock

73

PISTON, FRONT FORK

3JJ-23171-00-00

—
Out of stock

74

. SPRING, sub

41R-23152-00-00

1
Out of stock

75

UNDER BRACKET COMP

2WR-23340-01-00

1
Out of stock

76

BOLT, SOCKET

91314-08035-00

—
Out of stock

77

YBS67-8 WASHER, SPRING

92990-08100-00

—
Out of stock

78

HOSE, AIR

{24-M2318-F0-10

1
Out of stock

79

HOSE, air 2

1NL-2318K-00-00

1
Out of stock

80

JOINT, air 2

26H-2319A-00-00

1
Out of stock

81

JOINT, air 1

26H-2318A-00-00

1
Out of stock

82

O-RING

26H-23188-00-00

—
Out of stock

83

O-RING

3J2-23147-00-00

—
Out of stock

84

CONNECTOR

31M-2318E-00-00

1
Out of stock

85

RING, snap

26H-23153-00-00

1
Out of stock

86

GASKET

26H-23163-00-00

1
Out of stock
