1985 Yamaha XVZ12DN (XVZ12DN) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1985 Yamaha XVZ12DN (XVZ12DN), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

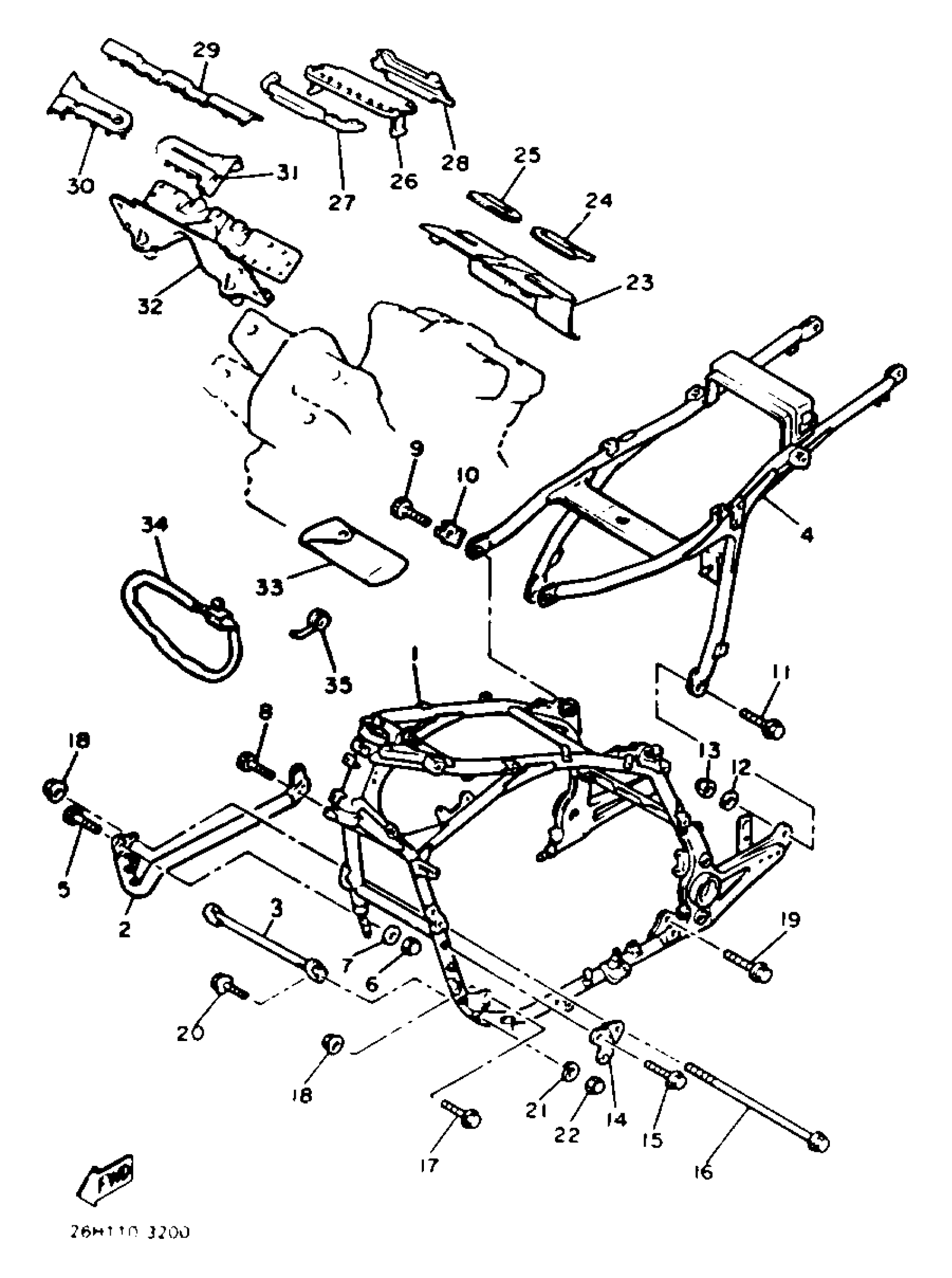

1985 Yamaha XVZ12DN (XVZ12DN) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP (26H-21110-02-33)

41R-21110-00-33

1
Out of stock

2

DOWN TUBE COMP.

26H-21140-01-33

1
Out of stock

3

CROSS BAR COMPLETE

26H-2141V-00-00

1
Out of stock

4

REAR FRAME COMP. (26H-21190-02-33)

26H-21190-03-33

1
Out of stock

5

BOLT, SOCKET

91317-10035-00

1

$5.62

In stock

6

NUT, U

95617-10100-00

1
Out of stock

7

WASHER(6TA)

92907-10600-00

1
Out of stock

8

BOLT, SOCKET

91317-10020-00

—

$6.68

In stock

9

BOLT (583)

90101-10303-00

1

$6.25

In stock

10

WASHER, LOCK

90215-10192-00

1
Out of stock

11

BOLT, FLANGE(4GB)

95817-10045-00

1

$4.52

In stock

12

WASHER, PLATE (2J2)

90201-10696-00

1
Out of stock

13

NUT, CROWN(3BM)

90176-10073-00

1

$6.85

In stock

14

STAY, ENGINE 2

(26H-21315-00-00)

1
Out of stock

15

BOLT, FLANGE(JN5)

95817-08016-00

1

$4.12

In stock

16

BOLT, washer based

90105-10254-00

1
Out of stock

17

BOLT, WASHER BASED(4EB)

90105-10788-00

—
Out of stock

18

NUT, FLANGE(3BM)

95704-10500-00

—

$1.71

In stock

19

BOLT, WASHER BASED (26H)

90105-12252-00

—
Out of stock

20

BOLT, FLANGE

95817-08055-00

—

$2.82

In stock

21

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

22

NUT, CROWN

95303-08800-00

—

$7.52

In stock

23

COVER 2

26H-2117M-00-00

1
Out of stock

24

COVER 3

26H-2117N-00-00

1
Out of stock

25

COVER 4

26H-2117R-00-00

1
Out of stock

26

COVER 7

26H-2117V-00-00

1
Out of stock

27

COVER 5

26H-2117T-00-00

1
Out of stock

28

COVER 6

26H-2117U-00-00

1
Out of stock

29

COVER 8

26H-2117W-00-00

1
Out of stock

30

COVER 9

26H-2117X-00-00

1
Out of stock

31

COVER 10

26H-2117Y-00-00

1
Out of stock

32

COVER

26H-2117F-00-00

1
Out of stock

33

TOOL KIT

1NL-W2810-00-00

1
Out of stock

34

WHEEL LOCK ASSEMBLY (4X7-W2171-00)

4W5-W2171-00-00

1
Out of stock

35

GAUGE, AIR

2X4-2811A-01-00

1
Out of stock
