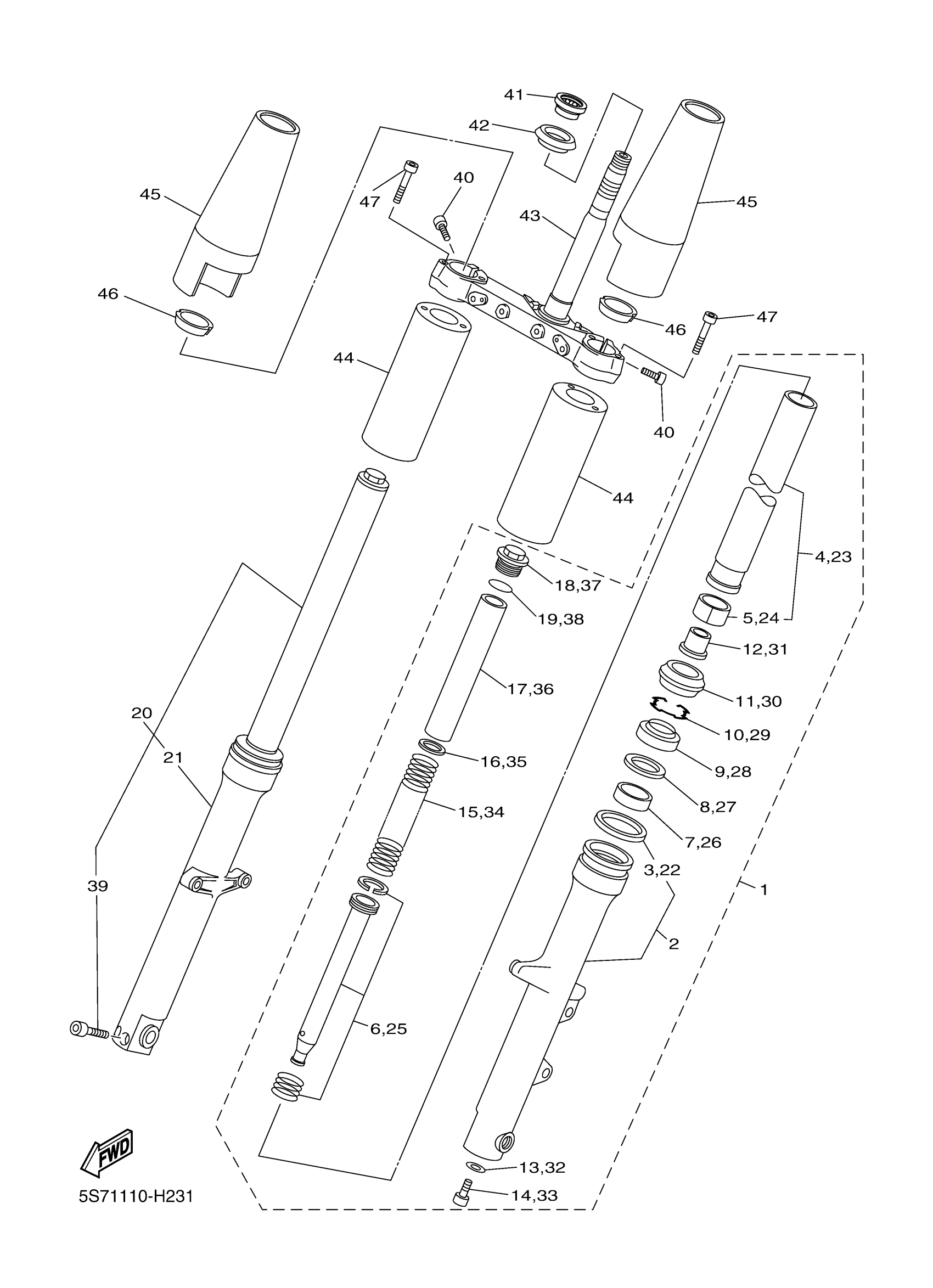

Yamaha XVS95DW (V STAR 950) 5S7D0 2013 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

5S7-23102-01-00

Unavailable

2

TUBE, OUTER (LEFT)

5S7-23126-00-00

Unavailable

3

GUIDE, BOOT

5BN-23193-00-00

$6.42

4

INNER TUBE COMP.1

3D8-23110-00-00

$242.26

5

PISTON, FRONT FORK

5BN-23171-00-00

$18.18

6

CYLINDER COMP., FRONT FORK

5S7-23170-00-00

$132.55

7

METAL, SLIDE 1

4FM-23125-40-00

$27.32

8

WASHER, OIL SEAL

36Y-23146-10-00

$20.60

9

OIL SEAL

4EB-23145-01-00

$22.64

10

CLIP, OIL SEAL

26H-23156-00-00

$6.17

11

SEAL, DUST

4EB-23144-00-00

$18.18

12

SPINDLE, TAPER

4YR-23173-00-00

Unavailable

13

GASKET

509-23158-L0-00

$13.39

14

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$7.13

15

SPRING, FRONT FORK

5S7-23141-00-00

Unavailable

16

WASHER, SPRING UPPER

4DW-23149-40-00

Unavailable

17

SPACER

5EL-23118-00-00

Unavailable

18

BOLT, CAP

1D0-23111-00-00

Unavailable

19

O-RING

43F-23188-10-00

Unavailable

20

FRONT FORK ASSY (R.H)

5S7-23103-01-00

Unavailable

21

TUBE, OUTER (RIGHT)

5S7-23136-00-00

Unavailable

22

GUIDE, BOOT

5BN-23193-00-00

$6.42

23

INNER TUBE COMP.1

3D8-23110-00-00

$242.26

24

PISTON, FRONT FORK

5BN-23171-00-00

$18.18

25

CYLINDER COMP., FRONT FORK

5S7-23170-00-00

$132.55

26

METAL, SLIDE 1

4FM-23125-40-00

$27.32

27

WASHER, OIL SEAL

36Y-23146-10-00

$20.60

28

OIL SEAL

4EB-23145-01-00

$22.64

29

CLIP, OIL SEAL

26H-23156-00-00

$6.17

30

SEAL, DUST

4EB-23144-00-00

$18.18

31

SPINDLE, TAPER

4YR-23173-00-00

Unavailable

32

GASKET

509-23158-L0-00

$13.39

33

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$7.13

34

SPRING, FRONT FORK

5S7-23141-00-00

Unavailable

35

WASHER, SPRING UPPER

4DW-23149-40-00

Unavailable

36

SPACER

5EL-23118-00-00

Unavailable

37

BOLT, CAP

1D0-23111-00-00

Unavailable

38

O-RING

43F-23188-10-00

Unavailable

39

BOLT, SOCKET

91314-08035-00

Unavailable

40

BOLT,SOCKET

91314-10020-00

Unavailable

41

BEARING(3FV)

93399-99932-00

Unavailable

42

SEAL, STEERING

3FV-23462-00-00

Unavailable

43

UNDER BRACKET COMP.

5S7-23340-01-00

Unavailable

44

COVER, UNDER 1

3D8-23123-50-00

Unavailable

45

COVER, UPPER 1

3D8-23121-50-00

Unavailable

46

GASKET

3D8-23163-00-00

Unavailable

47

BOLT, SPECIAL

3D8-23394-20-00

Unavailable

48

FORK SEAL KIT (TWO FORKS)

4EB-W003B-00-00

Unavailable
