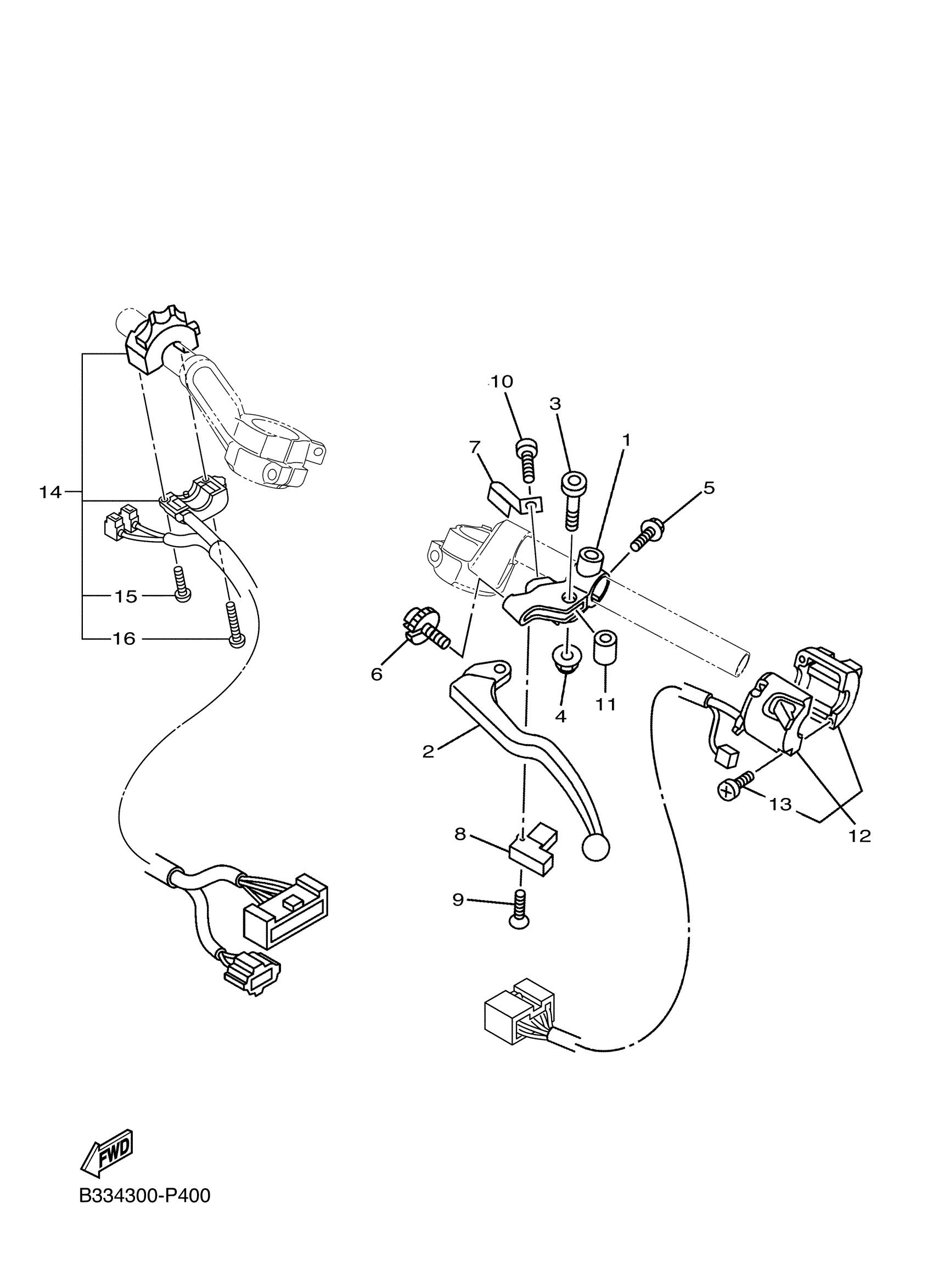

Yamaha XVS95CRFS (BOLT C SPEC) B3310 2015 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

HOLDER, LEVER 1

1B3-82911-00-00

$33.34

2

LEVER 1

5EB-83912-03-00

$46.16

3

BOLT, LEVER

2C0-83945-00-00

Unavailable

4

NUT,SELF-LOCKING

95607-06200-00

$10.09

5

. BOLT, FLANGE

95027-06020-00

$0.93

6

BOLT, CABLE ADJUSTING

5LV-83951-00-00

$47.04

7

PLATE, SPRING

4XV-83929-00-00

$8.72

8

SWITCH

3YX-82917-01-00

$37.06

9

SCREW, COUNTERSUNK

90151-03003-00

Unavailable

10

SCREW, PAN HEAD(6G8)

98507-04010-00

$3.06

11

COLLAR, LEVER 1

5JJ-83913-00-00

$7.01

12

SWITCH, HANDLE 4

B33-83972-01-00

$176.58

13

SCREW, PAN HEAD

98517-04025-00

$2.75

14

SWITCH, HANDLE 3

B33-83963-01-00

$93.06

15

SCREW, PAN HEAD

98517-04020-00

$5.76

16

SCREW, PAN

98507-04030-00

$1.64
