2015 Yamaha Bolt C Spec (XVS95CRFS) Front Fork Diagram

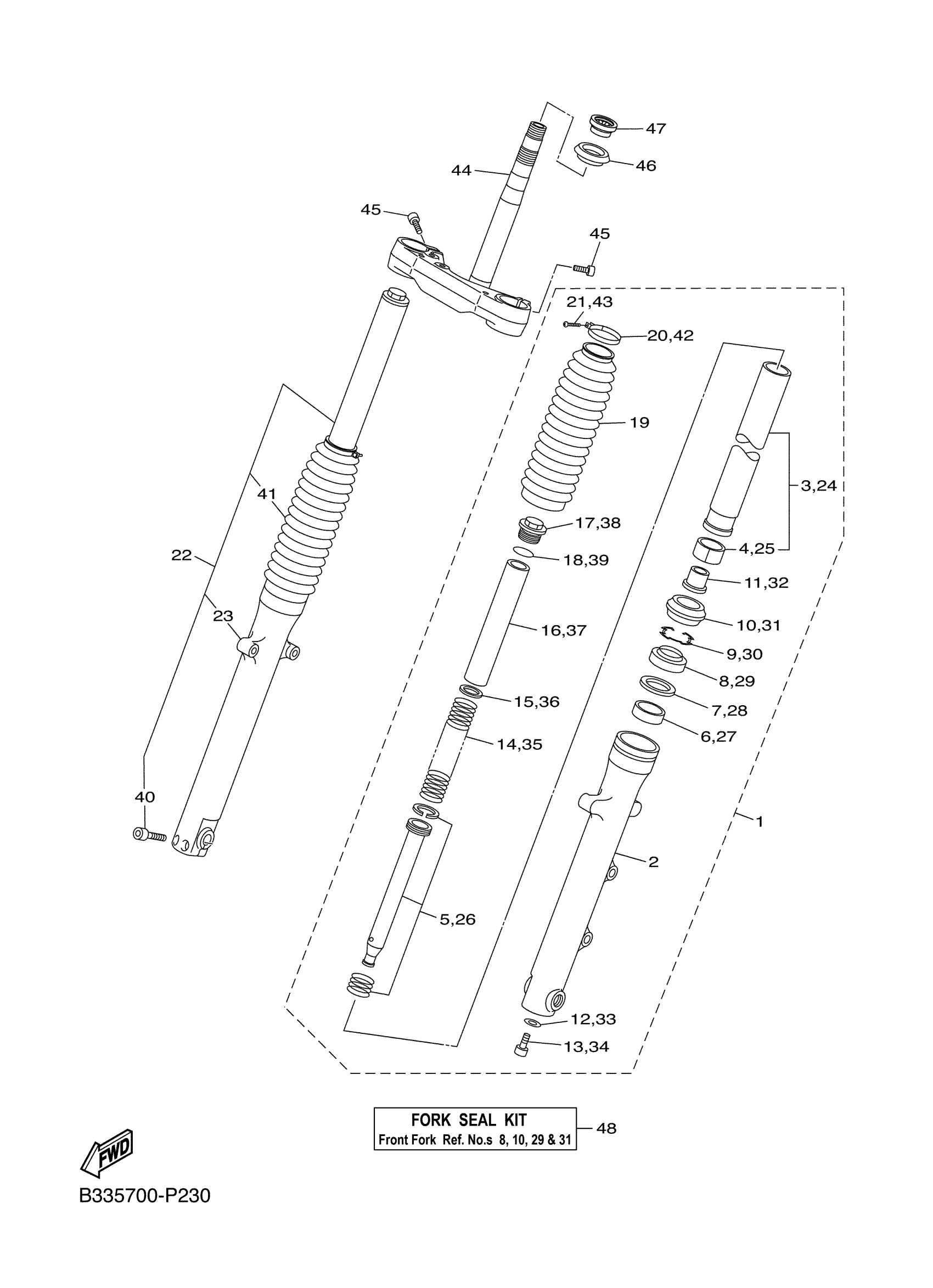

Find the part on the Front Fork diagram for your 2015 Yamaha Bolt C Spec (XVS95CRFS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRONT FORK ASSY (L
B33-23102-00-00
2
TUBE, OUTER (L.H)
B33-23126-00-00
3
INNER TUBE COMP.1
B33-23110-00-00
5
CYLINDER COMP., FR
B33-23170-00-00
14
SPRING, FRONT FORK
B33-23141-00-00
16
SPACER
22B-23118-20-00
19
BOOT
B33-23191-00-00
20
BAND
43M-23192-L0-00
21
SCREW, PAN HEAD
98517-04016-00
22
FRONT FORK ASSY (R
B33-23103-00-00
23
TUBE, OUTER
B33-23136-00-00
24
INNER TUBE COMP.1
B33-23110-00-00
26
CYLINDER COMP., FR
B33-23170-00-00
35
SPRING, FRONT FORK
B33-23141-00-00
37
SPACER
22B-23118-20-00
40
BOLT, SOCKET
91314-08035-00
41
BOOT
B33-23191-00-00
42
BAND
43M-23192-L0-00
43
SCREW, PAN HEAD
98517-04016-00
