2015 Yamaha Bolt C Spec (XVS95CRFS) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2015 Yamaha Bolt C Spec (XVS95CRFS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

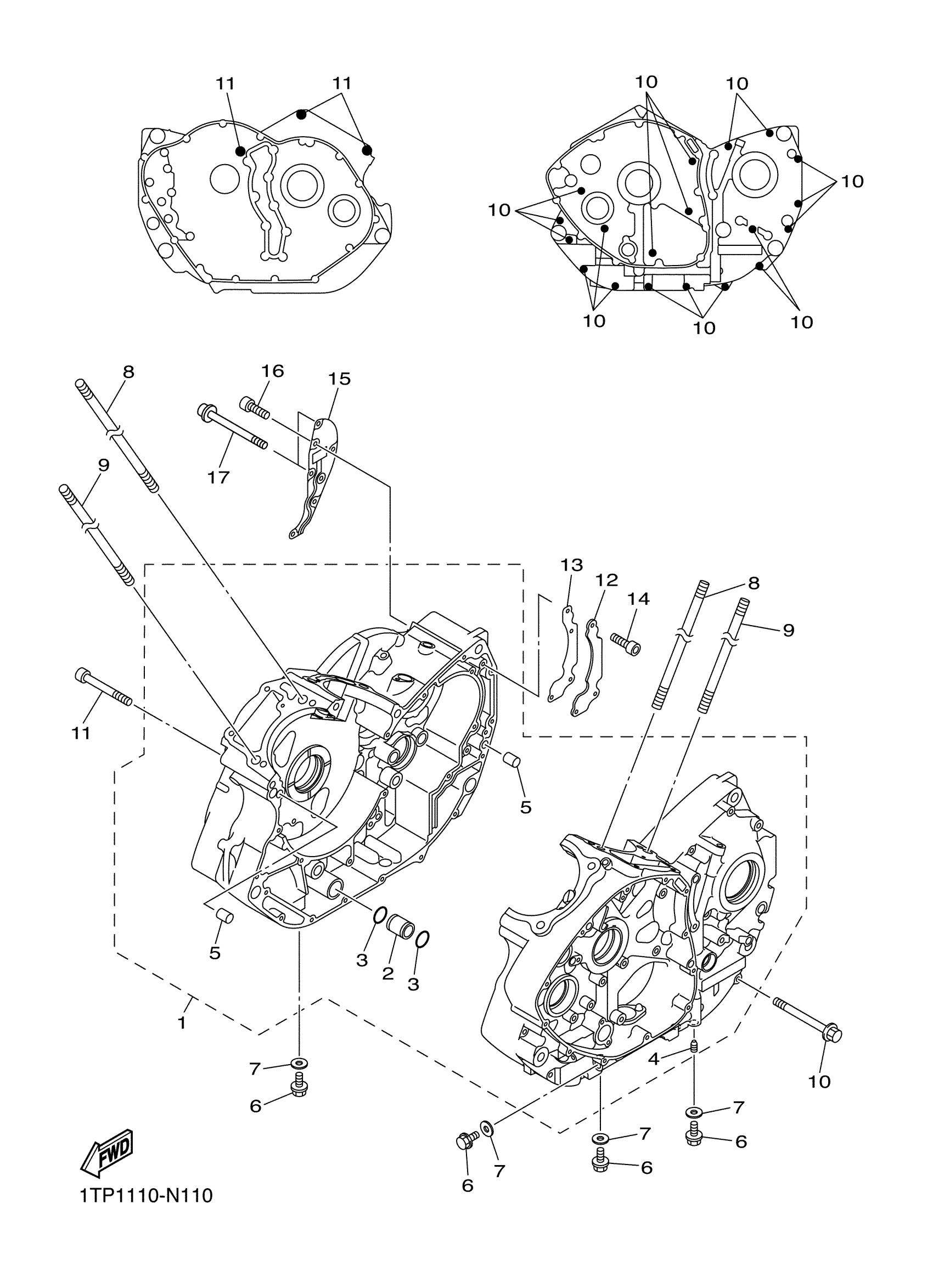

2015 Yamaha Bolt C Spec (XVS95CRFS) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

5S7-15100-09-00

—
Out of stock

2

NOZZLE ASSY., 2

3D8-15154-00-00

1
Out of stock

3

O-RING (1J7)

93210-18319-00

1
Out of stock

4

NOZZLE 1

2H7-15138-00-00

—
Out of stock

5

PIN, DOWEL(2VG)

99530-10116-00

1
Out of stock

6

BOLT, FLANGE

95022-10016-00

1
Out of stock

7

GASKET (5R6)

90430-10171-00

1
Out of stock

8

BOLT, STUD

90116-12012-00

—
Out of stock

9

BOLT, STUD

90116-12011-00

—
Out of stock

10

BOLT, FLANGE

90105-06144-00

—
Out of stock

11

BOLT, HEXAGON SOCKET HEAD

90110-10030-00

1
Out of stock

12

SEPARATOR, OIL

3D8-15358-00-00

—
Out of stock

13

GASKET, DRAIN

3D8-15353-00-00

—
Out of stock

14

BOLT,SOCKET

91317-06016-00

1
Out of stock

15

SEPERATOR, OIL

3D8-15368-00-00

—
Out of stock

16

BOLT,SOCKET

91317-06016-00

1
Out of stock

17

BOLT, HEXAGON SOCKET HEAD

90110-06250-00

—
Out of stock
