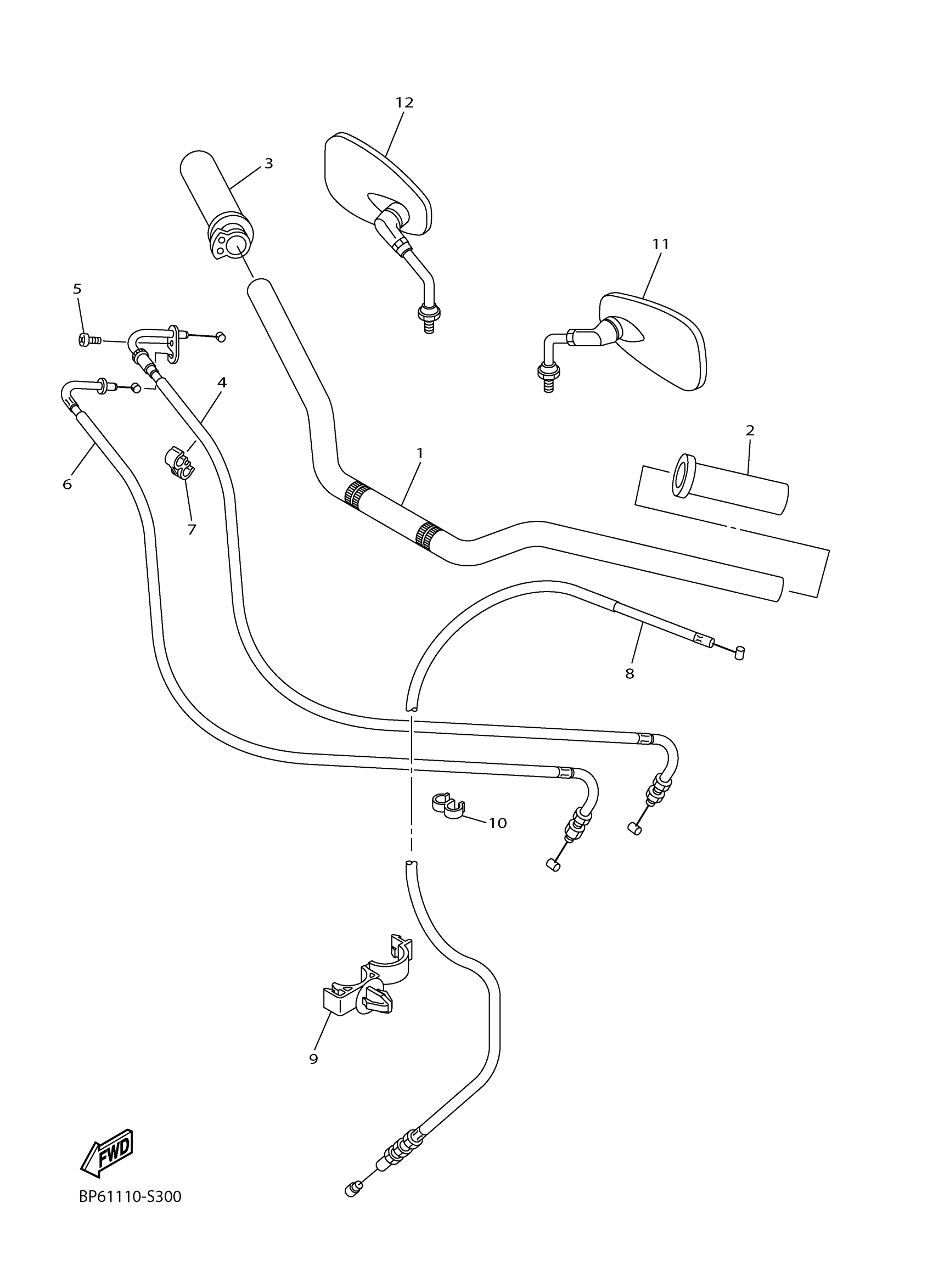

Yamaha XVS95CMCB (BOLT R-SPEC CA) BS5V 2021 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

1TP-26111-00-00

$154.12

2

GRIP

1TP-26241-00-00

Unavailable

3

GRIP ASSY

1TP-26240-00-00

$51.12

4

CABLE, THROTTLE 1

1TP-26311-00-00

$31.11

5

SCREW, PAN HEAD(JJ6)

98507-05016-00

$1.31

6

CABLE, THROTTLE 2

1TP-26312-00-00

$29.63

7

CLAMP(4KB)

90464-06214-00

$2.78

8

CABLE, CLUTCH

1TP-26335-00-00

$38.52

9

CLAMP

90464-17003-00

$2.89

10

CLAMP(6M7)

90464-09M31-00

$5.79

11

REAR VIEW MIRROR ASSY (LEFT)

2DX-26280-00-00

$104.47

12

REAR VIEW MIRROR ASSY (RIGHT)

2DX-26290-00-00

$98.54
