2021 Yamaha Bolt R-Spec CA (XVS95CMCB) Frame Diagram

← All diagrams

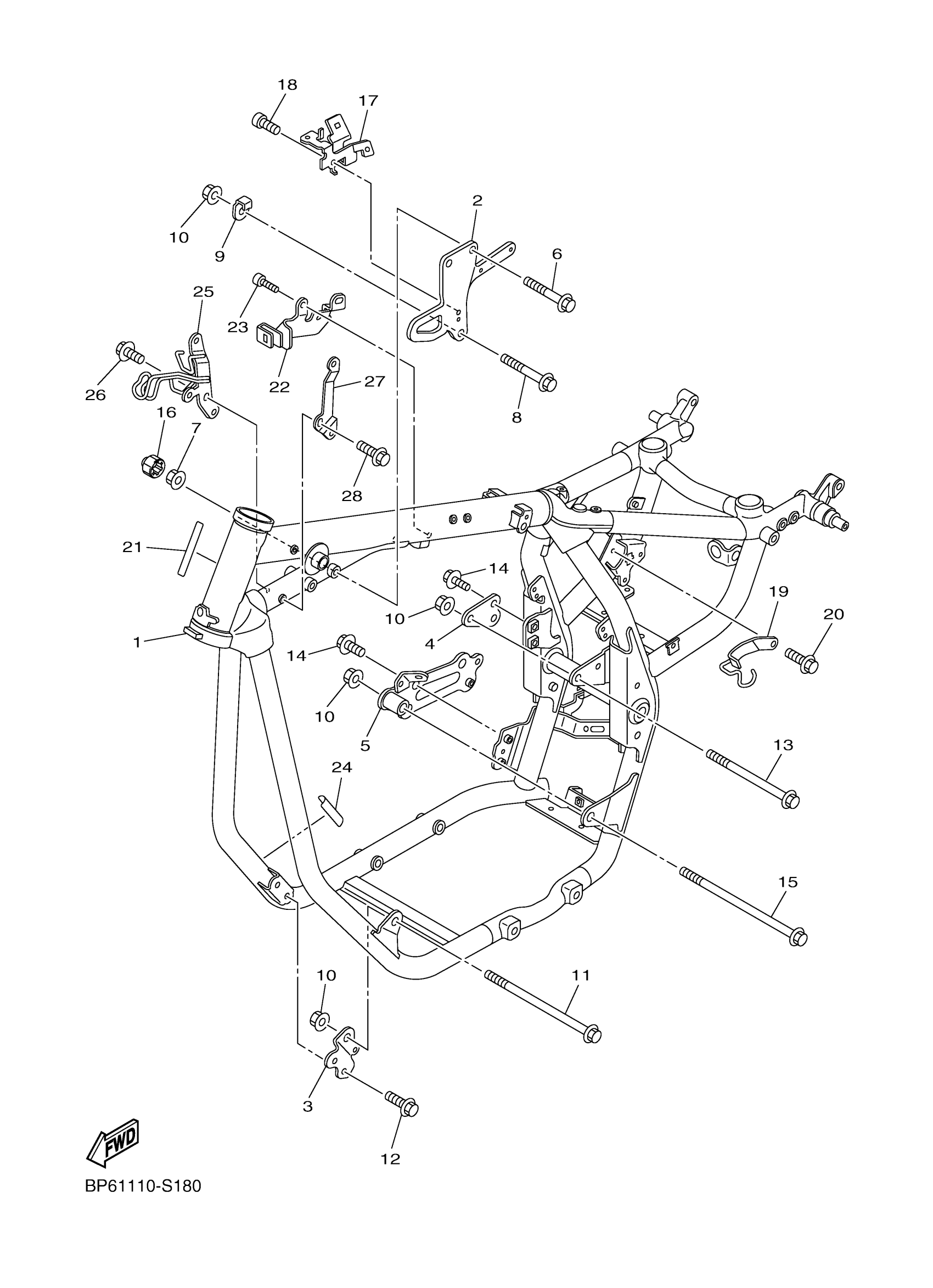

Find the part on the Frame diagram for your 2021 Yamaha Bolt R-Spec CA (XVS95CMCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Yamaha Bolt R-Spec CA (XVS95CMCB) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP.

BP6-21110-00-00

1
Out of stock

2

STAY, ENGINE 3

1TP-21317-00-00

—
Out of stock

3

STAY 3

1TP-2122C-00-00

—
Out of stock

4

STAY, ENGINE 5

1TP-21314-00-00

—
Out of stock

5

STAY, REAR

1TP-2116F-00-00

—
Out of stock

6

BOLT, FLANGE

90105-10434-00

—
Out of stock

7

NUT, SELF-LOCKING

90185-10008-00

1
Out of stock

8

BOLT, FLANGE

90105-12090-00

—
Out of stock

9

PLATE

1TP-21183-00-00

—
Out of stock

10

NUT, SELF-LOCKING

90185-12002-00

1
Out of stock

11

BOLT, FLANGE

90105-12088-00

—
Out of stock

12

BOLT, WASHER BASED

90105-10003-00

—
Out of stock

13

BOLT, FLANGE

90105-12091-00

—
Out of stock

14

BOLT, FLANGE

90105-10428-00

1
Out of stock

15

BOLT, FLANGE

90105-12086-00

1
Out of stock

16

CAP

5YU-2143A-00-00

1
Out of stock

17

BRKT

1TP-2115C-00-00

—
Out of stock

18

BOLT

91317-06008-00

—
Out of stock

19

GUIDE, CABLE

1TP-21288-00-00

—
Out of stock

20

BOLT, FLANGE(4MY)

95027-06010-00

—
Out of stock

21

PROTECTOR

3D8-2117G-00-00

1
Out of stock

22

BRACKET, BATTERY BOX

1TP-21149-01-00

—
Out of stock

23

BOLT, BUTTON HEAD

92012-06010-00

—
Out of stock

24

SEAL

5PX-21268-00-00

—
Out of stock

25

HOLDER

1TP-26475-00-00

—
Out of stock

26

BOLT, WASHER BASED(JA9)

90105-06696-00

—
Out of stock

27

HOLDER, 2

BP6-26481-00-00

—
Out of stock

28

BOLT, WASHER BASED(JA9)

90105-06696-00

—
Out of stock
