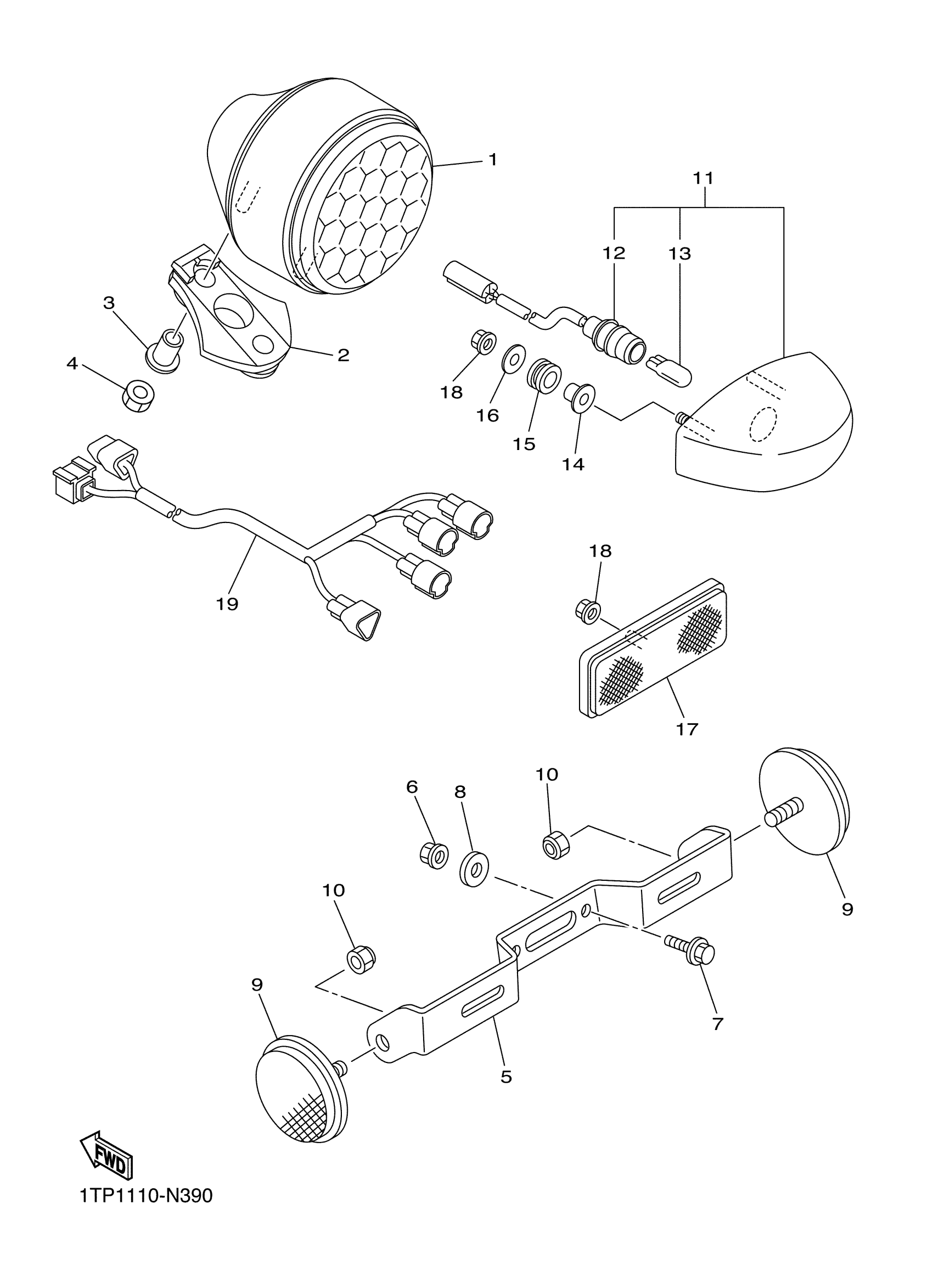

Yamaha XVS95CLS (BOLT R-SPEC) BS5N 2020 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT ASSY

1TP-84700-10-00

$223.44

2

DAMPER, TAIL 1

1TP-84736-00-00

$6.88

3

COLLAR

90387-06161-00

$5.81

4

NUT, HEXAGON

95380-06600-00

$4.11

5

BRACKET, LICENSE

5S7-84751-01-00

$26.06

6

NUT, SELF-LOCKING

95617-06100-00

$2.17

7

BOLT, FLANGE

95022-06014-00

$2.46

8

WASHER, PLATE

90201-06380-00

$0.54

9

REFLECTOR, REAR 1

449-85131-02-00

$24.04

10

NUT, S/L FLANGE

95607-05200-00

$6.39

11

LICENCE LIGHT ASSY

1TP-84740-00-00

$32.91

12

CORD, LICENCE LIGHT

1TP-84547-00-00

Unavailable

13

BULB

1TP-84347-00-00

$5.55

14

COLLAR

90387-05003-00

$4.42

15

GROMMET

90480-11008-00

$4.24

16

WASHER PLATE (664)

90201-05556-00

Unavailable

17

REAR REFLECTOR ASSY

3Y6-85130-02-00

$21.21

18

NUT, FLANGE

95702-05500-00

Unavailable

19

CORD, TAILLIGHT

1TP-84717-01-00

Unavailable
