2020 Yamaha Bolt CA (XVS95CLCB) Valve Diagram

← All diagrams

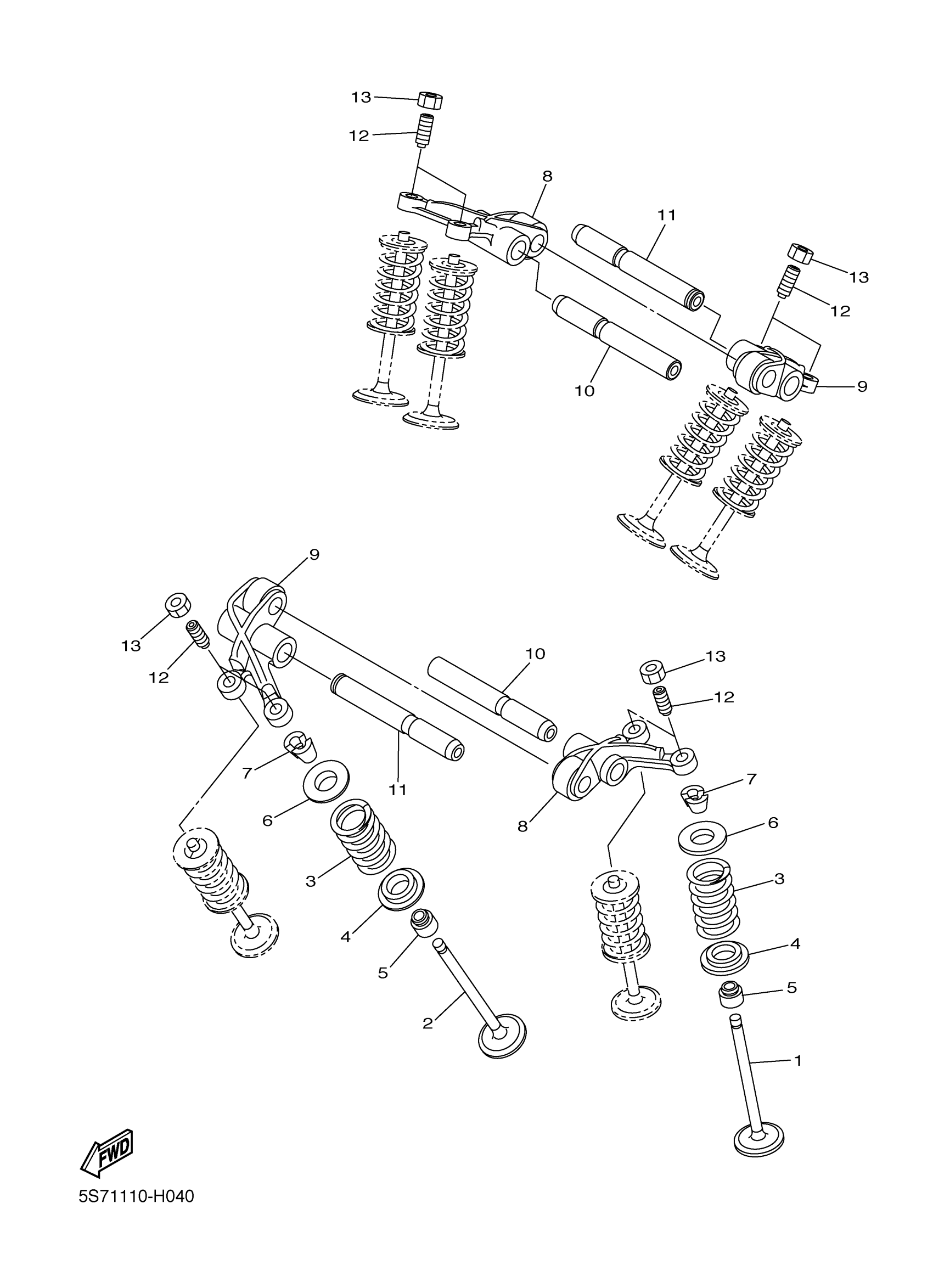

Find the part on the Valve diagram for your 2020 Yamaha Bolt CA (XVS95CLCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Yamaha Bolt CA (XVS95CLCB) Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

VALVE, INTAKE

5S7-12111-00-00

1
Out of stock

2

VALVE, EXHAUST

5S7-12121-00-00

1
Out of stock

3

SPRING, VALVE INNER

5S7-12113-00-00

1
Out of stock

4

SEAT, VALVE SPRING

3YF-12116-00-00

1
Out of stock

5

SEAL, VALVE STEM

5H0-12119-00-00

1
Out of stock

6

RETAINER, VALVE SPRING

3YF-12117-01-00

1
Out of stock

7

COTTER, VALVE

4G0-12118-00-00

1
Out of stock

8

ARM, VALVE ROCKER

5S7-12151-00-00

—
Out of stock

9

ARM, VALVE ROCKER 2

5S7-12161-00-00

—
Out of stock

10

SHAFT, ROCKER

5S7-12146-00-00

1
Out of stock

11

SHAFT, ROCKER 2

5S7-12156-00-00

1
Out of stock

12

SCREW, VALVE ADJUSTING

4X7-12159-00-00

—
Out of stock

13

NUT, HEXAGON

90170-08173-00

1
Out of stock
