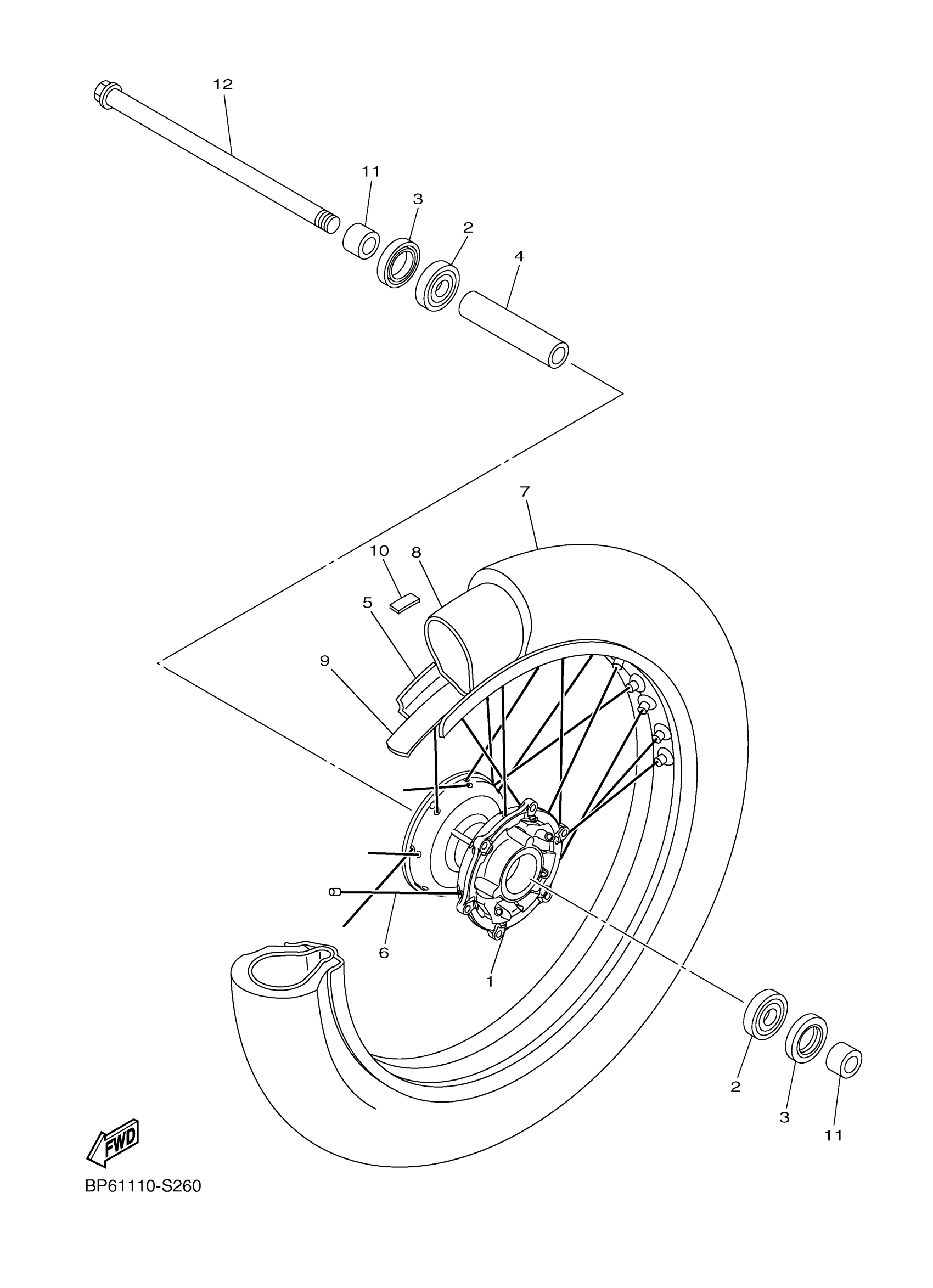

Yamaha XVS95CLCB (BOLT CA) BP6L 2020 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

BP6-25111-00-00

Unavailable

2

BEARING(4HM)

93306-30317-00

$32.19

3

OIL SEAL (28X47X7-102)

93102-28022-00

$11.79

4

COLLAR (4H7)

90387-172A5-00

$19.23

5

RIM (2.50-19)

94425-19007-00

$338.32

6

SPOKE SET, FRONT

BP6-25104-00-00

Unavailable

7

TIRE

94110-19039-00

$268.64

8

TUBE(42X)

94210-19222-00

$45.77

9

BAND, RIM (2.15-19)

94321-19157-00

Unavailable

10

BALANCER, WHEEL

2CR-25398-00-00

$4.38

11

COLLAR(1UR)

90387-173R6-00

$22.97

12

AXLE, WHEEL

3MA-25181-10-00

$51.86
