2017 Yamaha Bolt R Spec (XVS95CHS) Intake 2 Diagram

← All diagrams

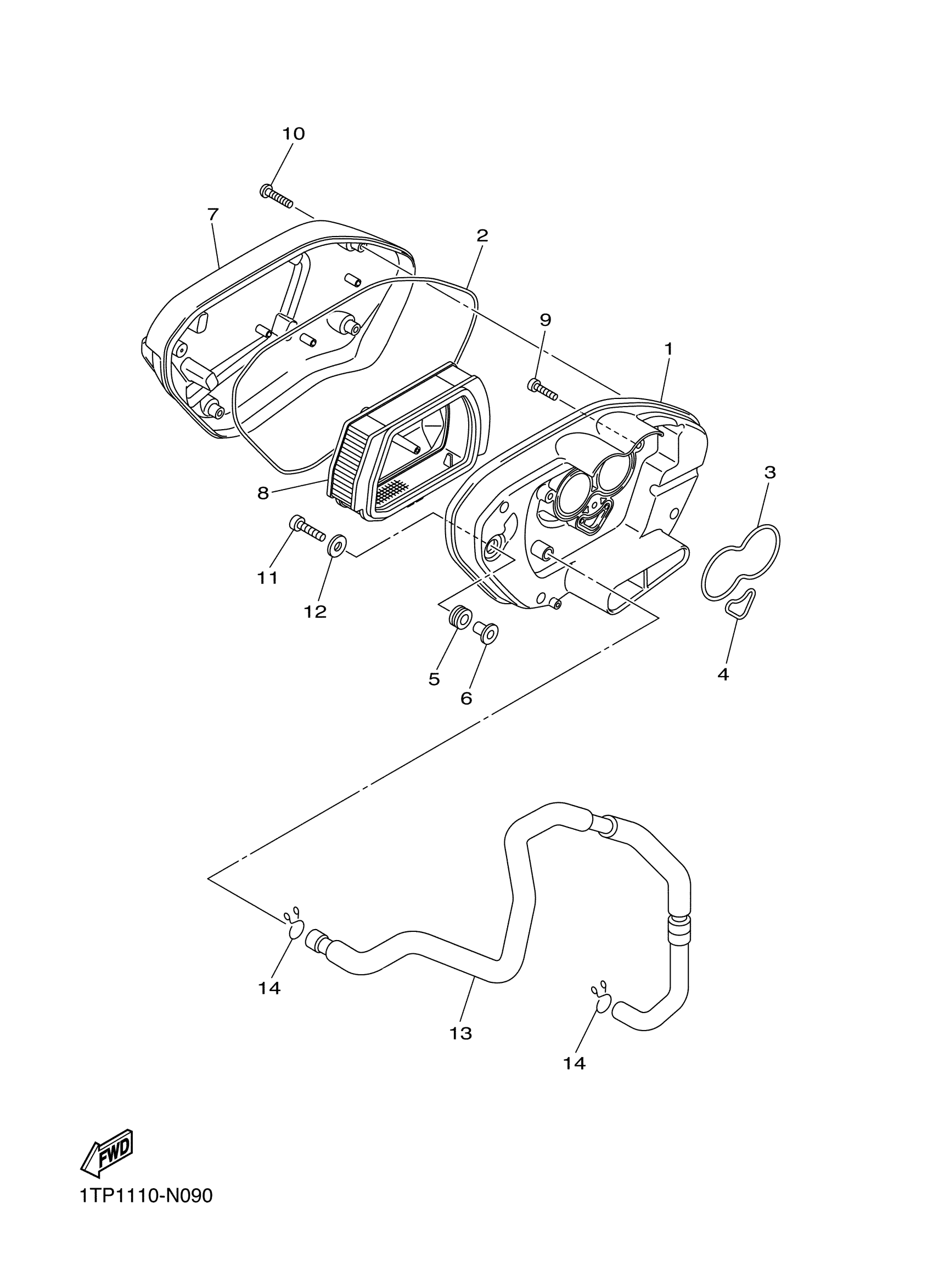

Find the part on the Intake 2 diagram for your 2017 Yamaha Bolt R Spec (XVS95CHS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha Bolt R Spec (XVS95CHS) Intake 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, AIR CLEANER 1

1TP-14411-00-00

—
Out of stock

2

SEAL

1TP-14452-00-00

1
Out of stock

3

SEAL

3D8-14457-00-00

1
Out of stock

4

SEAL

3D8-14462-00-00

1
Out of stock

5

GROMMET 839774310000

90480-14023-00

1
Out of stock

6

COLLAR

90387-06158-00

1
Out of stock

7

CAP ASSY, AIR CLEA

1XC-14402-00-00

1
Out of stock

8

ELEMENT, AIR CLEANER

1TP-14451-00-00

1
Out of stock

9

BOLT

91312-05025-00

1
Out of stock

10

BOLT,HEX. SOCKET BUTTON

90111-05024-00

1
Out of stock

11

BOLT,SOCKET

91317-06025-00

1
Out of stock

12

WASHER PLATE 256216150000

90201-06062-00

1
Out of stock

13

PIPE, BREATHER 1

1TP-11166-00-00

—
Out of stock

14

CLIP(62Y)

90467-15M14-00

1
Out of stock
