2017 Yamaha Bolt CA (XVS95CHCB) Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2017 Yamaha Bolt CA (XVS95CHCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

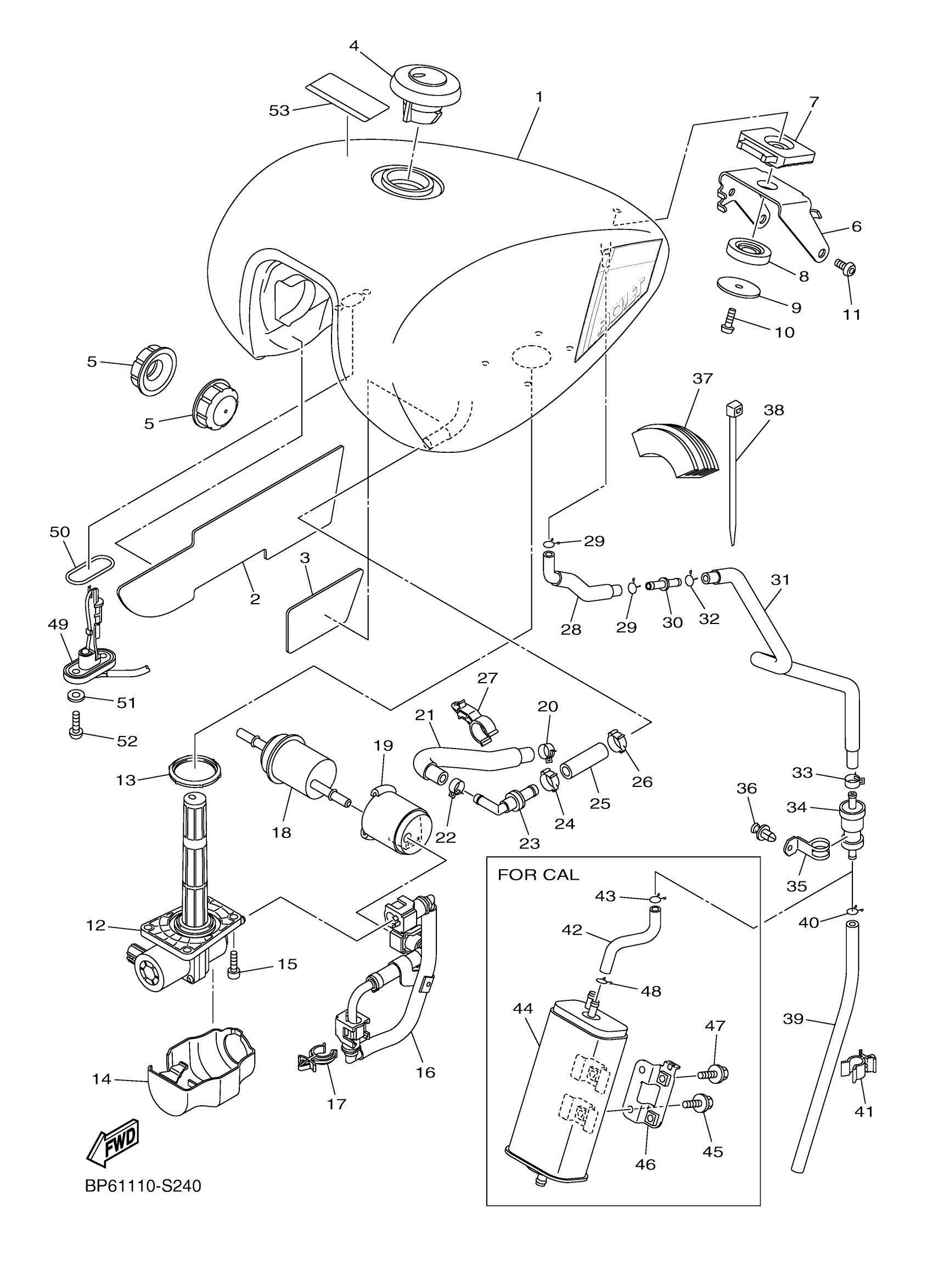

2017 Yamaha Bolt CA (XVS95CHCB) Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK ASSY

BP6-W2410-01-07

1
Out of stock

2

PROTECTOR, FUEL TANK

1TP-24141-01-00

1
Out of stock

3

PROTECTOR 1

BP6-2476U-00-00

1
Out of stock

4

CAP ASSY

4NK-24602-20-00

1
Out of stock

5

DAMPER, LOCATING 1

1TP-24181-00-00

1
Out of stock

6

BRACKET, TANK FITTING

BP6-2413Y-00-00

—
Out of stock

7

DAMPER, LOCATING 2

1TP-24182-00-00

—
Out of stock

8

DAMPER, LOCATING 3

4TR-24183-00-00

1
Out of stock

9

WASHER, PLATE

90201-06110-00

1
Out of stock

10

BOLT, BUTTON HEAD

92012-06012-00

1
Out of stock

11

BOLT, BUTTON HEAD

92012-08012-00

1
Out of stock

12

FUEL PUMP COMP.

1TP-13907-00-00

1
Out of stock

13

O-RING

1TP-24486-00-00

1
Out of stock

14

COVER

1TP-24452-00-00

1
Out of stock

15

BOLT, SOCKET

91317-05016-00

1
Out of stock

16

FUEL PIPE ASSY

1TP-24330-01-00

—
Out of stock

17

CLAMP

90464-16240-00

1
Out of stock

18

FILTER

1TP-13915-00-00

—
Out of stock

19

BAND 1

1TP-24398-00-00

—
Out of stock

20

CLIP

90467-12003-00

—
Out of stock

21

PIPE 5

1TP-24315-01-00

—
Out of stock

22

CLIP(3YX)

90467-13133-00

—
Out of stock

23

CHECK VALVE ASSY

1TP-14860-00-00

—
Out of stock

24

CLIP

90467-150A6-00

—
Out of stock

25

PIPE 4

1TP-24314-01-00

—
Out of stock

26

CLIP

90467-150A6-00

—
Out of stock

27

CLAMP

90464-17009-00

—
Out of stock

28

PIPE 3

1TP-24313-00-00

—
Out of stock

29

CLIP

90467-090A2-00

—
Out of stock

30

JOINT

4XY-14568-00-00

—
Out of stock

31

PIPE 6

1TP-24316-00-00

—
Out of stock

32

CLIP

90467-090A2-00

—
Out of stock

33

CLIP

90467-09001-00

—
Out of stock

34

ROLL OVER VALVE ASSY

5PX-24180-00-00

—
Out of stock

35

CLAMP 2

1TP-24136-00-00

—
Out of stock

36

RIVET

90269-05005-00

1
Out of stock

37

DAMPER, LOCATING 3

BP6-24183-00-00

—
Out of stock

38

CLAMP

90464-65001-00

—
Out of stock

39

HOSE (L400)

90445-116K9-00

—
Out of stock

40

CLIP

90467-090A2-00

—
Out of stock

41

CLAMP

90464-12015-00

—
Out of stock

49

SENDER UNIT ASSY, FUEL METER

1TP-85752-01-00

—
Out of stock

50

GASKET, SENDER UNIT

42X-85753-00-00

—
Out of stock

51

WASHER, PLATE(3MB)

90202-05187-00

—
Out of stock

52

SCREW

90149-06108-00

—
Out of stock

53

LABEL, CAUTION

1TP-2118K-01-00

—
Out of stock
