2017 Yamaha Bolt CA (XVS95CHCB) Crankshaft Piston Diagram

← All diagrams

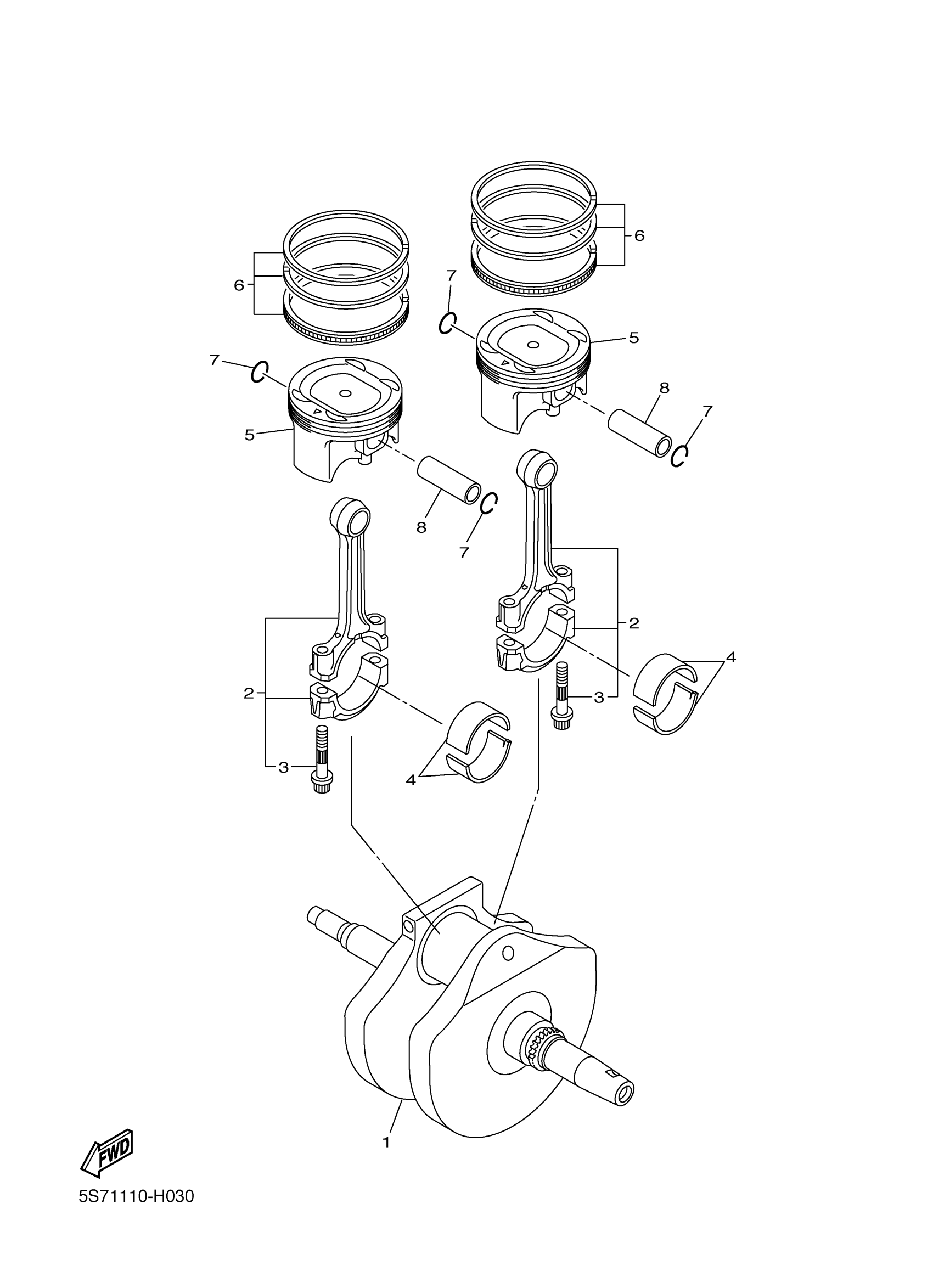

Find the part on the Crankshaft Piston diagram for your 2017 Yamaha Bolt CA (XVS95CHCB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha Bolt CA (XVS95CHCB) Crankshaft Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT

5S7-11411-00-00

—
Out of stock

2

CONNECTING ROD ASSY

5S7-11650-00-00

—
Out of stock

3

BOLT, CONNECTING ROD

5YU-11654-00-00

1
Out of stock

4

PLANE BEARING, CONNECTING ROD

5YU-11656-10-00

1
Out of stock

4

PLANE BEARING, CONNECTING ROD

5YU-11656-20-00

1
Out of stock

4

PLANE BEARING, CONNECTING ROD

5YU-11656-30-00

—
Out of stock

5

PISTON (STD)

5S7-11631-01-00

1
Out of stock

6

PISTON RING SET (STD)

5S7-11603-00-00

1
Out of stock

7

CIRCLIP

93450-22146-00

1
Out of stock

8

PIN, PISTON

5PS-11633-00-00

1
Out of stock
