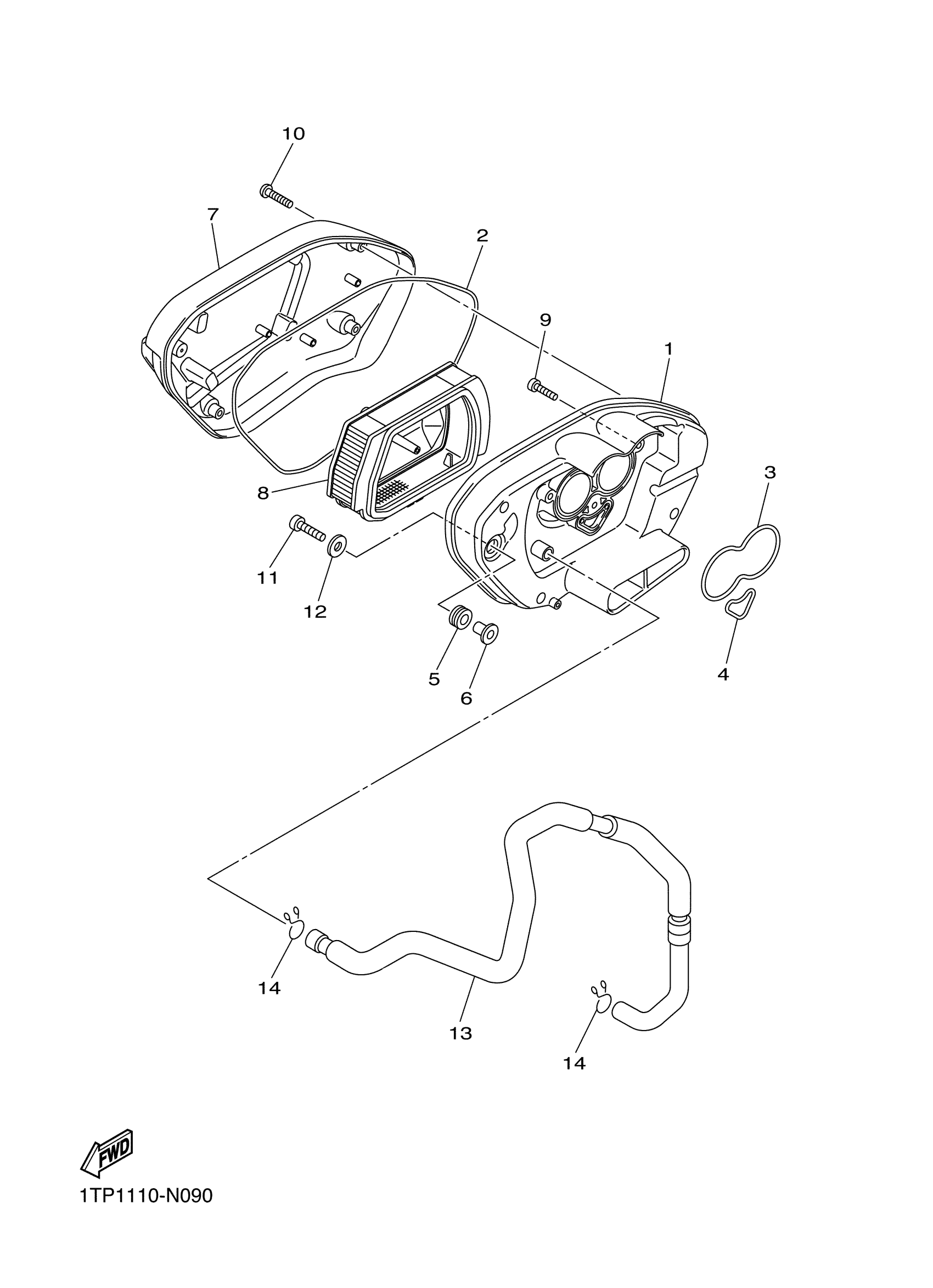

Yamaha XVS95CGY (BOLT R SPEC) 2DXG0 2016 INTAKE 2 Diagram

#

Description
Price

1

CASE, AIR CLEANER 1

1TP-14411-00-00

Unavailable

2

SEAL

1TP-14452-00-00

$15.32

3

SEAL

3D8-14457-00-00

$5.55

4

SEAL

3D8-14462-00-00

$5.55

5

GROMMET 839774310000

90480-14023-00

$4.34

6

COLLAR

90387-06158-00

$5.75

7

CAP ASSY, AIR CLEA

1XC-14402-00-00

$230.45

8

ELEMENT, AIR CLEANER

1TP-14451-00-00

$37.04

9

BOLT

91312-05025-00

$5.81

10

BOLT,HEX. SOCKET BUTTON

90111-05024-00

$3.33

11

BOLT,SOCKET

91317-06025-00

$1.91

12

WASHER PLATE 256216150000

90201-06062-00

$6.62

13

PIPE, BREATHER 1

1TP-11166-00-00

Unavailable

14

CLIP(62Y)

90467-15M14-00

$3.21
