2015 Yamaha Bolt R Spec (XVS95CFS) Valve Diagram

← All diagrams

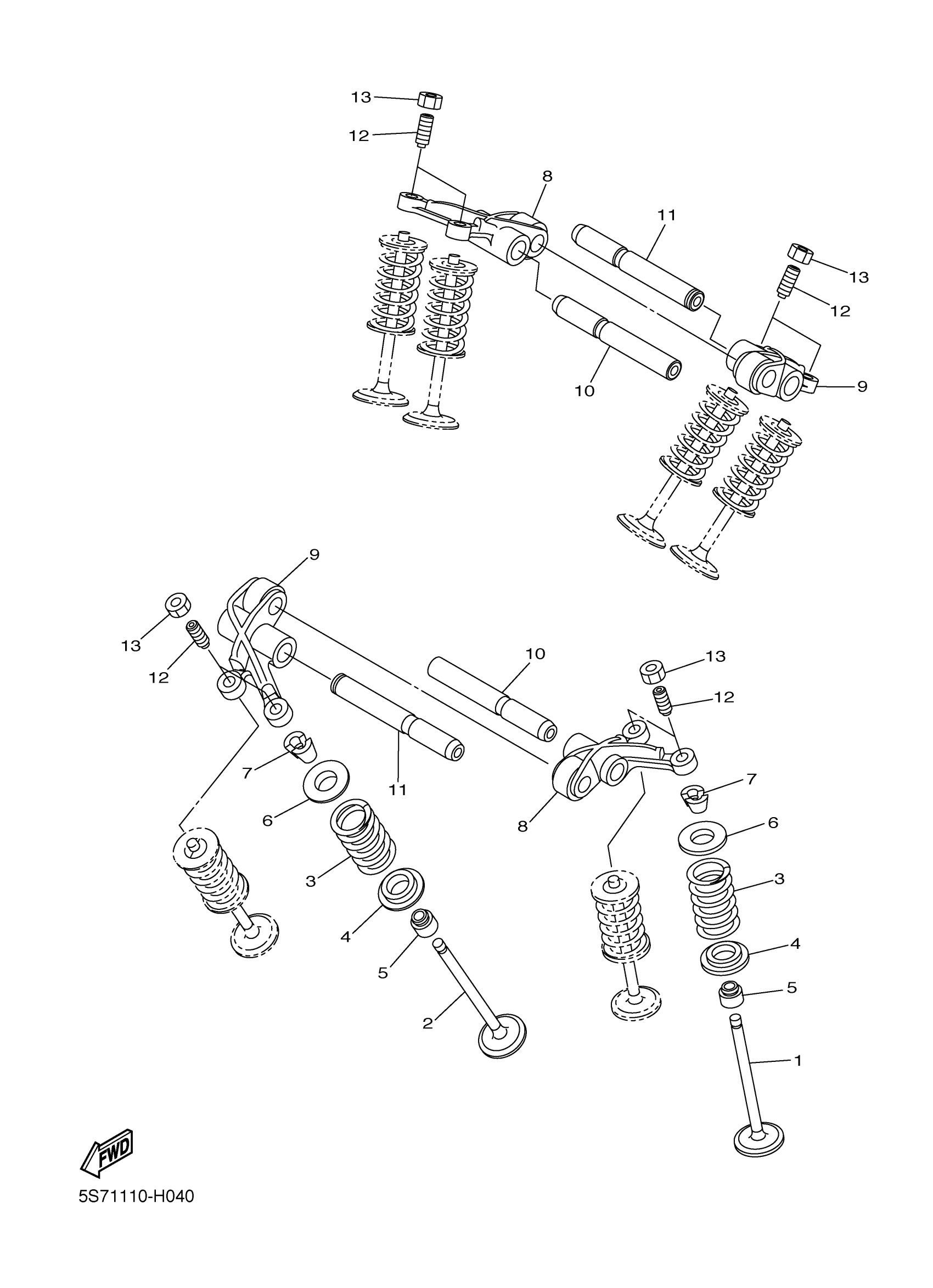

Find the part on the Valve diagram for your 2015 Yamaha Bolt R Spec (XVS95CFS), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Yamaha Bolt R Spec (XVS95CFS) Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

VALVE, INTAKE

5S7-12111-00-00

1

$32.35

In stock

2

VALVE, EXHAUST

5S7-12121-00-00

1

$41.17

In stock

3

SPRING, VALVE INNER

5S7-12113-00-00

1

$5.77

In stock

4

SEAT, VALVE SPRING

3YF-12116-00-00

1
Out of stock

5

SEAL, VALVE STEM

5H0-12119-00-00

1

$14.72

In stock

6

RETAINER, VALVE SPRING

3YF-12117-01-00

1

$13.06

In stock

7

COTTER, VALVE

4G0-12118-00-00

1

$6.72

In stock

8

ARM, VALVE ROCKER

5S7-12151-00-00

—

$89.88

In stock

9

ARM, VALVE ROCKER 2

5S7-12161-00-00

—

$84.63

In stock

10

SHAFT, ROCKER

5S7-12146-00-00

1

$29.49

In stock

11

SHAFT, ROCKER 2

5S7-12156-00-00

1

$30.71

In stock

12

SCREW, VALVE ADJUSTING

4X7-12159-00-00

—

$7.49

In stock

13

NUT, HEXAGON

90170-08173-00

1

$6.71

In stock
